Periodic Energy Decompositon Analysis - PEDA

This tutorial will teach you how to:

  • perform a periodic energy decomposition analysis (PEDA) for extended systems with the BAND-GUI
  • where to look for the results

Step 1: Start ADFinput

Start ADFinput in a clean directory. (according to Step 1 of the With a Grain of Salt Tutorial)

/scm-uploads/doc.2016/Tutorials/_images/adfinput_BAND_Main.png

Step 2: Set up the system - CO@MgO(sqrt(2)xsqrt(2))

You can copy-paste the following information into the GUI directly.

Mg       0.59538358       0.59538226       0.20750000
Mg       2.08384335      -0.89307752      -1.89750000
Mg      -2.38153597       0.59538226       0.20750000
Mg      -0.89307620      -0.89307752      -1.89750000
O        2.08384335      -0.89307752       0.20750000
O       -0.89307620      -0.89307752       0.20750000
O        0.59538358       0.59538226      -1.89750000
O       -2.38153597       0.59538226      -1.89750000
O        0.59538553       0.59539200       3.95250000
C        0.59538493       0.59538903       2.80750000
VEC1     2.97691955      -2.97691955       0.00000000
VEC2     2.97691955       2.97691955       0.00000000
/scm-uploads/doc.2016/Tutorials/_images/adfinput_BAND_Main_MgO+CO1.png

Step 3: Running the PEDA calculation

Step 3a: Setting up the fragments

To run the PEDA for the adsorption of CO on MgO, you have to define the fragments. Therefore switch to Regions menu.

Panel bar Model → Regions
  • Select the CO fragment and add a new region by clicking on the ‘+’ button (or Ctrl+G).
  • Select the MgO fragment and add a new region by clicking on the ‘+’ button (or Ctrl+G).
  • You may want to rename “Region_1” to CO and “Region_2” to MgO. (optional)
/scm-uploads/doc.2016/Tutorials/_images/adfinput_BAND_Model_Regions_MgO+CO4.png

Step 3b: Details for the calculation

Go to the Main menu,

Panel bar Main

and change the calculation setup (XC functional, basis set, frozen core and numerical quality) according to the following picture.

/scm-uploads/doc.2016/Tutorials/_images/adfinput_BAND_Main_MgO+CO3.png

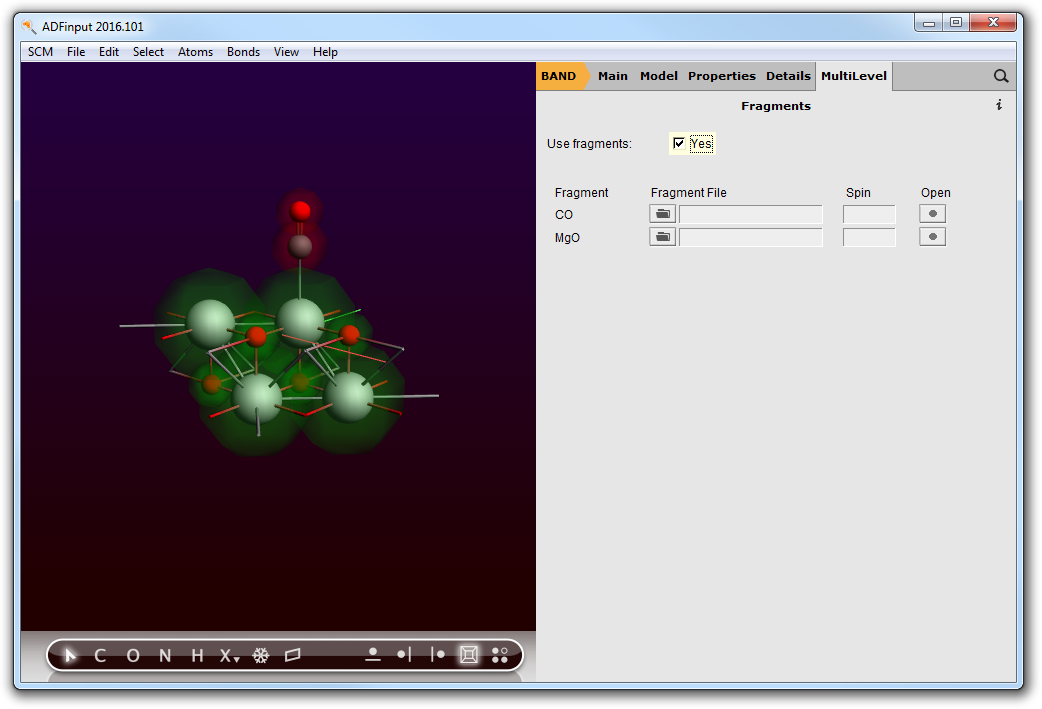

Step 3c: Enabling the PEDA

Go to the Fragments menu,

Panel bar MultiLevel → Fragments

and check the “Use fragments” box. This will trigger the PEDA.

/scm-uploads/doc.2016/Tutorials/_images/adfinput_BAND_MultiLevel_Fragments_MgO+CO2.png

Step 3d: Save and run the calculation

Now you can save and run the calculation.

File → Save, give it a name and press Save.

File → Run

Step 4: Checking the results

After the calculations of the fragments and the PEDA finished you can look for the PEDA results. Therefore, open the “Output” using the SCM dropdown menu.

SCM → Output

You can jump to the ‘PEDA Energy Terms’ via the corresponding button in the ‘Properties’ dropdown menu.

Properties → PEDA Energy Terms

Reference results:

/scm-uploads/doc.2016/Tutorials/_images/Output_MgO+CO2.png

In addition to these energy terms the summed preparation energies of the fragments and the (negative) bond dissociation energy are usually given. Therefore you have to calculate the energy difference between the electronically and structurally relaxed fragments (which can be accessed by a geometry optimization of the separated fragments) and the promoted fragments (which are already calculated and used for the PEDA). Adding this energy difference, which is equal to the preparation energy, to the interaction energy will give you the negative bond dissociation energy.
