3.1. Settings¶

3.1.1. Tree-like structure¶

The Settings class is based on the regular Python dictionary (built-in class dict, tutorial can be found here) and in many aspects works just like it:

>>> s = Settings()
>>> s['abc'] = 283
>>> s[147147] = 'some string'
>>> print(s['abc'])
283
>>> del s[147147]

The main difference is that data in Settings can be stored in multilevel fashion, whereas an ordinary dictionary is just a flat structure of key-value pairs. That means a sequence of keys can be used to store a value. In the example below s['a'] is itself a Settings instance with two key-value pairs inside:

>>> s = Settings()
>>> s['a']['b'] = 'AB'
>>> s['a']['c'] = 'AC'
>>> s['x']['y'] = 10
>>> s['x']['z'] = 13
>>> s['x']['foo'][123] = 'even deeper'
>>> s['x']['foo']['bar'] = 183
>>> print(s)
a:
  b:    AB
  c:    AC
x:
  foo:
      123:  even deeper
      bar:  183
  y:    10
  z:    13
>>> print(s['x'])
foo:
    123:    even deeper
    bar:    183
y:  10
z:  13

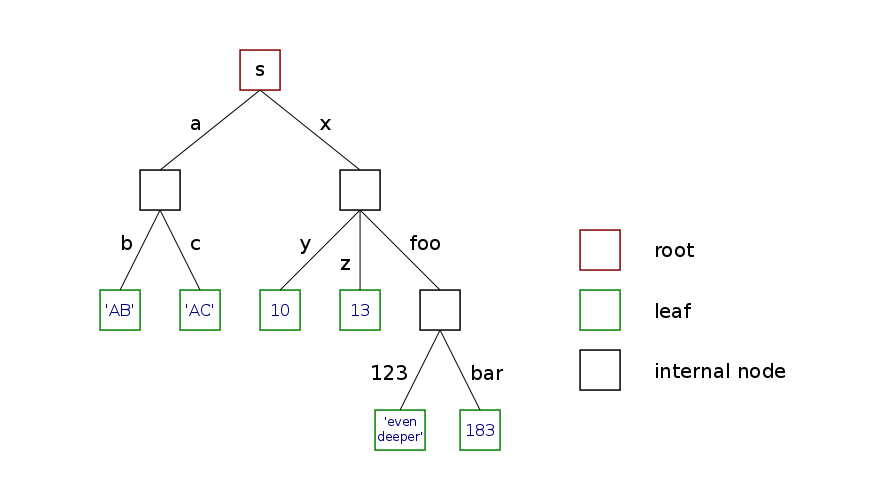

So for each key the value can be either a “proper value” (string, number, list etc.) or another Settings instance that creates a new level in the data hierarchy. That way similar information can be arranged in subgroups that can be copied, moved and updated together. It is convenient to think of a Settings object as a tree. The root of the tree is the top instance (s in the above example), “proper values” are stored in leaves (a leaf is a childless node) and internal nodes correspond to nested Settings instances (we will call them branches). Tree representation of s from the example above is illustrated on the following picture:

Tree-like structure could also be achieved with regular dictionaries, but in a rather cumbersome way:

>>> d = dict()
>>> d['a'] = dict()
>>> d['a']['b'] = dict()
>>> d['a']['b']['c'] = dict()
>>> d['a']['b']['c']['d'] = 'ABCD'
===========================
>>> s = Settings()
>>> s['a']['b']['c']['d'] = 'ABCD'

In the last line of the above example all intermediate Settings instances are created and inserted automatically. Such a behavior, however, has some downsides – every time you request a key that is not present in a particular Settings instance (for example as a result of a typo), a new empty instance is created and inserted as a value of this key. This is different from dictionaries where exception is raised in such a case:

>>> d = dict()
>>> d['foo'] = 'bar'
>>> x = d['fo']
KeyError: 'fo'
===========================
>>> s = Settings()
>>> s['foo'] = 'bar'
>>> x = s['fo']

>>> print(s)
fo:            #the value here is an empty Settings instance
foo:    bar

3.1.2. Dot notation¶

To avoid inconvenient punctuation, keys stored in Settings can be accessed using the dot notation in addition to the usual bracket notation. In other words s.abc works as a shortcut for s['abc']. Both notations can be used interchangeably:

>>> s.a.b = 'AB'
>>> s['a'].c = 'AC'
>>> s.x['y'] = 10
>>> s['x']['z'] = 13
>>> s['x'].foo[123] = 'even deeper'
>>> s.x.foo.bar = 183
>>> print(s)
a:
  b:    AB
  c:    AC
x:
  foo:
      123:  even deeper
      bar:  183
  y:    10
  z:    13

Due to the internal limitation of the Python syntax parser, keys other than single word strings cannot work with that shortcut, for example:

>>> s.123.b.c = 12
SyntaxError: invalid syntax
>>> s.q we.r.t.y = 'aaa'
SyntaxError: invalid syntax
>>> s.5fr = True
SyntaxError: invalid syntax

In those cases one has to use the regular bracket notation:

>>> s[123].b.c = 12
>>> s['q we'].r.t.y = 'aaa'
>>> s['5fr'] = True

The dot shortcut does not work for keys which begin and end with two (or more) underscores (like __key__). This is done on purpose to ensure that Python magic methods work properly.

3.1.3. Case sensitivity¶

Settings, just like regular Python dictionaries, are case sensitive:

>>> s = Settings()
>>> s.foo = 'bar'
>>> s.FOO = 283
>>> print(s)
FOO:    283
foo:    bar

This is good, since the data stored in Settings (for example, input keywords) is, in general, case sensitive. However, sometimes this becomes a problem. For example, imagine you’re writing an interface to some external binary which is case-insensitive and requires key Charge in the input. You want to check if the user has already placed such a key herself, or if it needs to be added by your code:

>>> s = Settings()
>>> s.input.Charge = 1
...
>>> if 'charge' not in s.input:
>>>     s.input.charge = 0
...
>>> print(s)
input:
      Charge:   1
      charge:   0

To help in such situations, the Settings class comes together with a special “ignore-case string” ig. ig works and behaves exactly like the regular Python string str (that means ig is, in fact, case sensitive), but when an instance of ig is used as a Settings key, the case is ignored:

>>> s = Settings()
>>> s.Charge = 1
>>> 'charge' in s
False
>>> ig('charge') in s
True
>>> s[ig('charge')] = -1
>>> print(s)
Charge:     -1
>>> x = s[ig('chaRGE')]
>>> print(x)
-1
>>> s.frozen = [3,6]
>>> s[ig('FROZEN')].append(5)
>>> print(s)
Charge:     -1
frozen:     [3,6,5]

3.1.4. Global settings¶

Global settings are stored in a public Settings instance named config. They contain variables adjusting general behavior of PLAMS as well as default settings for various objects (jobs, job manager etc.) The config instance is created during initialization of PLAMS environment (see init()) and populated by executing plams_defaults file. It is visible in the main PLAMS namespace so every time you wish to adjust some settings you can simply type in your script, for example:

config.job.pickle = False
config.sleepstep = 10

These changes are going to affect only the script they are called from. If you wish to permanently change some setting for all PLAMS executions, you can do it by editing plams_defaults, which is located in the root folder of the package ($ADFHOME/scripting/scm/plams).

3.1.5. API¶

class Settings(*args, **kwargs)[source]¶

Automatic multi-level dictionary. Subclass of built-in class dict.

The shortcut dot notation (s.basis instead of s['basis']) can be used for keys that:

• are strings
• don’t contain whitespaces
• begin with a letter or an underscore
• don’t both begin and end with two or more underscores.

Iteration follows lexicographical order (via sorted() function)

Methods for displaying content (__str__() and __repr__()) are overridden to recursively show nested instances in easy-readable format.

Regular dictionaries (also multi-level ones) used as values (or passed to the constructor) are automatically transformed to Settings instances:

>>> s = Settings({'a': {1: 'a1', 2: 'a2'}, 'b': {1: 'b1', 2: 'b2'}})
>>> s.a[3] = {'x': {12: 'q', 34: 'w'}, 'y': 7}
>>> print(s)
a:
  1:    a1
  2:    a2
  3:
    x:
      12:   q
      34:   w
    y:  7
b:
  1:    b1
  2:    b2

copy()[source]¶

Return a new instance that is a copy of this one. Nested Settings instances are copied recursively, not linked.

In practice this method works as a shallow copy: all “proper values” (leaf nodes) in the returned copy point to the same objects as the original instance (unless they are immutable, like int or tuple). However, nested Settings instances (internal nodes) are copied in a deep-copy fashion. In other words, copying a Settings instance creates a brand new “tree skeleton” and populates its leaf nodes with values taken directly from the original instance.

This behavior is illustrated by the following example:

>>> s = Settings()
>>> s.a = 'string'
>>> s.b = ['l','i','s','t']
>>> s.x.y = 12
>>> s.x.z = {'s','e','t'}
>>> c = s.copy()
>>> s.a += 'word'
>>> s.b += [3]
>>> s.x.u = 'new'
>>> s.x.y += 10
>>> s.x.z.add(1)
>>> print(c)
a:  string
b:  ['l', 'i', 's', 't', 3]
x:
  y:    12
  z:    set([1, 's', 'e', 't'])
>>> print(s)
a:  stringword
b:  ['l', 'i', 's', 't', 3]
x:
  u:    new
  y:    22
  z:    set([1, 's', 'e', 't'])

This method is also used when copy.copy() is called.

soft_update(other)[source]¶

Update this instance with data from other, but do not overwrite existing keys. Nested Settings instances are soft-updated recursively.

In the following example s and o are previously prepared Settings instances:

>>> print(s)
a:  AA
b:  BB
x:
  y1:   XY1
  y2:   XY2
>>> print(o)
a:  O_AA
c:  O_CC
x:
  y1:   O_XY1
  y3:   O_XY3
>>> s.soft_update(o)
>>> print(s)
a:  AA        #original value s.a not overwritten by o.a
b:  BB
c:  O_CC
x:
  y1:   XY1   #original value s.x.y1 not overwritten by o.x.y1
  y2:   XY2
  y3:   O_XY3

Other can also be a regular dictionary. Of course in that case only top level keys are updated.

Shortcut A += B can be used instead of A.soft_update(B).

update(other)[source]¶

Update this instance with data from other, overwriting existing keys. Nested Settings instances are updated recursively.

In the following example s and o are previously prepared Settings instances:

>>> print(s)
a:  AA
b:  BB
x:
  y1:   XY1
  y2:   XY2
>>> print(o)
a:  O_AA
c:  O_CC
x:
  y1:   O_XY1
  y3:   O_XY3
>>> s.update(o)
>>> print(s)
a:  O_AA        #original value s.a overwritten by o.a
b:  BB
c:  O_CC
x:
  y1:   O_XY1   #original value s.x.y1 overwritten by o.x.y1
  y2:   XY2
  y3:   O_XY3

Other can also be a regular dictionary. Of course in that case only top level keys are updated.

merge(other)[source]¶

Return new instance of Settings that is a copy of this instance soft-updated with other.

Shortcut A + B can be used instead of A.merge(B).

find_case(key)[source]¶

Check if this instance contains a key consisting of the same letters as key, but possibly with different case. If found, return such a key. If not, return key.

When Settings are used in case-insensitive contexts, this helps preventing multiple occurences of the same key with different case:

>>> s = Settings()
>>> s.system.key1 = 'value1'
>>> s.System.key2 = 'value2'
>>> print(s)
System:
    key2:    value2
system:
    key1:    value1

>>> t = Settings()
>>> t.system.key1 = 'value1'
>>> t[t.find_case('System')].key2 = 'value2'
>>> print(t)
system:
    key1:    value1
    key2:    value2

as_dict()[source]¶

Return a copy of this instance with all Settings replaced by regular Python dictionaries.

__iter__()[source]¶

Iteration through keys follows lexicographical order.

__missing__(name)[source]¶

When requested key is not present, add it with an empty Settings instance as a value.

This method is essential for automatic insertions in deeper levels. Without it things like:

>>> s = Settings()
>>> s.a.b.c = 12

will not work.

__contains__(name)[source]¶

Like regular __contains`__, but if the key is an “ig” string, ignore the case.

__getitem__(name)[source]¶

Like regular __getitem__, but if the key is an “ig” string, ignore the case.

__setitem__(name, value)[source]¶

Like regular __setitem__, but if the value is a dict, convert it to Settings.

__delitem__(name)[source]¶

Like regular __detitem__, but if the key is an “ig” string, ignore the case.

__getattr__(name)[source]¶

If name is not a magic method, redirect it to __getitem__.

__setattr__(name, value)[source]¶

If name is not a magic method, redirect it to __setitem__.

__delattr__(name)[source]¶

If name is not a magic method, redirect it to __delitem__.

_str(indent)[source]¶

Print contents with indent spaces of indentation. Recursively used for printing nested Settings instances with proper indentation.
