COSMO result files¶

Step 1: Start AMSinput¶

For this tutorial we prefer to work in a separate directory, for example a directory called Tutorial, as was explained in the Getting started Tutorial.

Start AMSjobs (in your home directory), and move to the Tutorial directory:

Next start AMSinput using the SCM menu.

Step 2: Create the molecule¶

First we construct a water molecule, and preoptimize its geometry:

Select the O-tool by clicking on the button with the ‘O’

Click somewhere in the drawing area to create an oxygen atom

Select the select-tool by clicking on the button with the arrow

Click once in empty space so nothing is selected

Select Atoms → Add Hydrogen

Click the preoptimizer button

Symmetrize the system by clicking on

Note that ADF does not symmetrize molecular coordinates by default anymore, which it used to do (ADF<=2019). By symmetrizing the system ADF will use symmetry. Your water molecule should look something like this:

Step 3: ADF COSMO result file¶

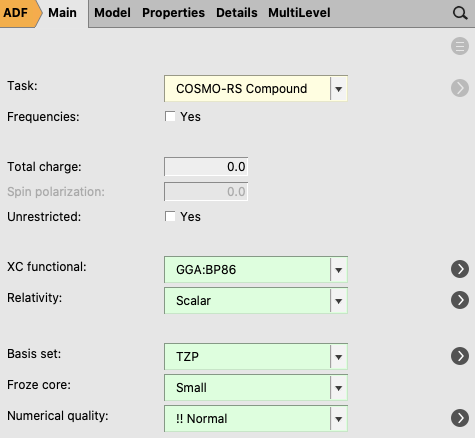

The next step is to optimize the gas geometry using ADF, and perform the ADF COSMO calculation at the optimized gas phase geometry, using Task: COSMO-RS Compound. Note that this task is now at a different location than in ADF2019.

For your information, the proper settings for the gas phase geometry optimization are: the Becke Perdew exchange correlation functional (GGA:BP86), use of the scalar relativistic ZORA Hamiltonian, a TZP small core basis set (for Iodine a TZ2P small core basis set), and an integration accuracy with a good quality. Like for Iodine for heavier elements than Krypton, a TZ2P small core basis set is recommended. Note that these settings were used for the optimization of the COSMO-RS parameters.

With the proper options selected, now run ADF:

Now ADF will start automatically, and you can follow the calculation: AMSjobs will show the progress of the calculation with the last few lines of the logfile.

Now the geometry of the water molecule is the optimized one, and the ADF COSMO calculation has been performed. The result file water.coskf, which is an ADF COSMO result file, can be used as input for a COSMO-RS calculation.

Note that a .coskf file is not a complete .rkf file. For example, if one has such a .coskf file, only the COSMO surface charge density can be viewed with AMSview. Thus a .coskf file is mostly useful for COSMO-RS calculations.

More details on parameters used in the COSMO calculation can be found in the run script: Details → Run Script. See also the COSMO-RS manual.

Step 4: Lowest Conformer¶

In standard COSMO-RS theory one uses one COSMO result file for one molecule and use the conformer with the lowest energy. Note, however, that sometimes molecules behave in solution in ways that are not accurately captured by the “one-molecule-one-structure” paradigm of standard COSMO-RS theory, see the tutorial COSMO-RS with multi-species components, where multiple conformers, multimers, dissociated and associated molecules are discussed.

The AMS-GUI does have some basic support for handling conformers. This includes the generation of conformers and the refinement of conformers using different theoretical methods, see the AMS-GUI tutorial on Conformers for more details. In the step in this tutorial that does a refinement of the structures of the conformers one can use ADF with the Task ‘COSMO-RS Compound’. Next one can select the conformer with the lowest energy to be used as an ADF COSMO result file.

Note that this step does not involve a calculation, but only shows one way to find the lowest conformer.

Step 5: Polymers with ADF¶

The AMS-GUI supports the making of a polymer. However, the calculation of a full polymer is very expensive. Instead of this very expensive calculation, here an “average monomer” COSMO result file is calculated. The full polymer result could then be calculated by multiplying the “average monomer” result by a factor equal to the number of repeat units in the polymer.

In this step ADF is used to generate a COSMO result file for a polymer. One can also use the approximate, but much faster, FastSigma method, described in step 7.

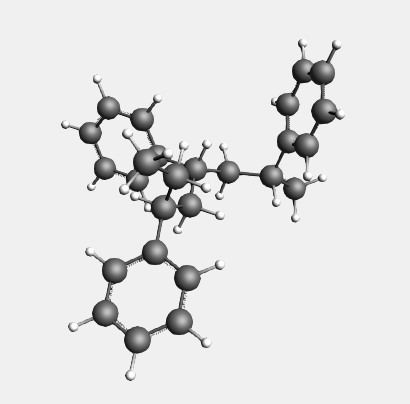

In practice a trimer is calculated from 3 units of the monomer, in which the trimer is capped with 2 methyl groups. Next an ADF COSMO result file is generated, in which only the COSMO charges of the center monomer will be used in the COSMO-RS calculations.

This will create a Polystyrene monomer. The 2 dummy atoms will later be replaced with 2 other monomers to form a Polystyrene trimer.

Next we will not use the Polymer builder window, but instead use a specialized button that generates a trimer, adds 2 methyls as capping groups, and selects the center monomer atoms as so called ‘COSKF atoms’.

If one would select File → Run an “average monomer” COSMO result file would be created, which an be used for polymer calculations. The calculation can take up quite some time, therefore we skip this part in this step.

Step 6: MOPAC COSMO result file¶

Note this step is presented here only for completeness. One can skip this step, since we do not recommend to use MOPAC to generate COSMO result files.

MOPAC is a faster method than ADF for the generation of COSMO result files. However, we recommend to use the FastSigma program described in the next step if you want get an estimate of a COSMO result file very quickly and which has a better quality.

A MOPAC COSMO result file can be created in almost the same way as an ADF COSMO result file. We will change the program from ADF to MOPAC, and select the COSMO solvation method.

Select the SCM → New input menu command.

Create a water molecule

Select →

Select Model → Solvation

Tick the Use COSMO checkbox

Select CRS from the Solvent dropdown menu

For sake of clarity we will save the COSMO calculation under a different name, and run the calculation

After the calculation has finished the file water_mopac.results/mopac.coskf, which is a MOPAC COSMO result file, can be used as input for a COSMO-RS calculation.

Note that MOPAC is a semi-empirical quantum chemistry program, whereas ADF is based on density functional theory (DFT). Thus the MOPAC COSMO result files will not be of the same quality as the ADF COSMO result files.

Step 7: FastSigma: estimating sigma profiles for use with COSMO-RS/-SAC¶

FastSigma is a program that estimates information in a COSMO result file without doing an expensive DFT calculation. Practically speaking, this that in the timeframe of milliseconds, FastSigma can estimate a sigma profile and other required molecular descriptors used to perform COSMO-RS/-SAC calculations.

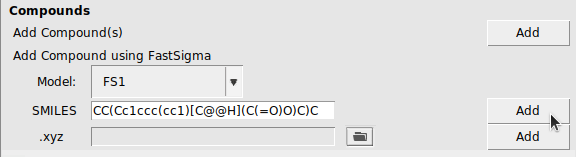

In the GUI, FastSigma can be used for compounds with a SMILES string or an .xyz file. In this example, we use Ibuprofen, which is represented in the SMILES string CC(Cc1ccc(cc1)[C@@H](C(=O)O)C)C.

Note that for a polymer one would need as input a so called CurlySMILES string, which for example, for Polystyrene is C{-}C{n+}(c1ccccc1), see the COSMO-RS polymers tutorial for more details.

In the right part of the COSMO-RS GUI window one should see something like:

FastSigma does not create a COSMO surface, but creates a so called sigma-profile, which can be used in COSMO-RS calculations. The parameters in FastSigma are fitted to COSMO-RS sigma-profiles of organic closed shell neutral molecules. The created sigma-profile can not be used in COSMO-SAC calculations. The created file contains a SMILES string, thus it can be used in UNIFAC calculations. Not recommended to be used for radicals or charged molecules.

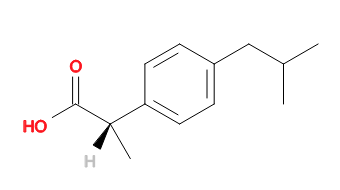

One can visualize the molecule in 2D (a .html file will be created) with

Openbabel is used to translate the SMILES string into a picture.
