Nudged Elastic Band (NEB)¶

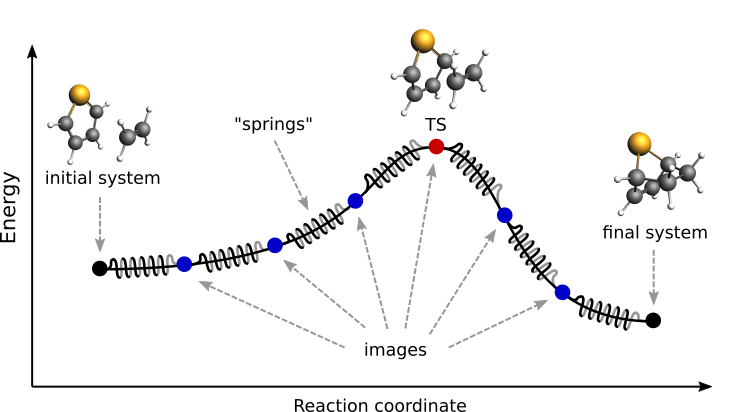

Input¶

A NEB calculation in AMS is triggered by setting the Task to NEB:

Task NEB

The NEB method requires two or more input systems. The first, unnamed system is used as the initial system and the system called final is used as a final system. These two systems are mandatory, unless the LoadPath feature is used, see below. This is an example of system-definitions for a HCN isomerization reaction:

Task NEB

# This is the initial system:
System
   Atoms
      C   0.0000   0.0000   0.0000
      N   1.1800   0.0000   0.0000
      H   2.1960   0.0000   0.0000
   End
End

# This is the final system (note the header 'final' in the next line):
System final
   Atoms
      C   0.0000   0.0000   0.0000
      N   1.1630   0.0000   0.0000
      H  -1.0780   0.0000   0.0000
   End
End

Optionally, more systems can be used to provide a better approximation for the reaction path. An intermediate system can have any name, but the name determines its position with respect to others. The intermediate systems are ordered lexicographically using their (case-sensitive) names and then placed evenly in that order between the initial and the final states. After that, the spline interpolation between the geometries (including lattice parameters) will be used to generate the initial images. For example, if you call the intermediate systems a, b, and c then the initial NEB path will be constructed by interpolating along the initial-a-b-c-final chain. When providing more than two input systems it may be a good idea to optimize the end points in advance and set OptimizeEnds to False to prevent creating an unbalanced reaction path. The reason is that the interpolation is performed after the end points are optimized.

For molecular systems, the interpolation can be done either in the redundant internal or in the Cartesian coordinates. For periodic systems, the interpolation can only be done in the Cartesian coordinates.

When using only two systems (the initial and the final) for linear interpolation, AMS will may optionally apply a slightly modified version of the image dependent pair potential (IDPP) method described in [2], see PreOptimizeWithIDPP below. The differences with the original method are: (a) the initial structure of an image is obtained using interpolation in the redundant internal or Cartesian coordinates as described above, and (b) the weighting factor is using the target distance instead of the current one, which avoids putting too much weight on very short distances.

Note that not only the atomic coordinates, but also the lattice parameters and the charge (if non-zero) must be set for all input systems.

If you have run a PESScan calculation for the system and would like to do NEB, or would like to repeat NEB for it with a different number of images then you can use the LoadPath feature. You need to provide the file name from which to load the path using the File key. The program will load the last geometries for the path points found in the file and use them for interpolation. Note that this will replace both the initial and the final point. Neither the initial nor the final geometry needs to be present in the input in this case because, if present, they will be replaced.

You can choose to use only part of the path, for example if the the PESScan revealed more than one barrier or if its end points do not correspond to minima on the path. In such a case, a list of point to be included in the interpolation should be specified using the Points key. Remember that you can specify a list of integers as i:j, for example to include points 13 through 25 use Points 13:25.

Alternatively, you can choose to use arbitrary geometries from the History section of the ams.rkf file. In this case you can specify their indices in the Geometries key. When using the Geometries key, the ams.rkf does not have to come from a PESScan or an NEB calculation. It just needs to have the History section with some geometries. It may come, for example, from molecular dynamics.

NEB

LoadPath

Type:

Block

Description:

Provide details about the trajectory to get the initial NEB path from. PESScan and NEB trajectories are supported. Only the last geometry for each point on the trajectory is considered.

File

Type:

String

GUI name:

Initial path file

Description:

Provide an ams.rkf file to load the initial path from. All geometries of this calculation, including initial and final, will be taken from the History section of the file. Note that for a PESScan it should be a 1D path.

Geometries

Type:

Integer List

GUI name:

Raw geometry indices

Description:

Raw indices of the geometries from the History section. By default the last geometry of each path point is used.

Points

Type:

Integer List

GUI name:

Path points

Description:

By default the whole path is used, which may sometimes be not desirable. For example when a PESScan revealed multiple barriers. In this case one can specify indices of the path points to be used. The last geometry of the specified path point will be loaded.

All NEB-specific options are specified in the NEB input block:

NEB
   Climbing Yes/No
   ClimbingThreshold float
   Images integer
   InterpolateInternal Yes/No
   InterpolateShortest Yes/No
   Iterations integer
   Jacobian float
   LoadPath
      File string
      Geometries integer_list
      Points integer_list
   End
   MapAtomsToCell Yes/No
   OldTangent Yes/No
   OptimizeEnds Yes/No
   OptimizeLattice Yes/No
   Parallel
      nCoresPerGroup integer
      nGroups integer
      nNodesPerGroup integer
   End
   PreOptimizeWithIDPP Yes/No
   ReOptimizeEnds Yes/No
   Restart string
   Skewness float
   Spring float
End

All keys of the NEB block have reasonable defaults or are optional. Thus, in principle, the NEB block can be omitted altogether. These are the main options:

NEB

Images

Type:

Integer

Default value:

8

GUI name:

Number of images

Description:

Number of NEB images (not counting the chain ends). Using more images will result in a smoother reaction path and can help with convergence problems, but it will also increase the computation time.

Iterations

Type:

Integer

GUI name:

Maximum number of iterations

Description:

Maximum number of NEB iterations. The default value depends on the number of degrees of freedom (number of images, atoms, periodic dimensions).

Spring

Type:

Float

Default value:

1.0

Unit:

Hartree/Bohr^2

GUI name:

Spring value

Description:

Spring force constant in atomic units.

Skewness

Type:

Float

Default value:

1.0

GUI name:

Skewness

Description:

Degree of how much images are shifted towards or away from the TS, which may help tackle problems with a long reaction path (for example involving a loose adsorption complex) without needing too many images. A value greater than 1 will make sure that images are concentrated near the transition state. The optimal value depends on the path length, the number of images (larger [Skewness] may be needed for a longer path and fewer images). Technically [Skewness] is equal to the ratio between the optimized distances to the lower and the higher neighbor image on the path.

Climbing

Type:

Bool

Default value:

Yes

GUI name:

Climb highest image to TS

Description:

Use the climbing image algorithm to drive the highest image to the transition state.

ClimbingThreshold

Type:

Float

Default value:

0.0

Unit:

Hartree/Bohr

GUI name:

CI force threshold

Description:

Climbing image force threshold. If ClimbingThreshold > 0 and the max perpendicular force component is above the threshold then no climbing is performed at this step. This entry can be used to get a better approximation for the reaction path before starting the search for the transition state. A typical value is 0.01 Hartree/Bohr.

InterpolateInternal

Type:

Bool

Default value:

Yes

GUI name:

Interpolate in Internal coordinates

Description:

The initial NEB image geometries are calculated by interpolating between the initial and the final state. By default, for non-periodic systems the interpolation is performed in internal coordinates but the user can choose to do it in the Cartesian ones. For periodic systems the interpolation is always done in Cartesian coordinates. If PreOptimizeWithIDPP is set then the path may be further refined using the image-dependent pair potential (IDPP).

InterpolateShortest

Type:

Bool

Default value:

Yes

GUI name:

Interpolate across cell boundary

Description:

Allow interpolation across periodic cell boundaries. Set to false if an atom is intended to move more than half across the simulation box during reaction.

PreOptimizeWithIDPP

Type:

Bool

Default value:

No

GUI name:

Use IDPP

Description:

(Experimental) When there is only initial and final system available, the image-dependent pair potential (IDPP, doi: 10.1063/1.4878664) can be used to determine the initial NEB path by interpolating all interatomic distances between the two points and optimizing intermediate images towards them. The optimization starts from the geometries obtained using the selected interpolation options.

OptimizeEnds

Type:

Bool

Default value:

Yes

GUI name:

Optimize reactants/products

Description:

Start the NEB with optimization of the reactant and product geometries.

Restart

Type:

String

GUI name:

Restart from

Description:

Provide an ams.rkf file from a previous NEB calculation to restart from. It can be an unfinished NEB calculation or one performed with different engine parameters.

ReOptimizeEnds

Type:

Bool

Default value:

No

GUI name:

Re-optimize reactants/products

Description:

Re-optimize reactant and product geometries upon restart.

The following keys are related to solid-state NEB (SS-NEB):

NEB

OptimizeLattice

Type:

Bool

Default value:

No

GUI name:

Optimize lattice

Description:

Turn on the solid-state NEB (SS-NEB).

Jacobian

Type:

Float

GUI name:

Jacobian value

Description:

Scaling factor used to convert the lattice strain to a NEB coordinate value. Default value: sqrt(N)*(V/N)^(1/d), where V - lattice volume (area for 2D, length for 1D), N - number of atoms, and d - number of periodic dimensions.

MapAtomsToCell

Type:

Bool

Default value:

Yes

GUI name:

Map atoms to cell

Description:

Translate atoms to the [-0.5,0.5] cell before every step. This option cannot be disabled for SS-NEB.

At each iteration, the images may be computed in parallel. The parallel execution is normally configured completely automatically, but users can override the automatic parallelization using the keys in the Parallel block.

NEB

Parallel

Type:

Block

Description:

Options for double parallelization, which allows to split the available processor cores into groups working through all the available tasks in parallel, resulting in a better parallel performance. The keys in this block determine how to split the available processor cores into groups working in parallel.

nCoresPerGroup

Type:

Integer

GUI name:

Cores per group

Description:

Number of cores in each working group.

nGroups

Type:

Integer

GUI name:

Number of groups

Description:

Total number of processor groups. This is the number of tasks that will be executed in parallel.

nNodesPerGroup

Type:

Integer

GUI name:

Nodes per group

Description:

Number of nodes in each group. This option should only be used on homogeneous compute clusters, where all used compute nodes have the same number of processor cores.

The following keys modify other aspects of the NEB and should, in principle, be left to their defaults:

NEB

OldTangent

Type:

Bool

Default value:

No

GUI name:

Use old tangent

Description:

Turn on the old central difference tangent.

Frozen atom constraints¶

It is possible to perform NEB with part of the system frozen, using any of the following keys of the Constraints block or a combination thereof:

Constraints

Atom

Type:

Integer

Recurring:

True

Description:

Fix the position of an atom. Just one integer referring to the index of the atom in the [System%Atoms] block.

AtomList

Type:

Integer List

Recurring:

True

Description:

Fix positions of the specified atoms. A list of integers referring to indices of atoms in the [System%Atoms] block.

FixedRegion

Type:

String

Recurring:

True

Description:

Fix positions of all atoms in a region.

Note: the frozen atom constraints will be enforced both during the geometry optimizations of the initial and final systems and during the NEB optimization.

Optimizations and convergence criteria¶

The NEB path is optimized using a limited-memory BFGS (l-BFGS) method where the system being optimized is a union of all NEB images with their respective molecular and spring forces.

The NEB convergence thresholds are defined in the GeometryOptimization%Convergence block. NEB is considered converged when the following criteria are satisfied:

• the change in the highest image energy must be less than [GeometryOptimization%Convergence%Energy]

• the max atomic force component for the highest image must be less than [GeometryOptimization%Convergence%Gradients]

• the max atomic force component for all other images must be less than ten times the [GeometryOptimization%Convergence%Gradients] value.

If the optimization of the initial NEB end point fails to converge, you can try using the FIRE optimization method.

Output¶

Results are printed to the text output and stored in the binary result file ‘ams.rkf’. In the ‘ams.rkf’ file, NEB calculation results are stored in the History section just like in a normal geometry optimization. The NEB section of the RKF file contains additional, NEB-specific, information.

The NEB reaction path can be visualized using the AMSmovie GUI module.

Troubleshooting¶

• In case the geometry optimization of the initial and final systems fails: try using the FIRE optimization method

• In case the optimization of the NEB path does not converge:

  • make sure that the order in which the atoms are defined is consistent between the initial and final systems (see the important note in the NEB input section);

  • try increasing the number of NEB images;

  • try tweaking the TrustRadius or TrialStep options (see Limited-memory BFGS) ;

  • try specifying one or more intermediate systems.
