Charge Displacement

The Charge-Displacement (CD) analysis is a simple method able of analyzing and quantifying the amount of charge transfer that occurs upon a bond formation between two interacting fragments. This tutorial shows three different examples how to calculate the Charge-Displacement function.

The CD function Δq(z) is defined as the partial integration along a chosen axis, z, of the electron density rearrangement Δρ(x,y,z’) taking place upon the bond formation:

\[\Delta q(z) = \int_{-\infty}^\infty dx \int_{-\infty}^\infty dy \int_{-\infty}^z dz' \Delta \rho (x,y,z')\]

It can be also used in combination with the NOCV theory (where the electron density rearrangement is defined with respect to the orthonormalized non-interacting fragments). More information about Natural Orbitals for Chemical Valence can be found at ETS-NOCV and in the EDA-NOCV tutorial. In this case the deformation density can be expressed as a sum of contributions (Δρk) defined by the NOCV pairs of complementary eigenfunctions (Ψ-k and Ψk) corresponding to eigenvalues -ν-k and νk with the same absolute value but opposite sign:

\[\Delta \rho_k(z) = v_k ( -| \Psi _{-k}|^2 + | \Psi _{+k}|^2 )\]

and the associated CD function (NOCV-CD) is simply defined as following:

\[\Delta q_k(z) = \int_{-\infty}^\infty dx \int_{-\infty}^\infty dy \int_{-\infty}^z dz' \Delta \rho_k (x,y,z')\]

This tutorial shows how to build the chemical integrands for evaluating the CD function in three different relevant examples:

  1. Quantifying the CT contribution in closed-shell interacting fragments: case of noble metal-noble gas interaction in the Xe-AuF complex. [1]

  2. Quantifying of the Dewar-Chatt-Duncanson bonding components (σ-donation and π-backdonation) in transition metal complex applying the CD function in combination of the NOCV theory (NOCV-CD). [2]

  3. Application to open-shell systems to reveal competing pathways of proton-coupled electron transfer in oxidation catalysis (hydrogen-atom transfer, concerted proton-coupled electron transfer). [3]

In all cases the basic idea is to evaluate the different integrands (Δρ, Δρk or Δρα/β) using densf or directly from AMS-GUI which allow for their efficient mapping of a grid (CUBE format).

The CD function is evaluated numerically on the grid. This requires that you first download the PYCUBESCD suite of programs which is freely available (LGPL-3.0 License at GitHub).

Case 1: CT in closed-shell interacting fragments: Xe—AuF

The molecular structures needed for this tutorial are given here. The molecular structures are properly aligned with the molecular axis along the z-axis. In general, one should optimize the structures first and align with the z-axis coinciding with the direction chosen for evaluating the CD function.

Note

The alignment is important. The z-axis defines the axis on which is performed the partial integration for evaluating the CD function. The fragments (Xe and AuF) have the geometry they possess within the complex.

1. Fragment Calculation

At first, a fragment calculation must be performed. The following steps from the Fragment Analysis tutorial can be followed. A script including the fragment calculation (step 1) and step 2 will be provided in step 2.

Start AMSinput and insert the Xe-AuF structure.
In the Main ADF Panel, select the Single Point task
Select the GGA:BLYP XC functional
Make sure the Relativity is set at Scalar
Select a TZ2P Basis set, a Small Frozen core
Select a Good Numerical quality
In the Panel bar, select Model → Regions
Select Xe and click the AddButton to add it as region
Select the Au and F and add them as a second region
In the Panel bar, select MultiLevel → Fragments
Check the Use fragment box
Save and run the calculation

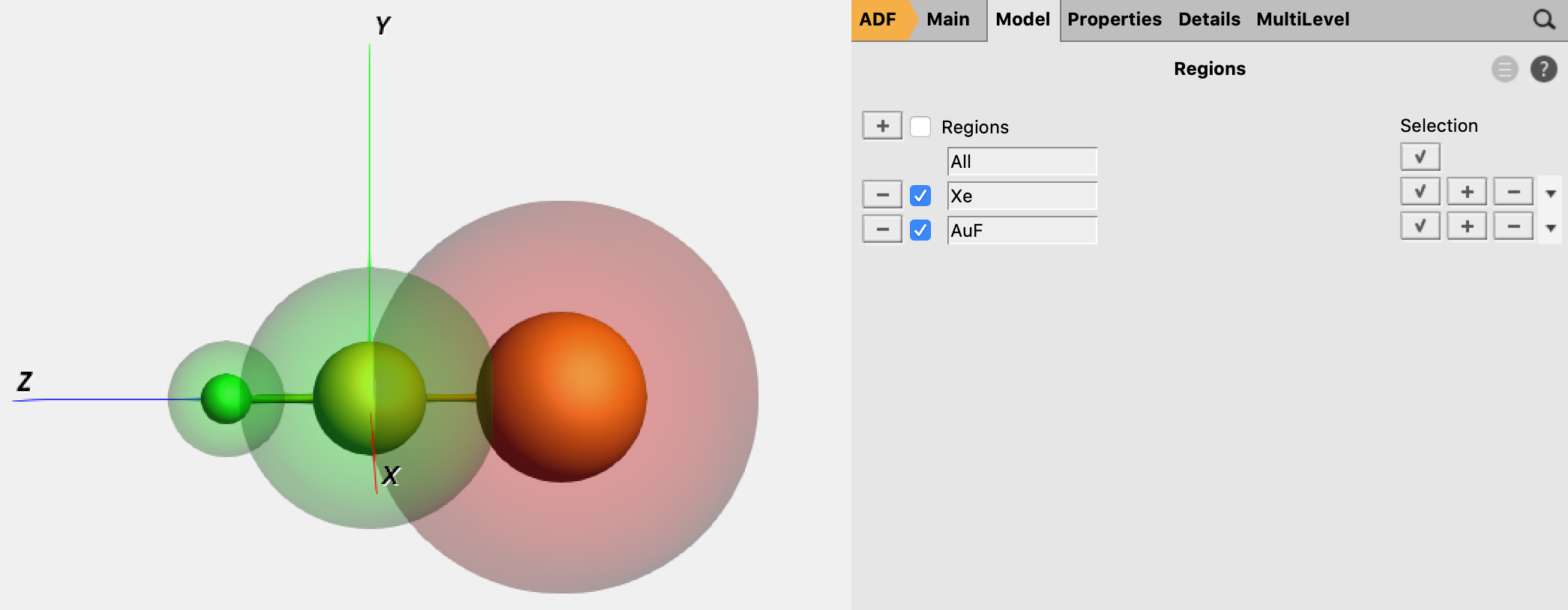

/scm-uploads/doc.trunk/Tutorials/_images/FragmentCalc.png

The .rkf file of the final fragment analysis (the adf.rkf in the XeAuF.results folder) is needed in the following step.

2. Generate CD function

The densf program must be used, which is an auxiliary program distributed with ADF suite. See the documentation of Densf: Volume Maps to generate a numerical representation of the electron densities associated with the XeAuF complex and the sum of the isolated Xe and AuF fragments. Herein, details for the definition of the grid can be found. We will map these quantities in the CUBE format. The only information necessary from the previous fragment calculation (Step 1) is the rkf file.

The following script can be used to generate a CUBE file using densf for the SCF electron density (Density SCF):

"$AMSBIN"/densf << eor
InputFile XeAuF.results/adf.rkf
Density SCF                      ! We require the SCF density to be mapped
CUBOutput XeAuF                  ! Output is the file: XeAuF%SCF%Density.cub
Grid
   -10.0 -10.0 -10.0
   100  100  100
   1.0 0.0 0.0 15.03
   0.0 1.0 0.0 15.03
   0.0 0.0 1.0 15.03
End
eor

A CUBE file can also be generated using densf for the sum of the SCF electron densities of the isolated Xe and AuF fragments (Density SumFrag):

"$AMSBIN"/densf << eor
InputFile XeAuF.results/adf.rkf
CUBInput
Density SumFrag                  ! We require the Sum of SCF densities of the isolated Fragments
CUBOutput XeAuF                  ! Output is the file: XeAuF%SumFrag%Density.cub
Grid
   -10.0 -10.0 -10.0
   100  100  100
   1.0 0.0 0.0 15.03
   0.0 1.0 0.0 15.03
   0.0 0.0 1.0 15.03
End
eor

Note

All densities must be mapped on the same numerical grid. This has been explicitly defined after the grid keyword in the densf input. This is important if you use the PYCUBESCD suite of programs to calculate the CD function in Step 3.

Now we use the PYCUBESCD suite of programs to make operations between Cube files and to generate the CD function. PYCUBESCD suite is freely available to download (LGPL-3.0 License at GitHub).

In the following command, $INSTALL is the directory where the PYCUBESCD program is installed. You make use of the pysub_cube.py file which is placed in the PY3 folder in the pycubescd-master.

Run the following command in order to generate the file diff_XeAuF.cub, which contains the numerical representation of the electron density difference between the XeAuF molecule (cube file: XeAuF%SCF%Density.cub) and the sum of the electron density of the Xe and AuF fragments (cube file: XeAuF%SumFrag%Density.cub) obtained in the Step 2:

export INSTALL=/path/to/pycubescd-master
amspython $INSTALL/PY3/pysub_cube.py -f1 XeAuF%SCF%Density.cub -f2 XeAuF%SumFrag%Density.cub -o  diff_XeAuF.cub

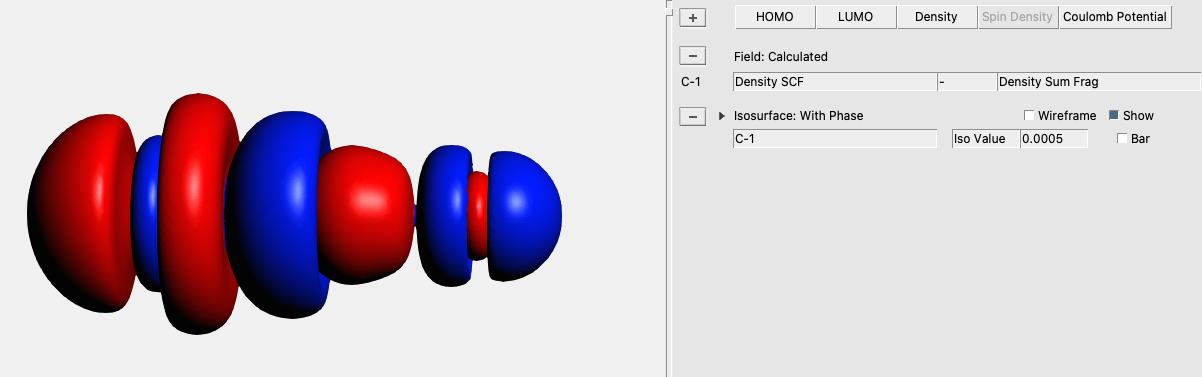

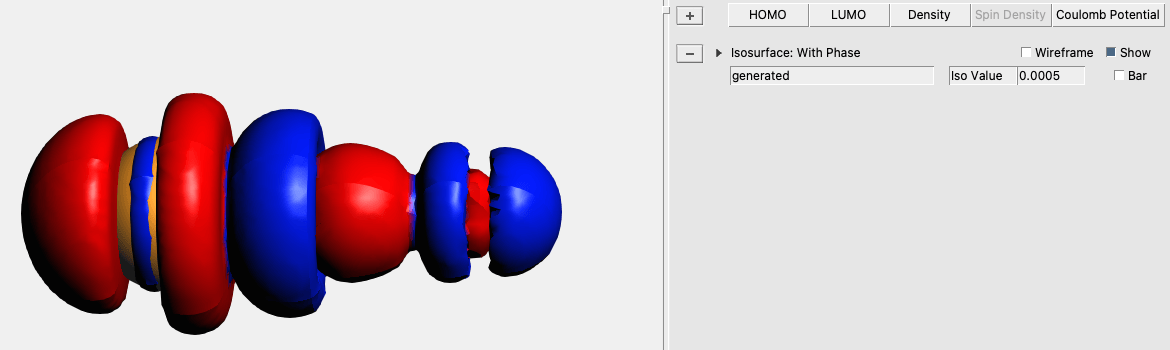

This file (diff_XeAuF.cub) can be easily visualized within AMS-GUI:

Open SCMMenu → View
Open the diff_XeAuF.cub file (File → Open…)
Add → Isosurface: With Phase
Select the field generated
Change the isovalue to 0.0005 e/au3

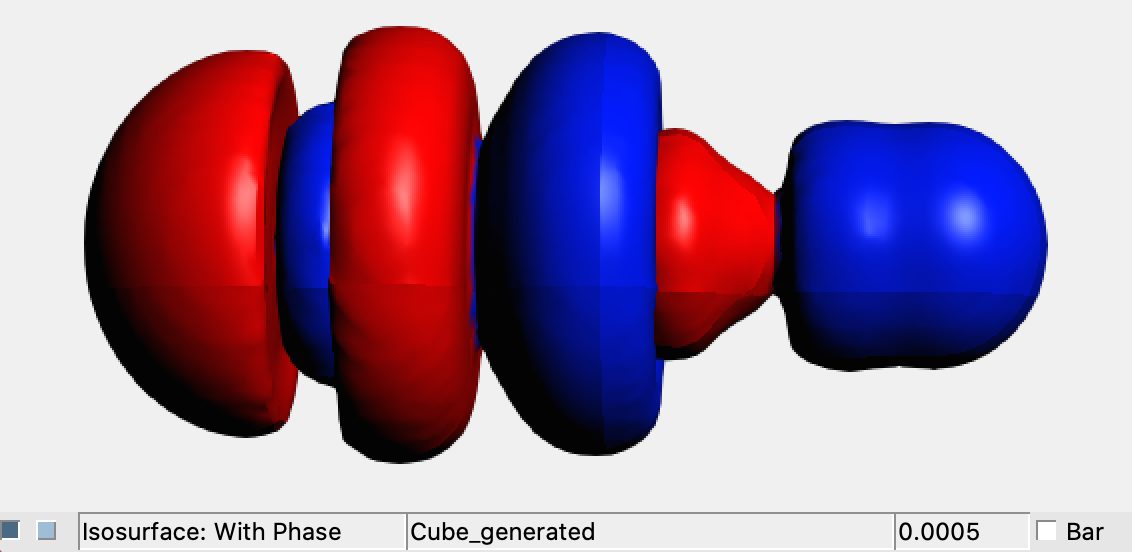

/scm-uploads/doc.trunk/Tutorials/_images/Isosurface.png

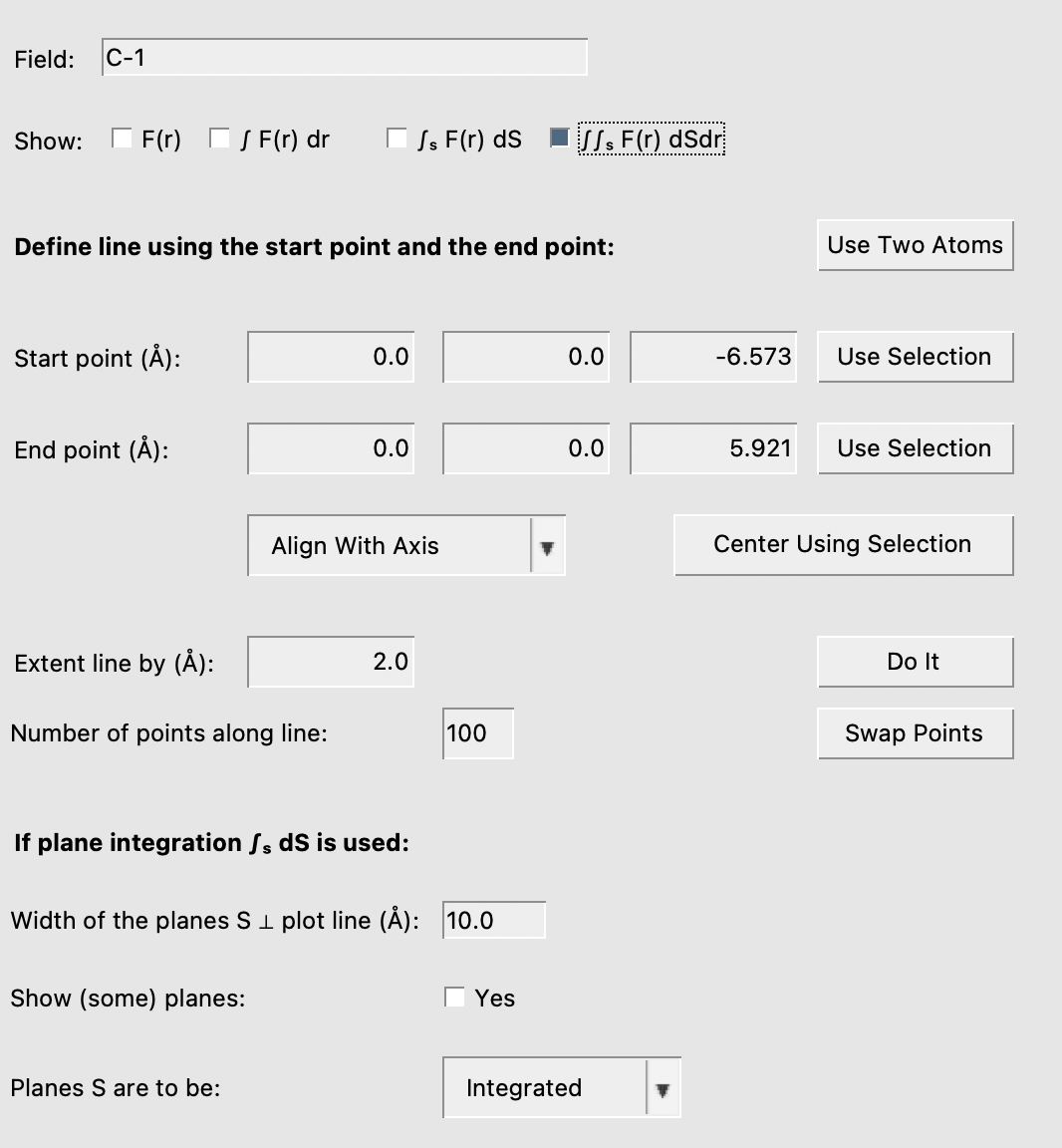

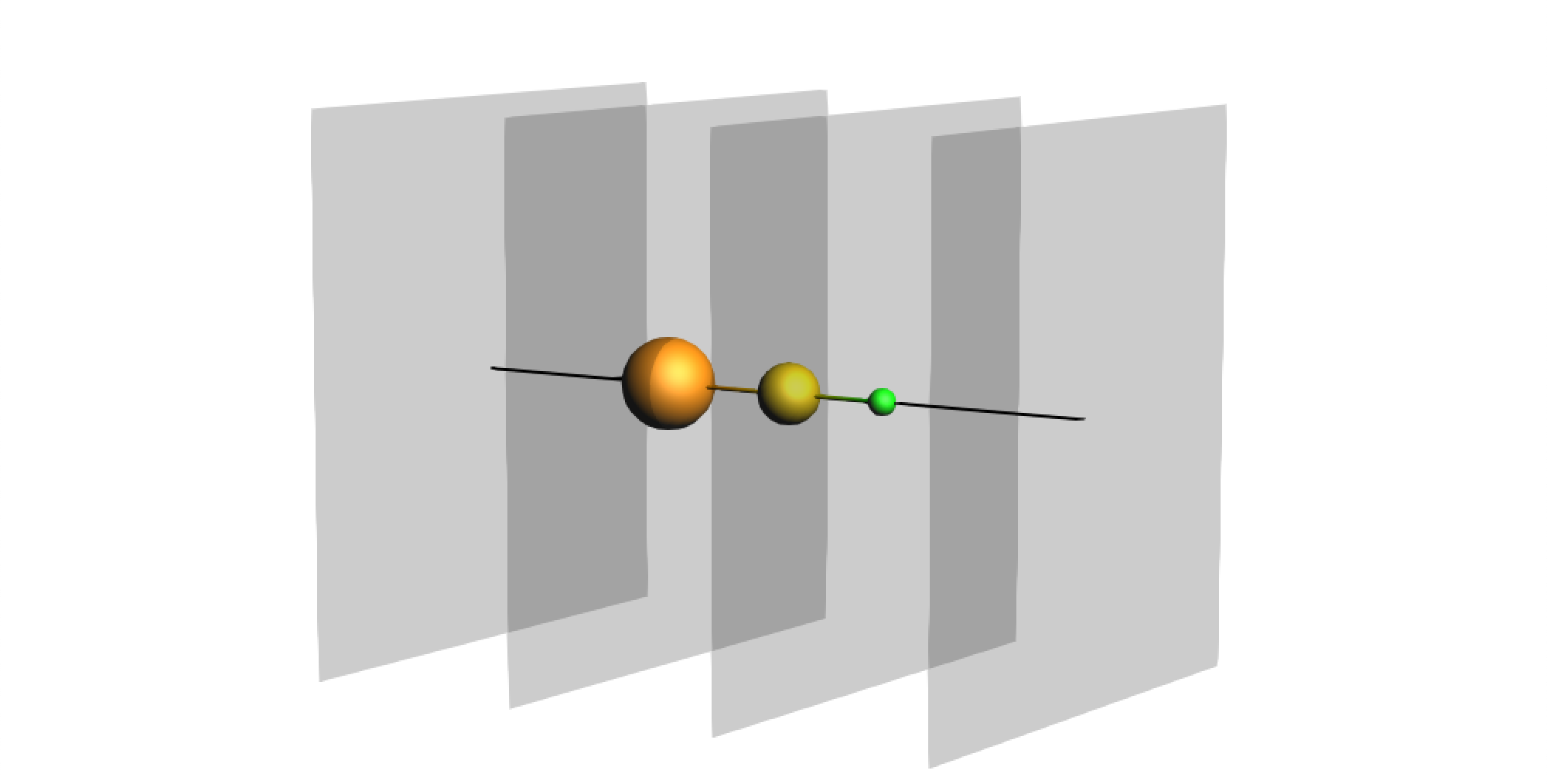

The CD function can be generated by using the pycd_simple.py program available in PYCUBESCD suite ($INSTALL is the directory where the PYCUBESCD program is installed):

amspython $INSTALL/PY3/pycd_simple.py -f diff_XeAuF.cub

The result is a text format file (diff_XeAuF.cub_cdz.txt) which contains the numerical representation of the CD function. It can be easily visualized with a 2D-plot software.

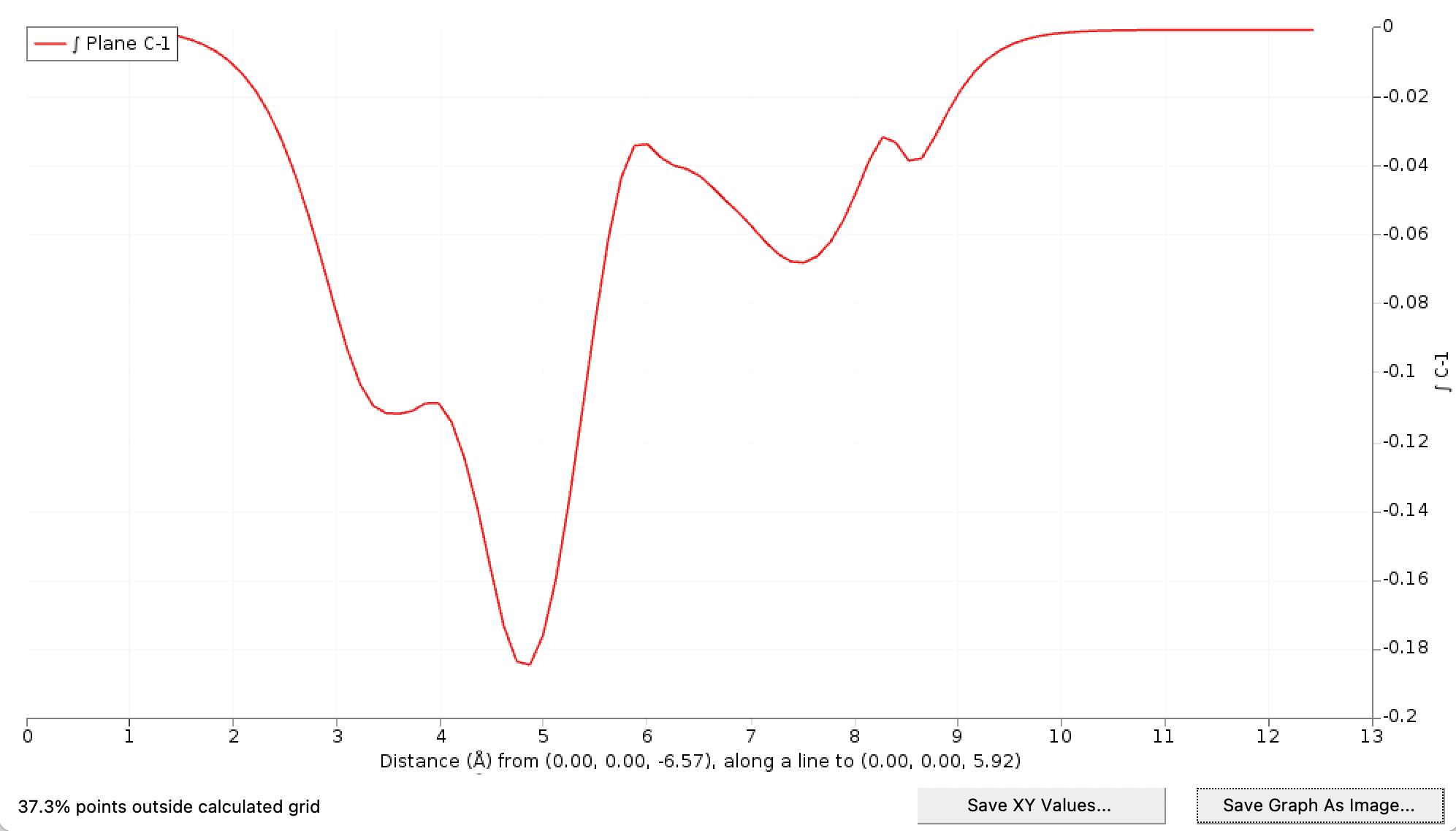

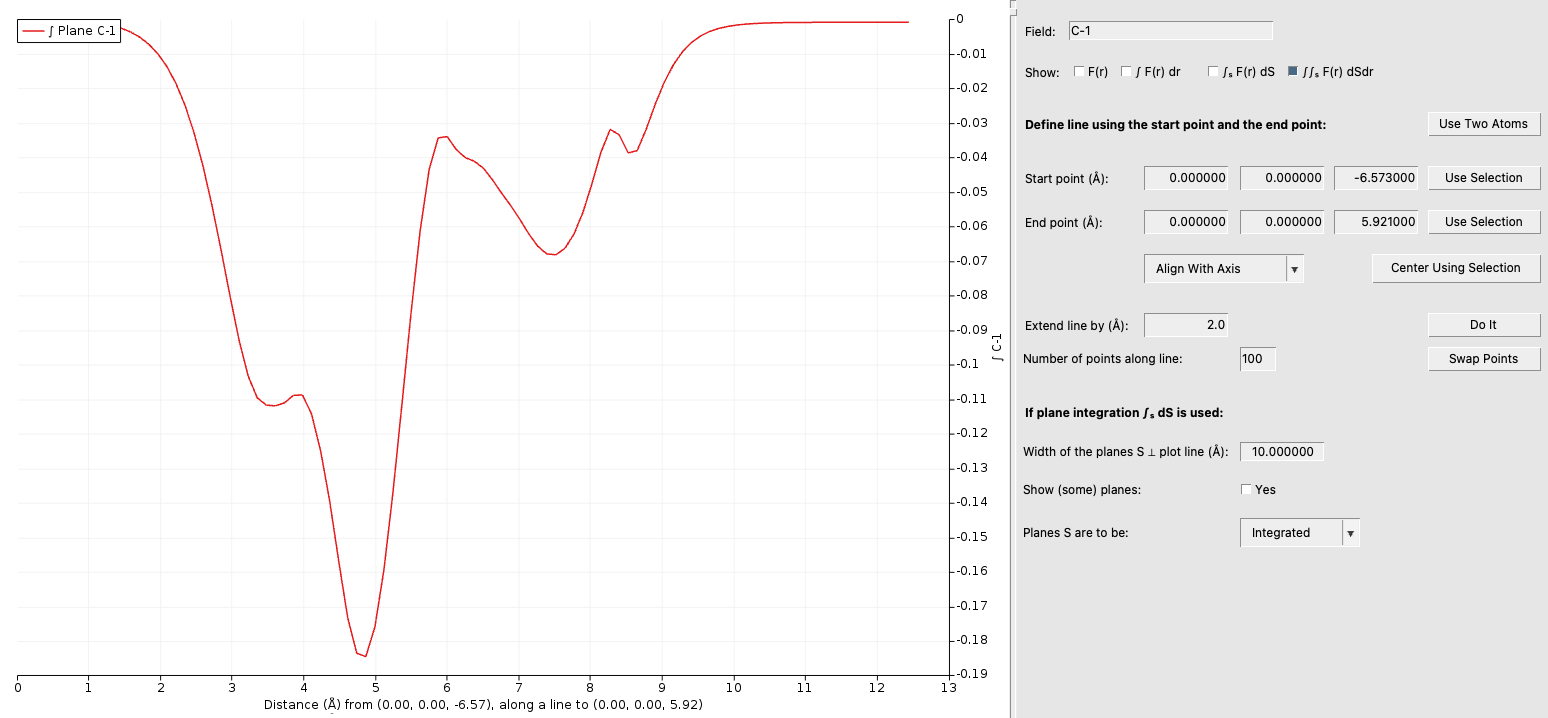

/scm-uploads/doc.trunk/Tutorials/_images/Case1_CD.png

Case 2: Dewar-Chatt-Duncanson bonding components in a transition metal complex (NOCV-CD)

This tutorial shows how to generate the NOCV deformation densities (Δρk) and export them on a numerical grid (CUBE file format) directly using AMS-GUI. The associated CD functions (Δqk) are evaluated numerically using the PYCUBESCD suite of programs, freely available at GitHub.

The transition state complex needed for this tutorial is given here.

Note

The alignment of the molecule is important. The z-axis defines the axis on which is performed the partial integration for evaluating the CD function. In this case the integration axis is defined as the axis passing for the Ni atom and the midpoint of the CC triple bond of the coordinated alkyne.

1. Fragment Calculation

Start AMSinput and insert the transition state complex
In the Main ADF Panel, select the Single Point task
Select the GGA:BLYP XC functional
Make sure the Relativity is set at Scalar
Select a TZ2P Basis set and a Good Numerical quality
In the Panel bar, select Model → Regions
Select the C2 H2 and click the AddButton to add it as region
In the menu bar, click Select → Invert Selection and add them as a second region
In the Panel bar, select MultiLevel → Fragments
Check the Use fragment box
In the Panel bar, select Properties → ETS-NOCV
Select the Closed-Shell at ETS-NOCV analysis
Save and run the calculation

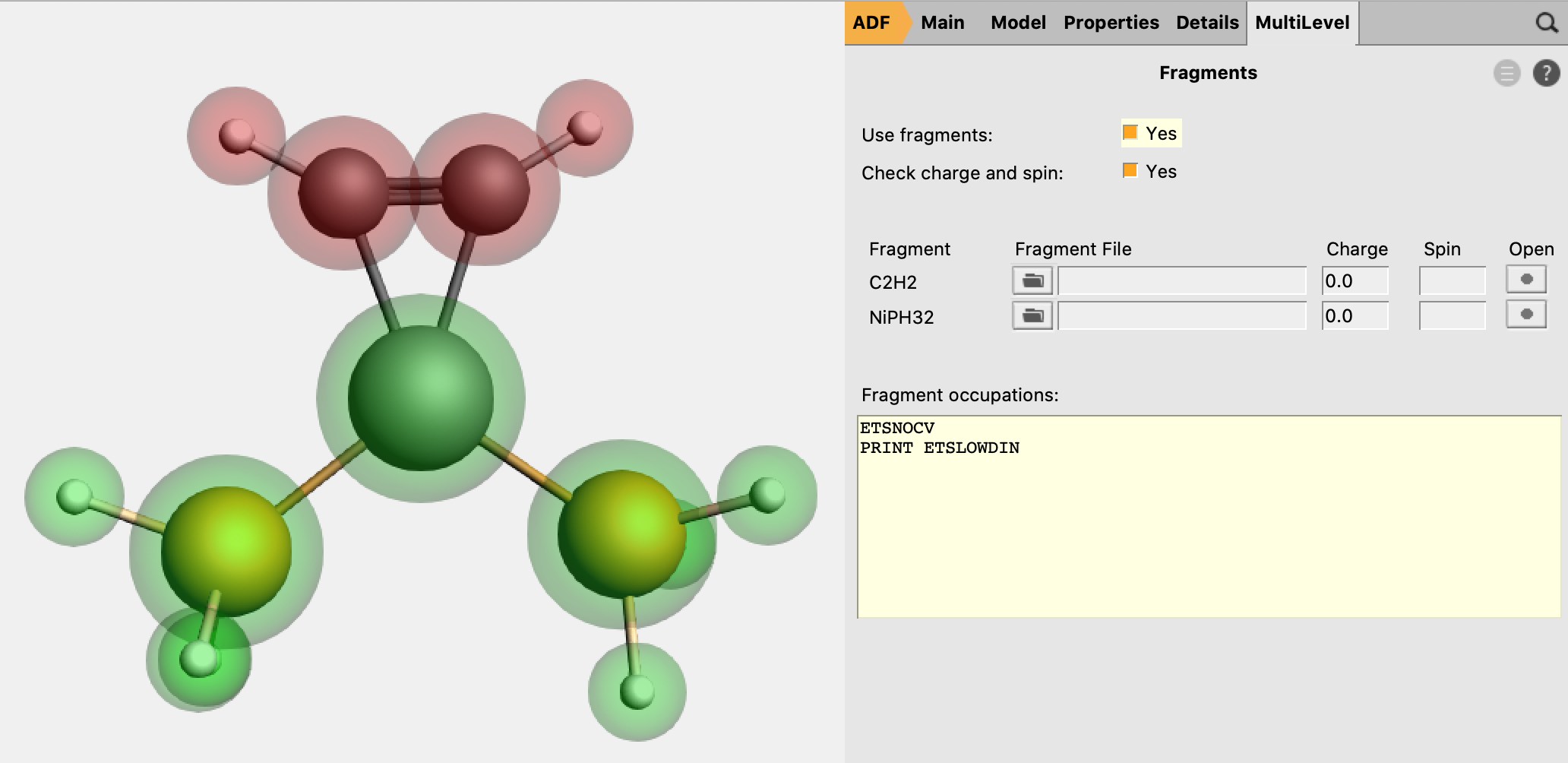

/scm-uploads/doc.trunk/Tutorials/_images/FragmentCalcTMcomplex.png

2. Visualize NOCV deformation densities

The NOCV deformation densities can be visualized by performing the following steps:

Open SCMMenu → View of the Fragment Calculation
In the menu bar, select Add → Isosurface: With Phase
Select Field … → NOCV Def Densities
Select a deformation density, for instance Δρ1
Change the isovalue to 0.003 e/au3

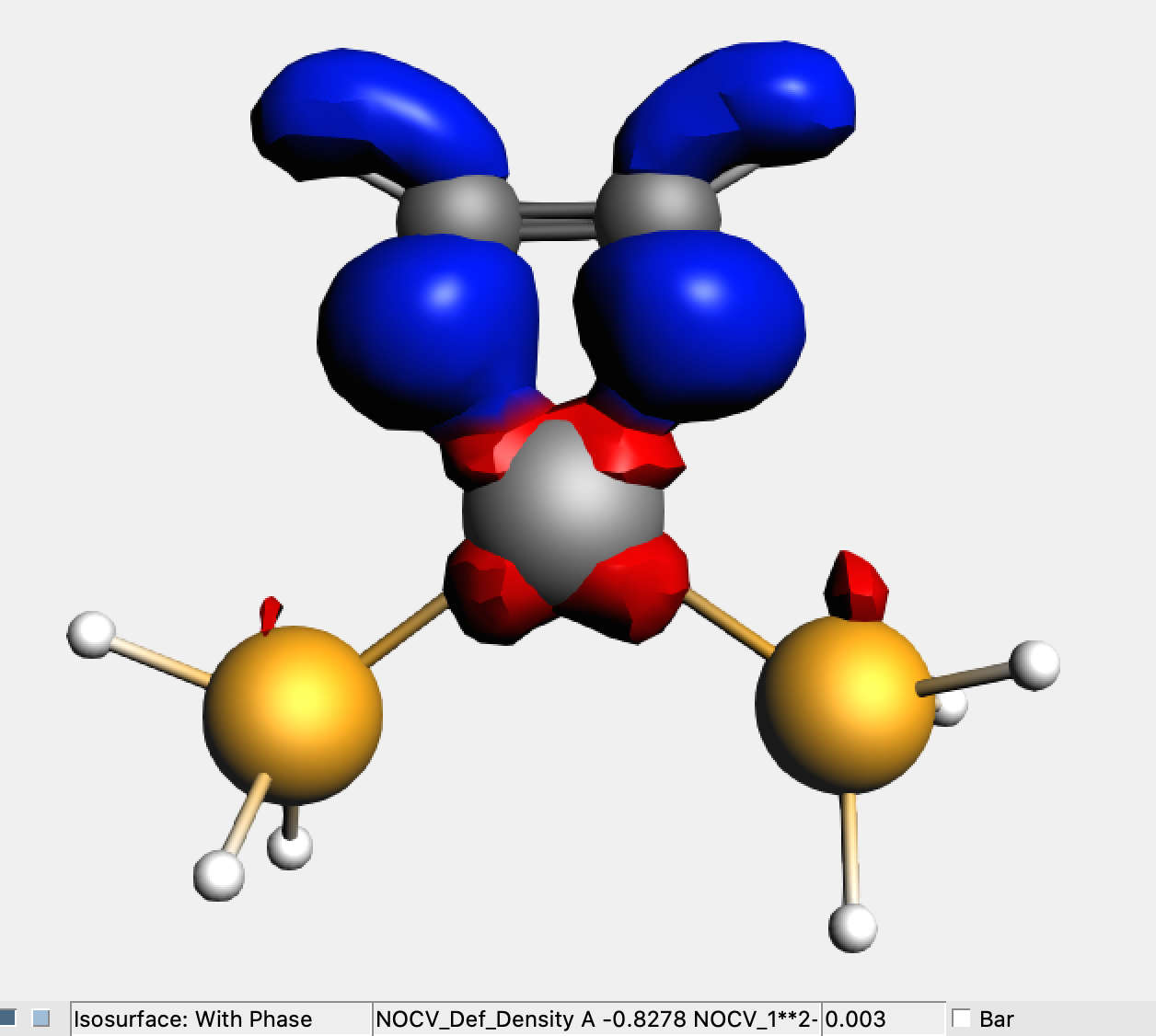

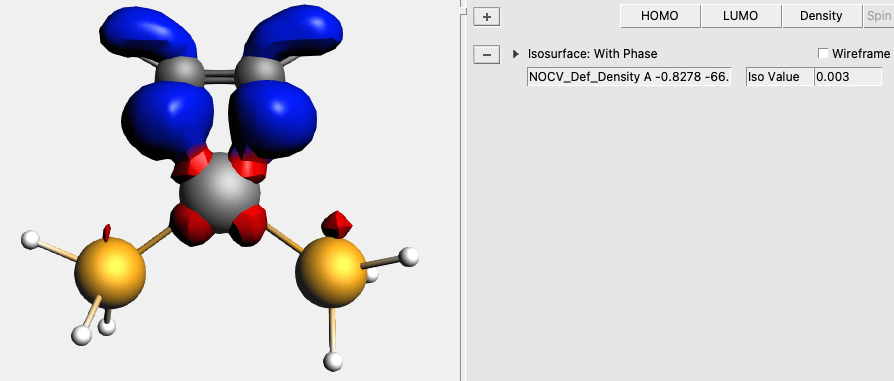

/scm-uploads/doc.trunk/Tutorials/_images/NOCVdefdensTM.png

In the above figure is shown the deformation density (Δρ1) associated with the largest NOCV eigenvalue. It clearly represents the metal-to-substrate π-backdonation (red/blue colored isodensity surface defines electron density depletion/accumulation).

3. Generate a CUBE file

One starts with adding all the NOCV deformation densities you want to map in Cube File format. For instance, in the below example we chose those associated with the three largest eigenvalues, namely 0.8278, 0.3615 and 0.2194. The isodensity surface in the figure is related to Δρ2, which is clearly related to the σ-substrate-to-metal donation component. You add the NOCV deformation densities with:

Add → Isosurface: With Phase
Select Field … → NOCV Def Densities

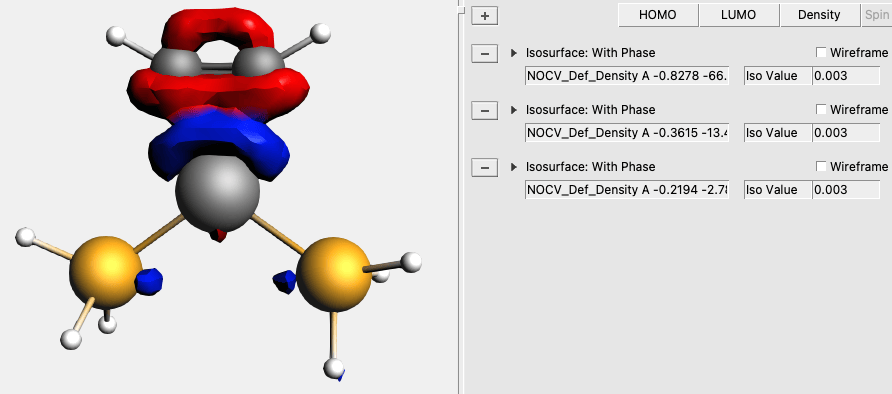

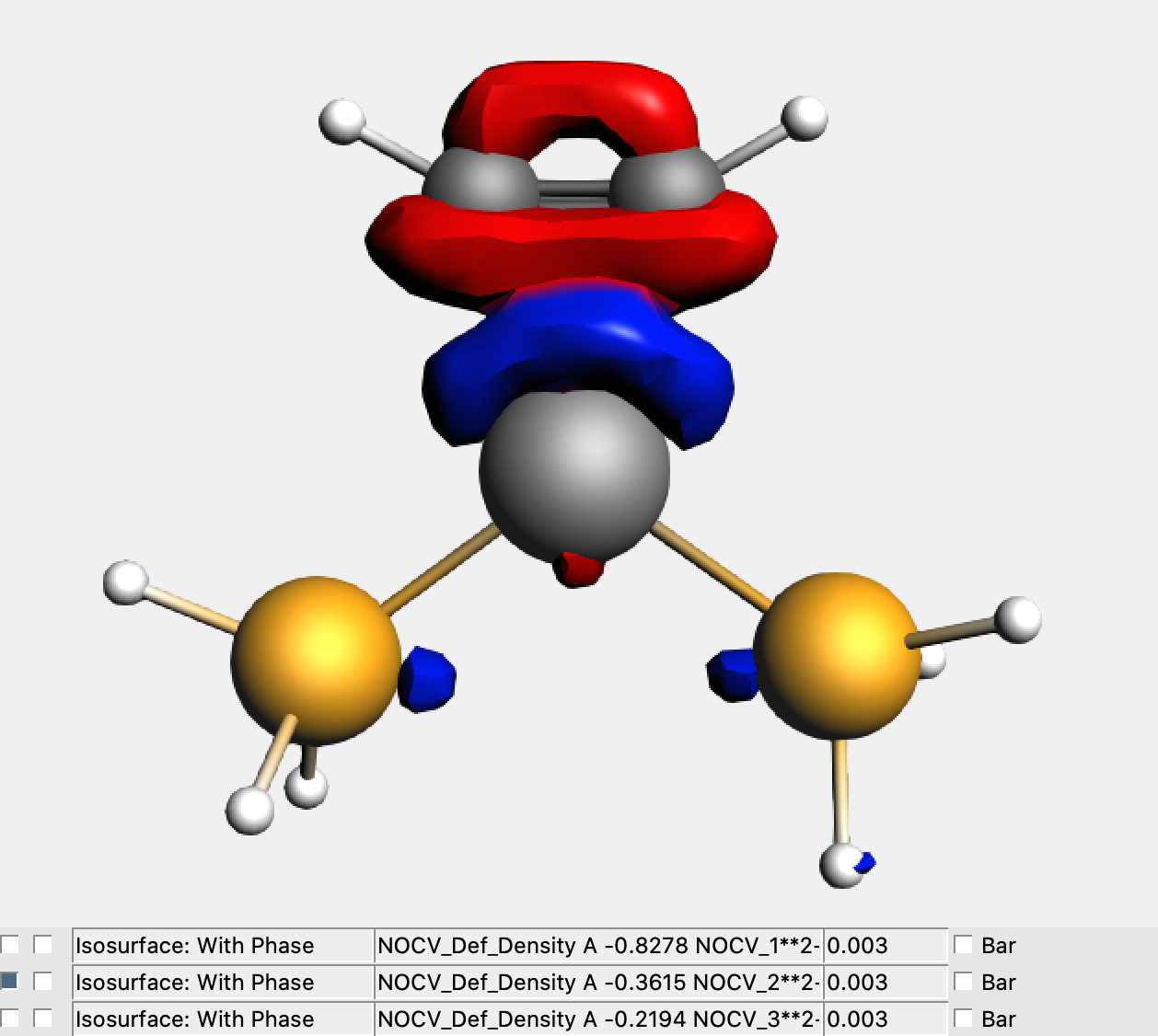

/scm-uploads/doc.trunk/Tutorials/_images/AllNOCVdefdensTM.png

The CUBE file can be generated now:

Improve the Course Gris by selecting Fields → Grid → Medium (or Fine)
In the menu bar, select File → Export Field as Cube Files

Note

Typically the Medium setting for the Grid is sufficient to obtain accurate CD functions. Clearly, the larger the grid is, the larger the size of the generated Cube files will be. For instance using Medium Grid the three Cube Files associated at Δρ1,Δρ2,Δρ3 have a size of 4.3MB (the latter increases to 34.3MB whether one sets Fine Grid to generate Cube Files).

4. CD functions for the NOCV deformation densities

The CD functions are generated using the pycd_simple.py program available in PYCUBESCD suite (exactly as done in the Case 1, step 3):

Give the following command line in the directory where the Cube Files associated at Δρ1, Δρ2, and Δρ3 have been generated (in the .results folder) and in which $INSTALL is the directory where the PYCUBESCD program is installed:

amspython $INSTALL/PY3/pycd_simple.py   -f  215--Medium-0.cube%NOCV%SumDensities_A_1.cub
amspython $INSTALL/PY3/pycd_simple.py   -f  218--Medium-0.cube%NOCV%SumDensities_A_2.cub
amspython $INSTALL/PY3/pycd_simple.py   -f  221--Medium-0.cube%NOCV%SumDensities_A_3.cub

The results are three text format files (.cub_cdz.txt) which contains the numerical representation of the CD functions associated with Δρ1, Δρ2, and Δρ3. They can be easily visualized with a 2D-plot software. The picture below can be obtained combining the 3D isosurface pictures of the NOCV density deformations.

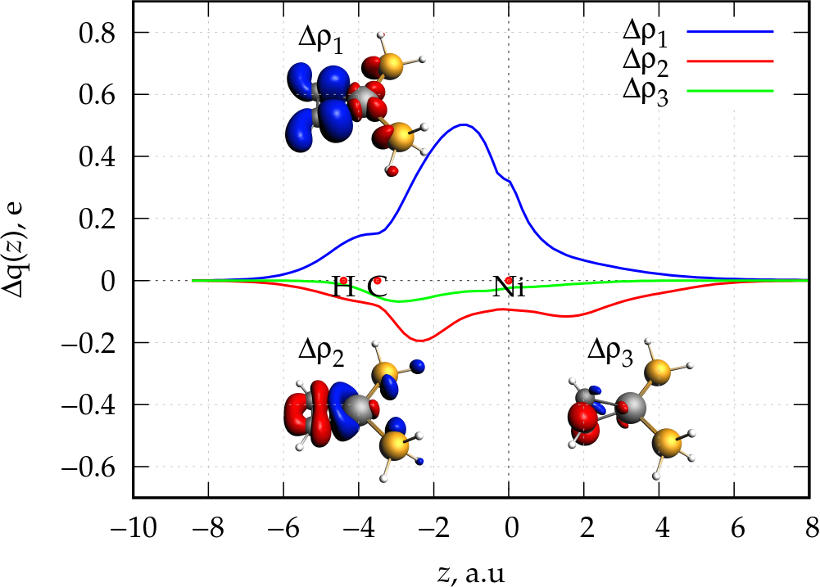

/scm-uploads/doc.trunk/Tutorials/_images/Case2_CD.png

Case 3: Open-Shell CD in the HAT mechanism of the TauD-J intermediate

This tutorial shows how to generate the spin-density difference and the total-density difference (Δρα,Δρβ,Δρtot) and export them on a numerical grid (CUBE file format) using densf. The associated CD functions (Δqα,Δqβ,Δqtot) are then evaluated numerically using the PYCUBESCD suite of programs, freely available at GitHub.

1. Unrestricted Calculations

First, we need to perform a set of unrestricted ADF calculations on the transition state structure of the TauD-J__C2 H6 model system. The TauD-J intermediate features a FeIV =O unit which is the H-abstracting species. The two constituting fragments to consider are the Fe=O moiety of TauD-J and the C2 H6 substrate, in the position they occupy in the transition state geometry. The molecular structures needed for this tutorial can be downloaded here.

Note

The alignment of the molecule is important. The z-axis defines the axis on which is performed the partial integration for evaluating the CD function. In this case the integration axis is defined as the axis through the Fe=O bond.

Three independent calculations will be performed: (i) TauD-J__C2 H6 model system (FeO_CH) (ii) TauD-J fragment (FeO) and (iii) ethane fragment.

1. Start AMSinput and insert the TauD-J__C2H6 system
2. In the Main ADF Panel, select the Single Point task
3. Tick the Unrestricted calculation box
4. Fill in for the Spin polarization 4.0
5. Select the GGA-D:S12g-D3 XC functional
6. Make sure the Relativity is set at Scalar
7. Select a TZ2P Basis set, a Small Frozen core
8. Select a Good Numerical quality
9. Save and run the calculation

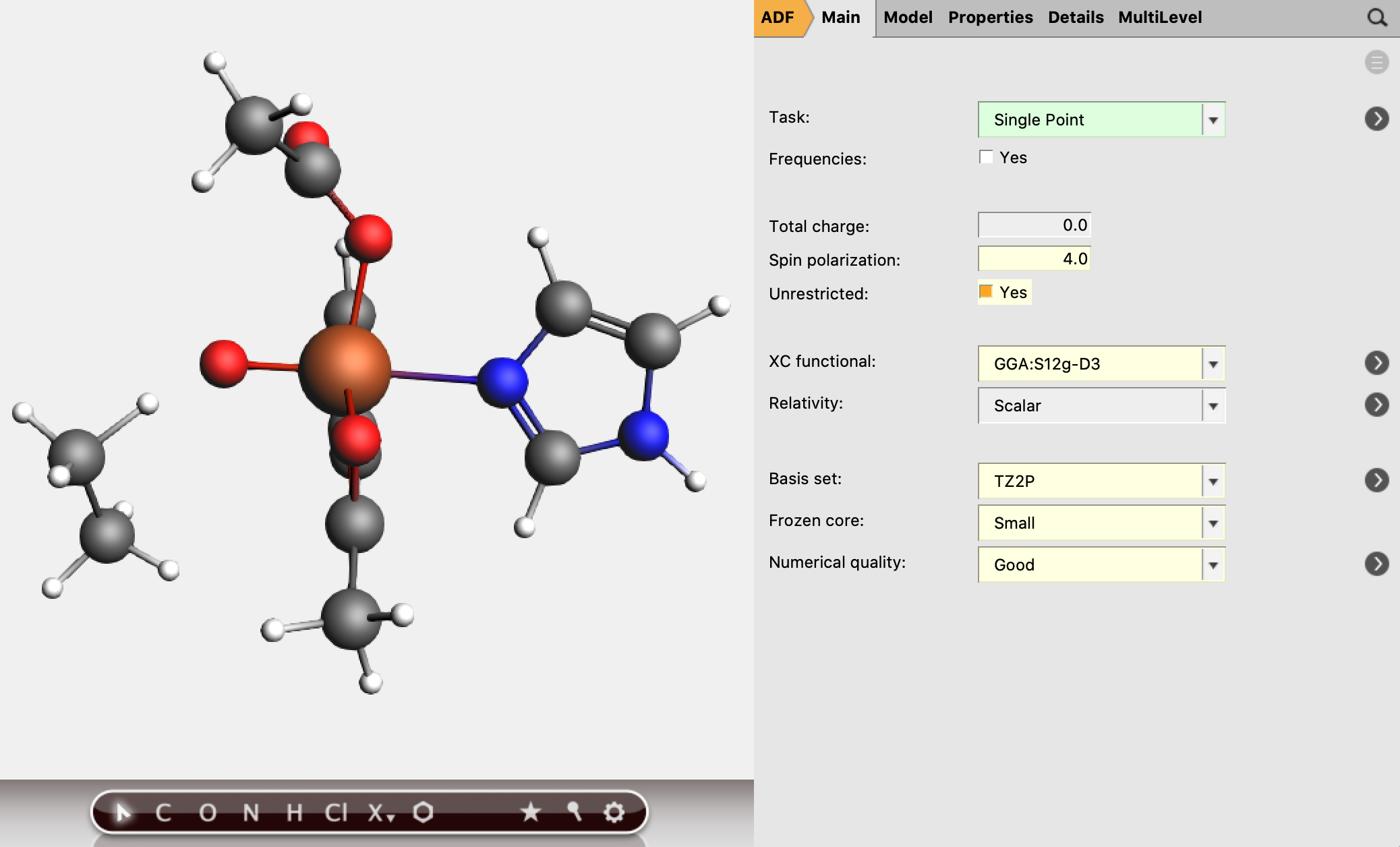

/scm-uploads/doc.trunk/Tutorials/_images/SinglePoint_3.png

Now, the other two single point calculations can be performed:

Insert the TauD-J fragment in a new AMSinput
Repeat step 2-9 from above
Insert the ethane fragment in a new AMSinput
Select the Single Point task
Tick the Unrestricted calculation box, but set a spin polarization of 0.0
Repeat step 5-9 from above

The adf.rkf files of these calculations are needed for the following step.

2. Generate CUBE files

We use densf to generate a numerical representation of the electron spin-densities associated with the unrestricted calculations performed on the (i) TauD-J__C2 H6 model system (FeO_CH) (ii) TauD-J fragment (FeO) and (iii) ethane fragment (CH). We map these quantities in the CUBE format. The only information necessary from previous single point calculations are the adf.rkf files.

The following script can be used to generate the CUBE files for the α- and β-spin electron densities of FeO, CH and FeO_CH.

for job in "FeO" "CH" "FeO_CH"; do
$AMSBIN/densf << eor
InputFile $job.results/adf.rkf
Density SCF
CUBOutput $job
Grid
   -10.0 -10.0 -10.0
   300  300  350
   1.0 0.0 0.0 20.0
   0.0 1.0 0.0 20.0
   0.0 0.0 1.0 20.0
End
eor
done

Note

As in any unrestricted calculation, we will get the α- and β-spin electron density as a result.

3. Obtain density differences

We now use the PYCUBESCD suite of programs to make operations between Cube files and to obtain the spin-density differences (Δρα, Δρβ) and the total density difference (Δρ). These density differences will be then integrated along the z-axis to retrieve the corresponding CD functions.

Use the command lines below in the directory where your just generated cube files are placed. The $INSTALL need to be changed to the directory where the PYCUBESCD program is installed, and when you have named the cuboutput differently (than FeO, CH and FeO_CH) change the names of the input cube files as well.

amspython $INSTALL/PY3/pyadd_cube.py -f1 FeO%SCF%Density_A.cub -f2 CH%SCF%Density_A.cub -o SumFrag_Density_A.cub
amspython $INSTALL/PY3/pyadd_cube.py -f1 FeO%SCF%Density_B.cub -f2 CH%SCF%Density_B.cub -o SumFrag_Density_B.cub
amspython $INSTALL/PY3/pysub_cube.py -f1 FeO_CH%SCF%Density_A.cub -f2 SumFrag_Density_A.cub -o diff_FeO_CH_A.cub
amspython $INSTALL/PY3/pysub_cube.py -f1 FeO_CH%SCF%Density_B.cub -f2 SumFrag_Density_B.cub -o diff_FeO_CH_B.cub
amspython $INSTALL/PY3/pyadd_cube.py -f1 diff_FeO_CH_A.cub -f2 diff_FeO_CH_B.cub -o diff_FeO_CH.cub

The generated diff_FeO_CH_A.cub, diff_FeO_CH_B.cub and diff_FeO_CH.cub files contain the numerical representation of the electron (spin) density difference between the FeO_CH system and the sum of the electron (spin) densities of the FeO and CH fragments.

These files can be easily visualized within AMS-GUI in the same manner as for Case1 and Case2:

Open SCMMenu → View
Open a diff_FeO_CH.cub file (File → Open…)
Add → Isosurface: With Phase
Select the field generated
Change the isovalue to 0.01 e/au3

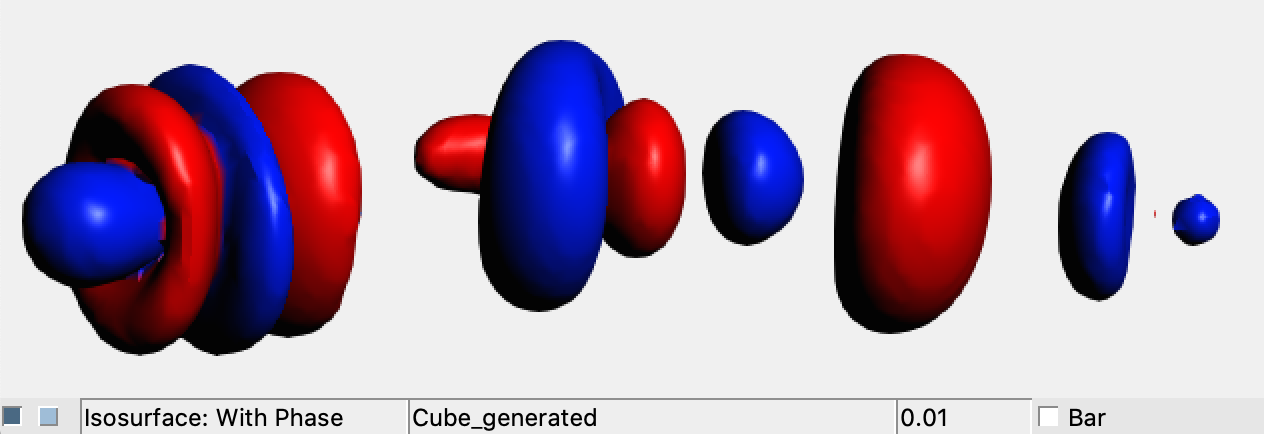

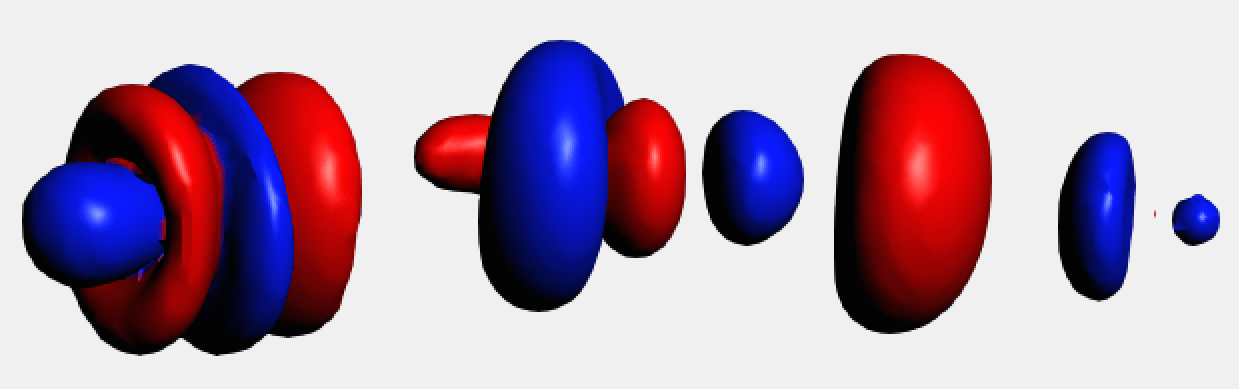

/scm-uploads/doc.trunk/Tutorials/_images/IsosurfaceFeO_CH.png

4: Generate the CD functions

The CD functions are finally generated using the pycd_simple.py program available in PYCUBESCD suite. Again, the $INSTALL needs to be changed to the directory where the PYCUBESCD program is installed.

amspython  $INSTALL/PY3/pycd_simple.py -f diff_FeO_CH_A.cub
amspython  $INSTALL/PY3/pycd_simple.py -f diff_FeO_CH_B.cub
amspython  $INSTALL/PY3/pycd_simple.py -f diff_FeO_CH.cub

This results in three text formal files ( .cub_cdz.txt) which contains the numerical representation of the CD functions associated with Δρα, Δρβ and Δρtot. They can be easily visualized with a 2D-plot software. The picture below can be obtained combining the isosurface picture of the total density difference and the three CD functions.

/scm-uploads/doc.trunk/Tutorials/_images/Case3_CD.png
