Building Polymers

In this tutorial you will learn how to build polymers from monomers using the polymer builder tool of AMS.

As an example polymer we are going to build high-impact polystyrene (HIPS), a low cost thermoplastic that is easy to fabricate and often used for low strength structural applications where impact resistance and machinability are required. HIPS is a graft polymer consisting of a polystyrene backbone with polybutadiene chains branching from it in each direction.

Loading the monomers from the database

1. Start AMSinput.
2. Open the polymer builder tool by clicking Edit → Polymer….

In principle we could build the monomers ourselves using the normal building tools and the molecule viewport on the left. We would then also have to designate the link points at which the monomers can link up. However, in practice it is easier to just load them from the monomer database that comes with the Amsterdam Modeling Suite.

1. Type styrene into the Add monomers field and press the Enter key.
2. Type buta into the Add monomers field and select 1,4-butadiene from the drop down menu.
3. Use the right mouse button in the molecule viewport to drag the butadiene monomer away from the styrene.
4. Left click into the molecule viewport to deselect all atoms.

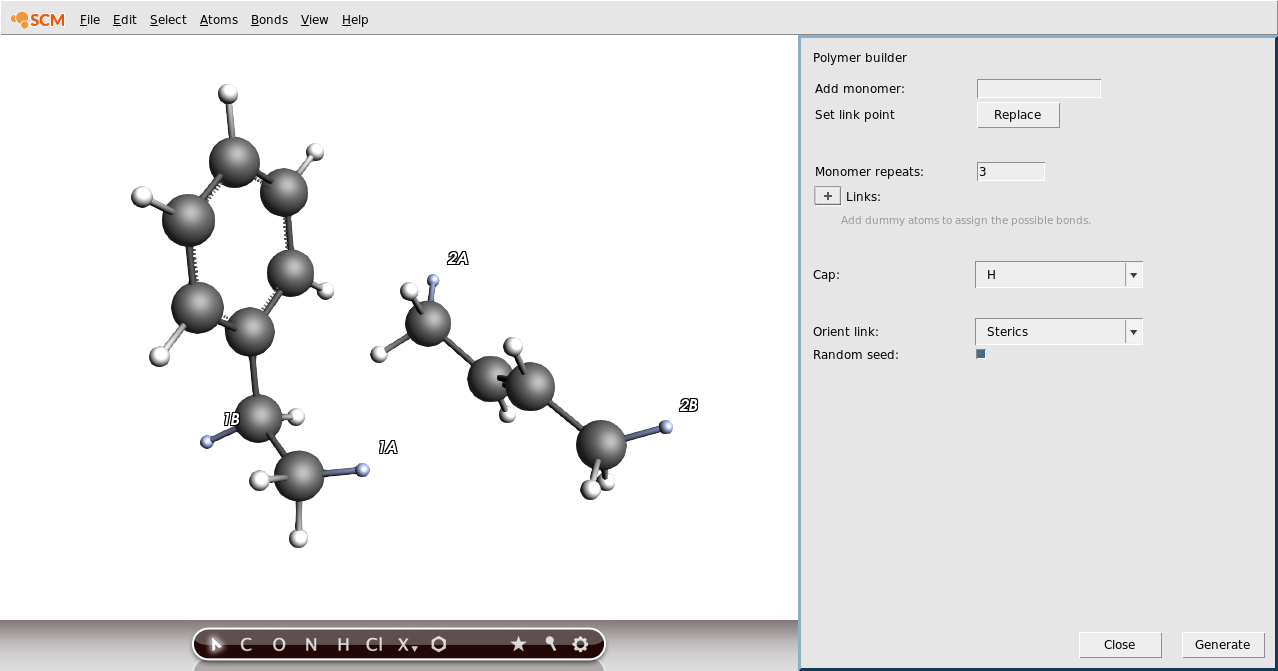

You should now see the two monomers in the molecule viewport.

/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_1.png

Note that each of the two monomers has two link points, designated by the small light blue spheres and the label, e.g. 1A. The number in the label designates the monomer that this link point belongs to (in the order they were loaded/built), while the letter labels the different link points on each monomer.

Growing polymers

Let us first set up the polystyrene back bone. We would obtain pure polystyrene if we just linked the styrene monomers via 1A ↔ 1B. Let us actually do that now.

1. Click the + next to Links.
2. Make sure the appearing link specification has 1A and 1B selected.
3. Set Monomer repeats to 20.
4. Click the Generate at the bottom of the polymer builder panel.
/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_1int.png

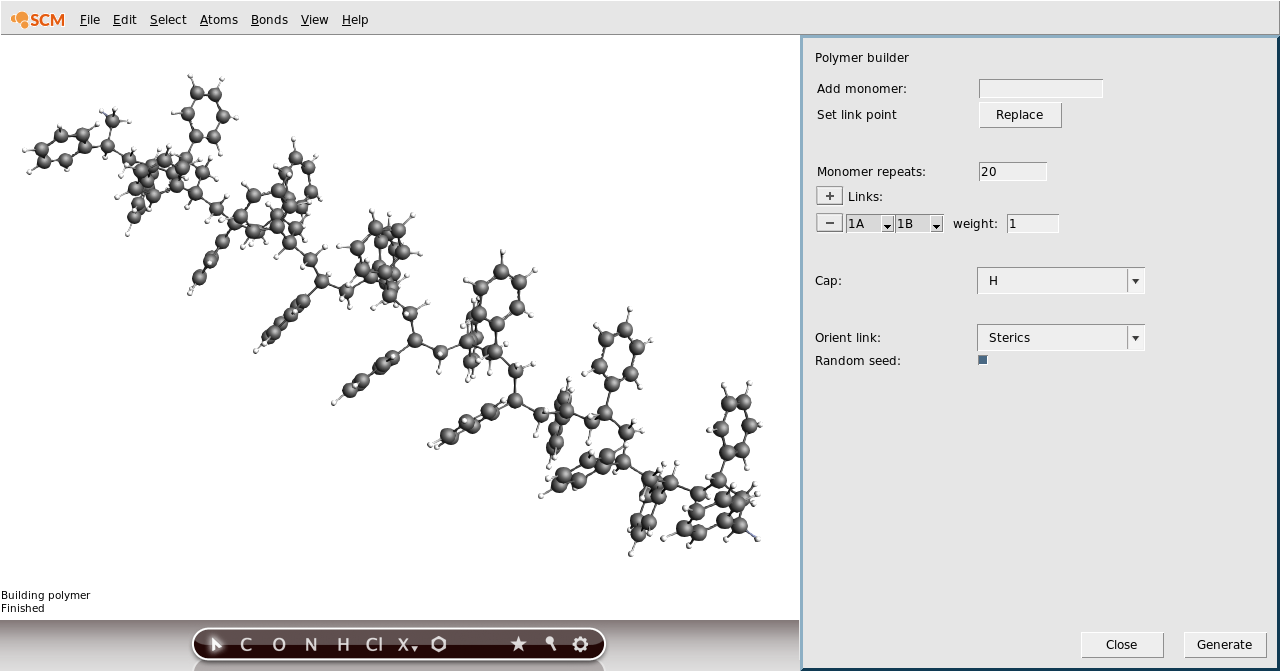

As you can see, we now have a pure polystyrene chain, while the butadiene monomer was not used at all. This is simply because we did not set up a linking rule that included any of its link points. Let us fix this now and grow real high-impact polystyrene.

1. Use Edit → Undo (or the ctrl/cmd+z hotkey) to undo the polystyrene generation.

In order to attach polybutadiene side chains to the polystyrene backbone, we first need to add more link points to the styrene monomer. Otherwise there is just no place to attach the side chains without terminating the backbone.

1. Select both hydrogen atoms on the outer carbon atom of the styrene monomer, i.e. the one which also has the 1A link. (Shift + left click adds atoms to a selection.)
2. Click the Replace button next to Set link point.

The last carbon atom in the tail of the styrene monomer should now have three link points. We already used 1A to make backbone link to 1B. Ergo we can not use this link to attach the butadiene chains since it might terminate our backbone. However, we can use the newly created links 1C and 1D to grow the side chains.

1. Click the + next to Links.
2. Set the new link specification to 1C and 2A.
1. Click the + next to Links again.
2. Set the new link specification to 1D and 2A.

This allows the attachment of butadiene monomers to our backbone. However, we also want these side chains to be able to grow into polybutadiene. Ergo we need to set up one last link, which allows linking of the butadiene monomers to each other.

1. Click the + next to Links.
2. Set the new link specification to 2A and 2B.

The polymer builder grows the polymers by randomly making the links according to the weight we have set for each link. As our backbone grows we get more and more open ended side chains, to which more butadiene monomers could be linked. On the other hand, the number of link points at which the backbone can be grown is constant: one at each end of the backbone chain! Randomly picking new links with equal weights would therefore lead to a very short backbone with extremely long side chains, which is probably not what we want. We will therefore decrease the weight of the link between butadiene monomers in order to control the length of the side chains.

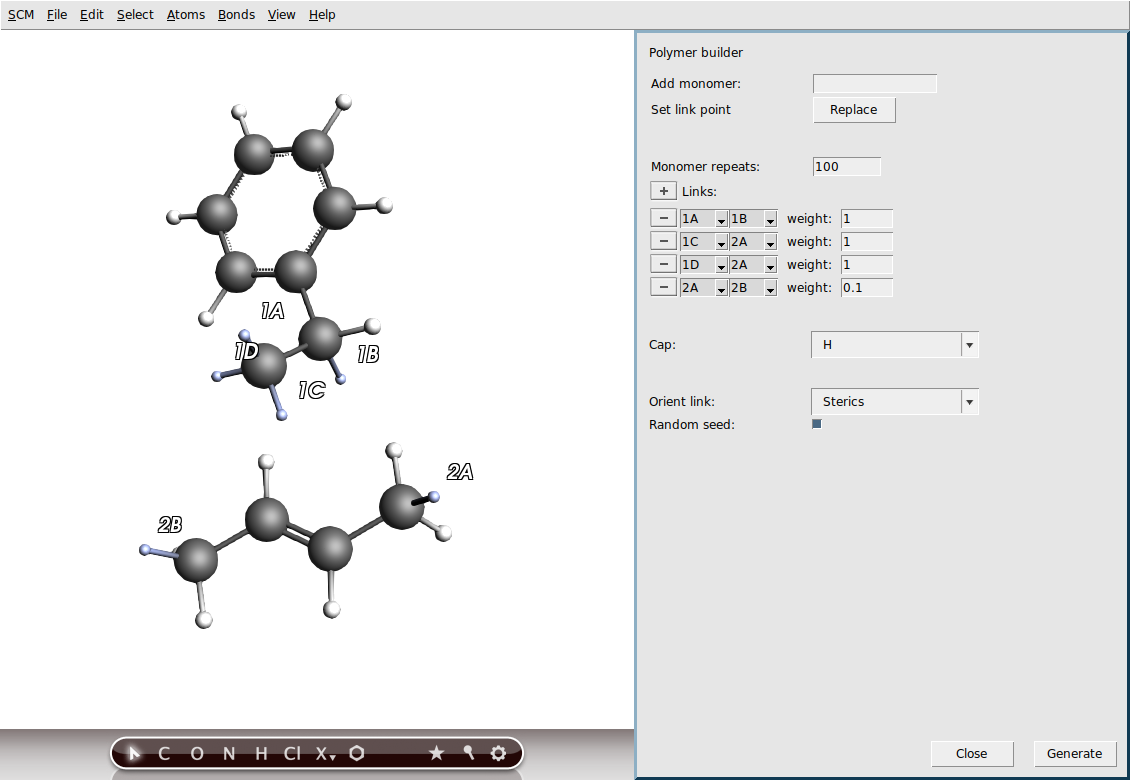

1. Set Monomer repeats to 100.
2. Set the weight of the new link to 0.1.
/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_2.png

This is all we need. We are now ready to start growing the high-impact polystyrene polymer.

1. Click the Generate at the bottom of the polymer builder panel.
2. Watch your polymer grow. It might take a minute or so.
/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_3.png

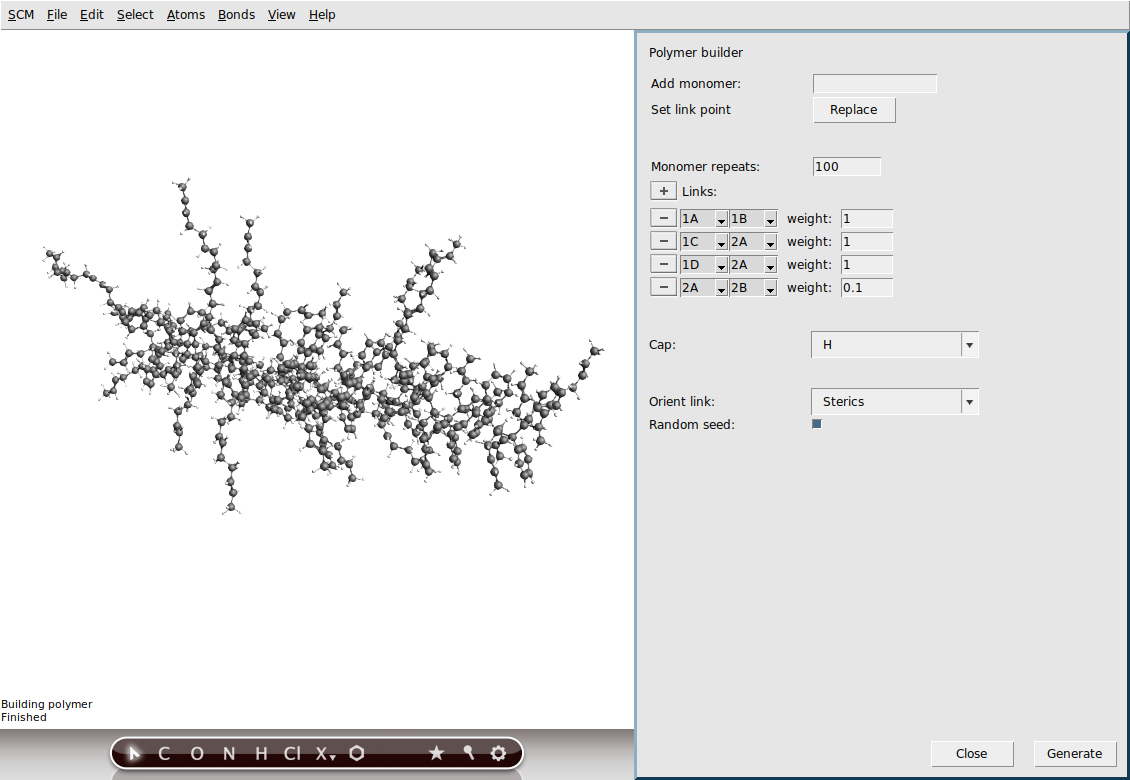

As the polymer is growing you can see the labels of the currently still open link points. As mentioned above these are mostly the open 2B link points, hence the lower weight for the 2A to 2B linking.

Optimizing the structure with UFF

Once the entire polymer has been built, we should optimize its geometry with UFF. The polymer builder is relatively aggressive in linking together the monomers, and while it will make sure the result is sterically not completely unreasonable, it might still have groups from different monomers unphysically close to each other. A quick optimization with UFF is perfect to resolve these situations, as it will use the topology set up by the polymer builder and not form or break bonds during the optimization. The UFF forcefield is the default forcefield in the ForceField module.

Tip

Always optimize the output of the polymer builder with UFF. As of AMS2020, the UFF forcefield is now part of the ForceField module.

1. Close the polymer builder tool.

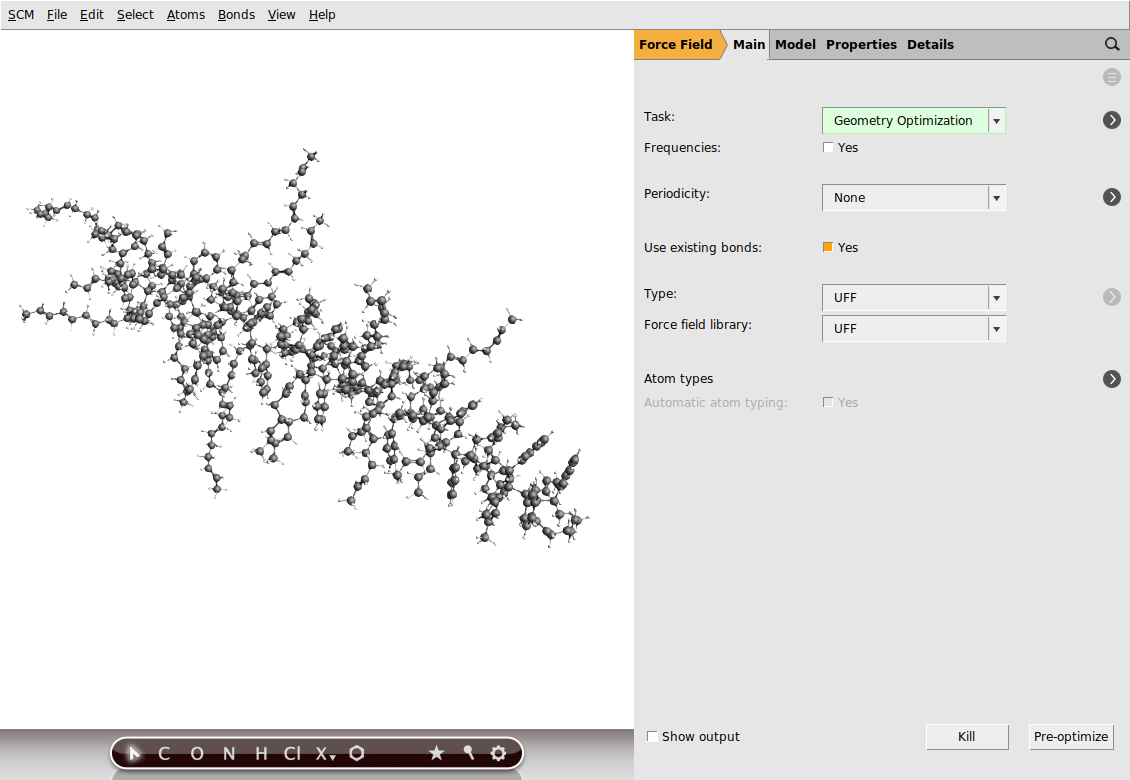

2. Select the ForceField panel: ADF → ForceField
3. Make sure the Task is set to Geometry Optimization.
/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_4.png
1. Run the job using File → Run.
2. Select your job in the upcoming AMSjobs window and click SCM → Movie.
3. Watch the running optimization in AMSmovie. It should only take a couple of minutes.

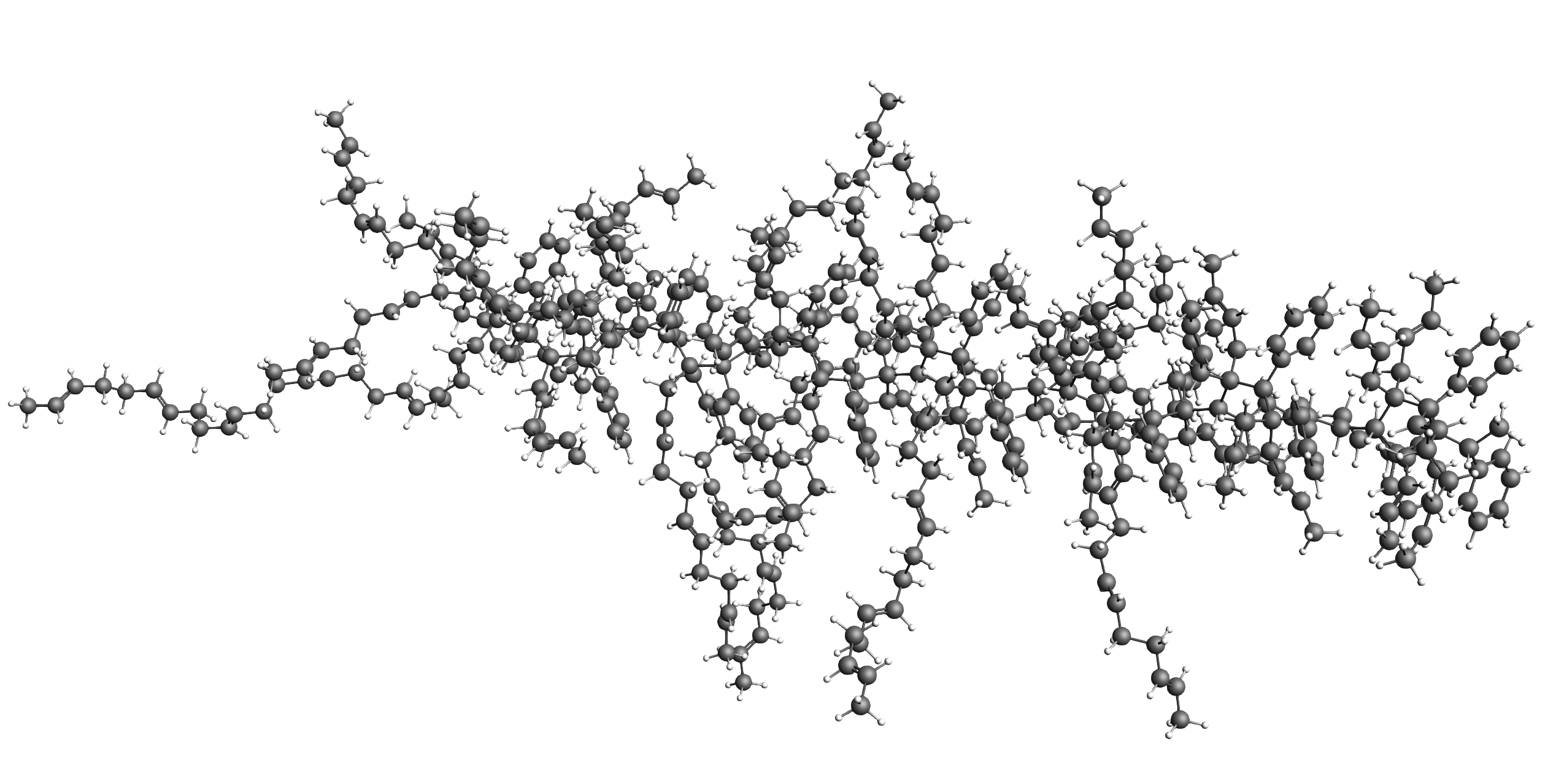

You will probably see the energy decrease a lot in the first few optimization steps where UFF resolves all the steric conflicts. Once the optimization is complete you should have a beautiful polymer:

/scm-uploads/doc.trunk/Tutorials/_images/polymer_builder_5.png

See also

In practice you may also want to build periodic boxes full of (cross-linked) polymers. Building these is harder, but can be done with biased molecular dynamics calculations using reactive force fields, see the tutorial:

Alternatively, one can pack a simulation box with polymer molecules and equilibrate them:

More tutorials on mechanical properties of polymers can be found here:
