3.5.1. Reactant

In addition to the elements, coordinates, and bonds of the reactant and product molecules, ACErxn needs a lot of information about the molecular system. This additional required data can be summarized as follows:

  1. What the smallest possible fragments of the system are. The bonds between the atoms in these fragments will never be broken.

  2. The charges of these smallest possible fragments.

  3. The stability of these smallest possible fragments. If a fragments is determined to be unstable, it will be required to undergo change in every elementary reaction of the network.

The above information can be guessed automatically by the ACErxn code if the following information is provided by the user.

  1. Which atoms in the reactant molecules are active atoms (can partake in bond breaking/forming).

  2. The charge of the reactant molecules.

  3. If there are any bonds between active atoms that can never be broken.

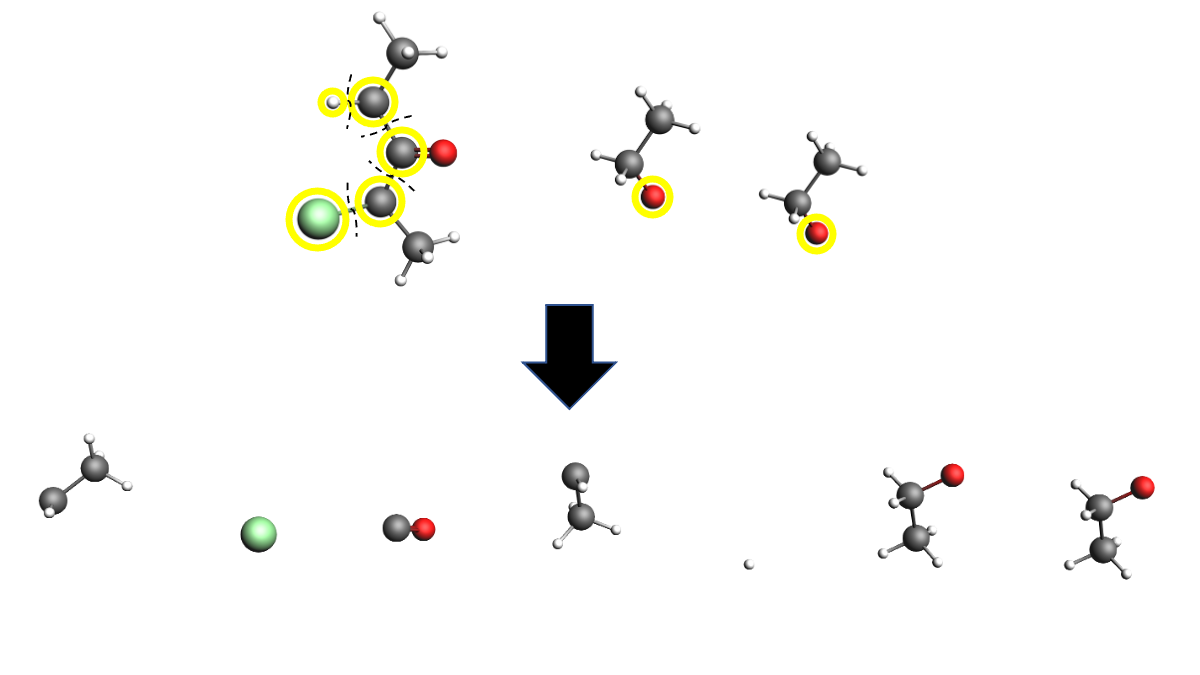

The figure below depicts an example of smallest fragments obtained from the reactant molecules and the active atoms. The molecules at the top are the reactant molecules, and the yellow-encircled atoms are active atoms.

/scm-uploads/doc/acerxn/_images/fragmentation.png

The reactant class contains all the above information on the reactant molecules required by ACErxnJob.

class Reactant(reactants, active_atoms, charges=None, min_bond_order=0.3)

Class holding all reactant and information, and the definitions of the smallest fragments. This object needs to be passed to the constructor of ACErxnJob.

List of constructor arguments:

  • reactants - list of PLAMS Molecule objects, one for each reactant molecule.

  • active_atoms - list of lists of atom indices. For each reactant molecule, the indices of the active atoms are specified.

  • charges - list of floats representing the charges of the reactant submolecules.

ACErxn needs information about the smallest possible fragments in the system. The bonds between the atoms in these fragments will never be broken in any of the reaction intermediates. The following fragment information is required.

  1. Elements, coordinates, and bonds for each fragment.

  2. The charges of the fragments.

  3. The stability of the fragments. If a fragments is determined to be unstable, an elementary reaction is only valid if this fragment undergoes change.

The above information can be guessed automatically with guess_fragments() from the input data in the constructor arguments. The guessed fragment data is then stored in instance variables. The user is strongly recommended to check and alter the fragments, their charges, and their stabilities, after calling guess_fragments(), since chemical intuition is invaluable for the outcome.

  • molecule – A single PLAMS Molecule object holding the entire reactant as a concatenation of the fragment molecules.

  • fragments – A list of PLAMS Molecule objects, one for each smallest fragment. The objects contain info about the fragment charge and stability.

  • submolecules – A list of PLAMS Molecule objects, one for each reactant molecule.

  • submolecule_indices – A list of lists of integers, linking the submolecules indices to the indices in the full molecule variable.

Example of use:

>>> from scm.plams import Molecule
>>> from scm.acerxn import Reactant

>>> reactant_filenames = ['reactant.xyz']
>>> molcharges = [0]
>>> active_atoms = [[0,12,13,15]]

>>> # Create the reactant molecules
>>> reactants = [Molecule(fn) for fn in reactant_filenames]

>>> # Create the Reactant object
>>> reactant = Reactant(reactants, active_atoms, molcharges)

>>> # Guess the fragment information
>>> reactant.guess_fragments()

>>> # Check the fragment information
>>> print ('%8s %5s %s'%('Fragment','Charge','Stability'))
>>> for i,mol in enumerate(reactant.fragments) :
>>>     print ('%8i %5.2f %s'%(i,mol.properties.charge, mol.properties.stable))

>>> print ('Indices fragments in submolecules: ')
>>> for i,mol in enumerate(reactant.fragments) :
>>>         print ('%8i '%(i),reactant.get_fragment_indices(i))

Result:

Fragment Charge Stability
       0 -1.00 False
       1  0.00 True
       2  1.00 False
Indices fragments in submolecules:
       0  (0, [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12])
       1  (0, [13, 14])
       2  (0, [15])
__len__()

Returns the length of thee sum of fragments

guess_fragments(frozen_bonds=None, products=None)

Converts the reactants to the smallest fragments used to construct the intermediates

  • frozen_bonds – list of lists of tuples of two integers. The tuples represent a bond between active atoms in a submolecule that can never be broken [[(0,1),(1,2)], [[0,1]]].

  • products – list of lists of products Molecule objects. Used to verify the stability of the fragments (if they match one of the products, they must be stable.)

Note

Cuts the reactant molecules at the active atoms, to create the fragments

set_fragments(fragment_indices, charges, stabilities)

Set user defined fragments

  • fragment_indices – For each fragment the indices of each atom in the reactant molecules {0: [[0,1,2], [3,4,5]], 1: [[0,1,2]]} Here the first two fragments came out of the reactant 0, and the last fragment out of reactant 1

  • charges – For each reactant molecule the charges of the fragments cut out of it {0: [0.,0.], 1: [0.]}

  • stabilities – For each reactant molecule the stabilities of the fragments cut out of it {0: [False, False], 1: [True]}

get_fragment_indices(ifrag, fragments=None, submolecule_indices=None)

Get the indices of the specified fragment in the reactant molecules

  • ifrag – The index of the fragment molecule for which the reactant indices should be returned.

Returns a tuple, with as the first element the index of the reactant submolecule, and as the second element a list of atom indices in the submolecule. (0, [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12])

get_fragment_indices_sumoffragments(ifrag, fragments=None)

Get the indices of the specified fragment in the sum-of-fragments

get_active_atoms()

Read the active atoms from the submolecules

write(filename=None)

Write the reactants as AMS system blocks

  • filename – Optional: The filename of an output file to whichthe system blocks should be written.

Returns a string containing the system blocks.

write_reactant(ireactant, frozen_bonds=None)

Write a reactant molecule as a single AMS input block

  • ireactant – The index of the reactant for which an AMS input block should be written.

Returns a string containing the system block.

set_regions(ireactant, fragments=None, submolecule_indices=None)

Sets the regions in each submolecule

  • ireactant – The index of the reactant for which an AMS input block should be written.

classmethod read(filename=None, text=None, guess=True)

Read reactant object from set of system blocks for reactants

  • filename – Optional argument containing a filename from which the system blocks should be read

  • text – If no filename is provided, the system block is read from this string.

  • guess – If the fragment info is not yet in the file, guess it.

classmethod from_molecules(reactants, guess=True, products=None, electronegativity_depth=1)

Create the object from a list of submolecules containing the required reactant information (active atoms, charges, frozen bonds) in the properties variables.

  • reactants – List of PLAMS Molecule objects with the charge present in mol.properties.charge, the active atom info in mol.atoms[i].properties.suffix, and the frozen bond info in mol.bonds[i].properties.suffix.

  • guess – Guess the fragment info.

  • electronegativity_depth – How many atoms are included in determining the electronegativity of a single atom (only the element itself, or the elements of the first neighbors, etc.)

Note

The reactants are read in this format with the acerxn function settings_from_amsinput.

check_fragments(fragments=None)

Check if the all fragment information has been generated.

  • fragments – Optionally a lsit of external fragment objects (PLAMS Molecule objects) can be provided here. By default, the instance variable self.fragments is used.

write_xyz(dirname='.')

Writes the reactants into a single human readable (XYZ) file

  • dirname – The path to the XYZ file to be written.

to_ace_intermediate()

Convert reactant object to internal ACE Intermediate object

Note

This method is used by ACErxnJob. It should never be necessary for the user to access an ACE Intermediate object.

get_elements()

Get the elements of the full reactant

identify_identical_fragments_with_chargedifferences()

Return groups of fragments with identical bonding, but a different charge

_prepare_state()

Separate the reactants into submolecules if needed

_guess_atomic_charges(molecule)

Set the atomic charges in a single submolecule

_adjust_stabilities(fragmol, products=None)

Adjust the guessed stabilities based on if they are present in the reactants, and possibly products

_map_to_submolecules(atoms)

Map a set of atom indices from the sum of fragments to the submolecules
