Linear Transit, PES scan¶

Distance, angle, and dihedral angle coordinates¶

The coordinate descriptors are very similar to the constraint descriptors in the Constraints block used by the geometry optimization task, but are followed by two values delimiting the start and end of the coordinates, instead of just a single value:

Coordinate atomIdx [x|y|z] startValue endValue

Moves the atom with index atomIdx (following the order in the System block) along the a cartesian coordinate (x, y or z), starting at startValue and ending at endValue (given in Angstrom).

Distance atomIdx1 atomIdx2 startDist endDist

Scans the distance between the atoms with index atomIdx1 and atomIdx2, starting from startDist and ending at endDist, both given in Angstrom.

Angle atomIdx1 atomIdx2 atomIdx3 startAngle endAngle

Scans the angle (1)–(2)–(3) between the atoms with indices atomIdx1-3, as given by their order in the System%Atoms block. The scanned angle starts at startAngle and ends at endAngle, given in degrees.

Dihedral atomIdx1 atomIdx2 atomIdx3 atomIdx4 startAngle endAngle

Scans the dihedral angle (1)–(2)–(3)–(4) between the atoms with indices atomIdx1-4, as given by their order in the System%Atoms block. The scanned dihedral starts at startAngle and ends at endAngle, given in degrees.

SumDist atomIdx1 atomIdx2 atomIdx3 atomIdx4 start end

Scans the sum of the distances R(1,2)+R(3,4) between the atoms with indices atomIdx1-4, as given by their order in the System%Atoms block. The values to be scanned start at start and end at end, given in Angstrom.

DifDist atomIdx1 atomIdx2 atomIdx3 atomIdx4 start end

Scans the difference between the distances R(1,2)-R(3,4) of the atoms with indices atomIdx1-4, as given by their order in the System%Atoms block. The values to be scanned start at start and end at end, given in Angstrom.

Joint scan coordinates¶

Note that multiple of these coordinate descriptors can be combined within a single ScanCoordinate block. This combines the individual coordinates into one compound coordinate, i.e. all coordinates will transit together through their respective ranges. In this way the symmetric stretch in water could be scanned by specifying the following single ScanCoordinate block (assuming that the oxygen atom is the first in the System%Atoms block):

ScanCoordinate
   Distance  1 2  0.8 1.1
   Distance  1 3  0.8 1.1
End

Multidimensional PES scan¶

A multidimensional PES scan can be performed by specifying multiple ScanCoordinate blocks in the input. To scan the space spanned by the bending and symmetric stretch modes in water, one would use the following scan coordinates:

ScanCoordinate
   Distance  1 2  0.8 1.1
   Distance  1 3  0.8 1.1
End
ScanCoordinate
   Angle  2 1 3  90 130
End

In principle an arbitrary number of ScanCoordinate blocks can be combined to specify the scanned configuration space. However, the total number of sample points is the product of the number of points along all coordinates, and hence grows quickly with the number of dimensions. Furthermore, only 1D (linear transit) and 2D PES scans can be visualized in the GUI. We therefore suggest sticking with <=2 dimensional PES scans. (Note that it is possible to constrain additional degrees of freedom through the Constraints block. This could be used to sample a few points along a third dimension “manually”, while still being able to see the surfaces in the GUI.)

Lattice scan coordinates for periodic systems¶

Several ways to scan lattice degrees of freedom were added to the AMS2022.1 release. Note that for each unit cell, a geometry optimization is performed. To keep the fractional coordinates fixed during the PES Scan, set GeometryOptimization%MaxIterations to 0.

There can be only one scan coordinate for lattice degrees of freedom in a single PES scan job. Also note that scan coordinates for lattice degrees of freedom may not contain other coordinate descriptors within the same scan coordinate. Is is for example not possible to have a joint scan coordinate for a concerted lattice and bond length stretch.

It is, however, perfectly fine to combine a lattice scan coordinate with another scan coordinate for a two-dimensional PES scan.

ScanCoordinate
   FromLattice
      ! lattice vectors as in System%Lattice
   End
   ToLattice
      ! ...
   End
End

Calculate properties for all PES points¶

By default the engine result files for the individual PES points are not saved on disk, as this can easily lead to huge amounts of data to be stored. This behavior can be changed with the PESScan%CalcPropertiesAtPESPoints keyword:

PESScan

CalcPropertiesAtPESPoints

Type:	Bool
Default value:	No
Description:	Whether to perform an additional calculation with properties on all the sampled points of the PES. If this option is enabled AMS will produce a separate engine output file for every sampled PES point.

Note that this performs a full single point calculation on every sampled PES point, including the calculation of any PES point properties selected in Properties block.

Troubleshooting¶

Technically all PES scan calculations are conducted as a series of geometry optimizations with constraints for the scanned coordinates, where the value of the constraint varies slowly through the scanned range. In this way every sampled point on the potential energy surface corresponds to a particular set of constraints. As with any geometry optimization, it can happen that an optimization towards a particular point on the potential energy surface does not converge. This is the most common problem encountered during PES scan calculations.

Since PES scans are implemented as a series of geometry optimizations, they are influenced by the settings used for the geometry optimizer, e.g. its convergence thresholds and the maximum number of steps before an optimization is considered to have failed. The optimizer is configured in the GeometryOptimization block, see the page on geometry optimization in the AMS manual. Note that PES scans always use the Quasi-Newton optimizer.

While tweaking the geometry optimizer’s settings can sometimes help with convergence problems, these problems can also be easily caused by errors in the user input.

A very common problem is that the geometry in the input, i.e. the System block, is incompatible with the starting values of the scanned coordinates. This would for example be the case if one wants to scan a dihedral angle from 0 to 90 degrees, but the actual angle on the input geometry is close to 90 degrees. In this case it would be better to flip the scanned range from 90 to 0 degrees, so that the input geometry already close to the first sampled point on the PES. Otherwise the optimization for the first point has to cross a very long distance on the PES, making convergence much harder. AMS automatically detects this and prints a warning. We generally advise preparing the input geometry for a PES scan by first running a geometry optimization with constraints set to lower bound of the scanned coordinate intervals.

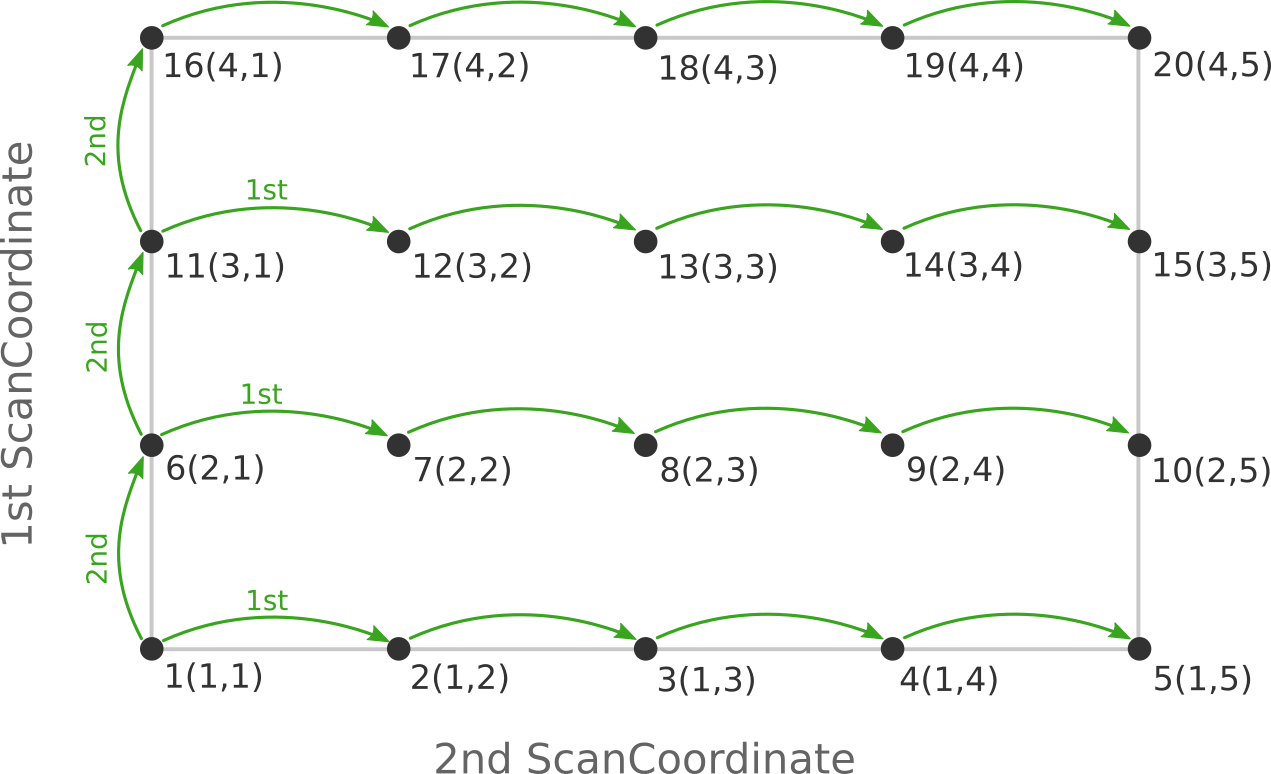

For multidimensional PES scans the order in which the PES points are visited depends on the order in which the scanned coordinates are specified, i.e. the order of the ScanCoordinate blocks in the input. Generally, the order in which the PES points are visited is such that the coordinate which was specified in the first ScanCoordinate block varies slowest. This is illustrated in the following figure:

Here the scan starts at point 1(1,1) at the bottom left corner of the PES and first moves along the entire range of the 2nd scan coordinate, before taking a step along the 1st coordinate to point 6(2,1). The same PES points could be visited in a different order (and under different names) if the order of the two ScanCoordinate blocks is reversed in the AMS input:

Depending on the shape of the scanned potential energy surface a particular order of visiting the PES points might be easier or harder for the optimizer, and convergence problems can sometimes be fixed by simply changing the order of the scanned coordinates. In the example above, it might be that scanning along the “vertical” direction is “harder” than scanning along the “horizontal” direction. In this case one should use the scan order from the first picture, which has only three “vertical” steps (whereas the other scan order has 15).

Note that AMS has a little safe-guard built in to help with PES scan convergence issues: If the optimization towards a particular PES point did not succeed in the initial attempt, AMS will later try again, but starting from a different (converged) point close to unconverged one. This “PES gap filling” happens at the very end of the calculation, after the initial scan has been completed. This gap filling step is enabled by default, but can be controlled with the PESScan%FillUnconvergedGaps keyword:

PESScan

FillUnconvergedGaps

Type:	Bool
Default value:	Yes
Description:	After the initial pass over the PES, restart the unconverged points from converged neighboring points.

Output¶

Results are printed to the text output and stored in the binary result file ams.rkf. Most information is found in the PESScan section, which references the corresponding geometries from the History section via the PESScan%HistoryIndices entry.

PESScan

Section content: Data related to the Potential Energy Surface (PES) Scan procedure.

PESScan%GOConverged

Type:	bool_array
Description:	Whether the (constrained) optimization at the various PES scan points converged.
Shape:	[nPoints]

PESScan%HistoryIndices

Type:	int_array
Description:	The indices of the frames in the History section corresponding to the PES point values.
Shape:	[nPoints]

PESScan%nPoints

Type:	int
Description:	The total number of scanned PES points. This is the product of all nPoints(#) values.

PESScan%nPoints(#)

Type:	int
Description:	Number of points along the corresponding scan coordinate.

PESScan%nScanCoord

Type:	int
Description:	Number of (independent) coordinates along which the PES scan is performed.

PESScan%PES

Type:	float_array
Description:	The total energy at each particular PES point.
Unit:	Hartree
Shape:	[nPoints]

PESScan%PESCoords

Type:	float_array
Description:	The values of all coordinates for each particular PES point.
Shape:	[:, nPoints]

PESScan%RangeEnd(#)

Type:	float_array
Description:	The final value(s) for the corresponding scan coordinate.

PESScan%RangeStart(#)

Type:	float_array
Description:	The starting value(s) for the corresponding scan coordinate.

PESScan%ScanCoord(#)

Type:	string_fixed_length
Description:	A human readable description of the scan coordinate.
