Energy Decomposition Analysis (EDA)¶

Geometry Optimizations of NH₃, BH₃ and H₃N-BH₃¶

To calculate \(\Delta E\), the energies of optimized NH₃, BH₃ and H₃N-BH₃ need to be calculated. Note that another basis set and functional can be used as well. Symmetry will be used, which may help in the analysis. Open AMSinput (SCM → New Input), and perform the following steps:

1. Create NH₃: search for ammonia, click H3N: Ammonia (ADF)

2. Symmetrize the system by clicking on

3. Select Task → Geometry Optimization

4. Select XC functional → GGA:BP86

5. Select Basis set → TZP

6. Select Numerical quality → Good

7. Run the calculation with File → Run (save with the name ammonia)

Repeat the above steps for BH₃:

Create BH₃: → Metal Complexes → ML3 Trigonal Planar.

Select the central atom, Atoms → Change Atom Type to B, then change the three “ligands” to H.

Repeat steps 2-7 above (save with the name borane).

Repeat the above steps for H₃N-BH₃.

To create H₃N-BH₃, combine the previous two systems by copying and pasting.

Repeat steps 2-7 (save with the name ammoniaborane).

EDA: single-point calculation with molecular fragments¶

When the H₃N-BH₃ calculation has finished, AMSinput will ask whether to update the coordinates.

1. Select Yes → New Job, or manually create a new job with the optimized geometry and the previous calculation settings (XC functional, basis set, numerical quality).

2. Set Task → Single Point.

3. Go in the panel bar to Model → Regions

4. Select the atoms of NH₃ and click the button next to Regions, and rename Region_1 to NH3

5. Select the atoms of BH₃ and click also on the button, and rename Region_2 to BH3.

6. Go in the panel bar to MultiLevel → Fragments

7. Check the ‘Use fragments’ check box

8. Run the calculation (save with the name EDA_ammoniaborane).

The job actually runs three separate calculations. First, single point calculations of NH₃ and BH₃ in their prepared geometry are run. The adf.rkf files of those single point computations are then used for the fragment analysis.

Bond energy, preparation energy, interaction energy¶

The energy of a calculation can be found at the bottom of the logfile (SCM → Logfile), in the output (SCM → Output), or in the binary output file (SCM → KFbrowser).

To tabulate the energies from all previous calculations, either

• use one of the above methods to get the energy for each calculation
• Build a spreadsheet summary: In AMSjobs (SCM → Jobs), select the ammonia, borane, ammoniaborane, EDA_ammoniaborane, EDA_ammoniaborane.NH3, and EDA_ammoniaborane.BH3 jobs by holding Ctrl and clicking on them. Then go to Tools → Build spreadsheet, set the Energy unit to kcal/mol, and click Do It. Save with the name report.xlsx.

Fig. 41 Spreadsheet summary of all calculations. The “Notes” and energy calculations were manually added.

The bond energy \(\Delta E\) of H₃N-BH₃ was calculated to be -31.81 kcal/mol with these settings. (-838.47 - (-444.53) - (-362.14) = -31.81)

The preparation energy for BH₃ (12.64 kcal/mol, calculated as -349.50-(-362.14)) is much larger than that for NH₃ (0.11 kcal/mol). This is because the structure of the fully relaxed NH₃ is only slightly different from the structure of the NH₃ fragment in H₃N-BH₃. However, the structure of the fully relaxed flat BH₃ (symmetry D_3h) is substantially different than the structure of the BH₃ trigonal pyramidal fragment in H₃N-BH₃ (symmetry C_3v):

The interaction energy is simply the “bond energy” output by ADF for the EDA_ammoniaborane job. This is because that job used the reactants in the prepared geometries as fragments.

EDA Analysis¶

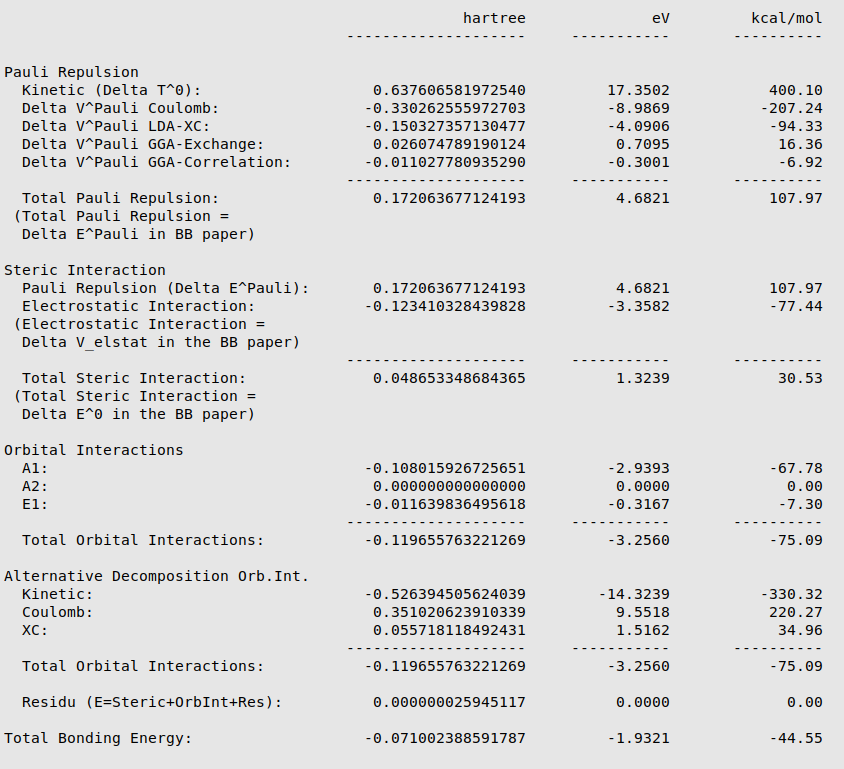

The energy decomposition of the interaction energy of H₃N-BH₃ can be found in the output file of the fragment analysis (job ammoniaborane, SCM → Output, followed by Properties → Bonding Energy Decomposition). You can find for instance that H₃N-BH₃ has an interaction energy of -44.55 kcal/mol, which consists of a Pauli repulsion of 107.97 kcal/mol, an electrostatic interaction of -77.44 kcal/mol, and an orbital interaction of -75.09 kcal/mol.

The orbital interaction is decomposed into contributions from different irreducible representations of the molecular point group. In this case the contributions from A1 (\(\sigma, \sigma^*\)-orbitals) are much more important than those from E1 (\(\pi, \pi^*\)-orbitals).

With AMSlevels the molecular orbital diagram can be visualized, in which one can see a donor-acceptor interaction and (repulsive) interactions between occupied orbitals.

1. SCM → Levels

2. In AMSlevels, click on View → Labels → Show

By right-clicking the BH₃ 2A1 fragment orbital (LUMO of BH₃, acceptor orbital) you can select the corresponding SFO (symmetrized fragment orbital), which can be visualized with AMSview. Similarly, you can select the NH₃ 2A1 fragment orbital (HOMO of NH₃, donor orbital). After some manipulations, using 50% opacity, you can get the following two AMSview windows that show these fragment orbitals.

Geometry Optimization¶

The geometry of the reactants and the product (complex) must be optimized. Note that another basis set and functional can be used as well. Symmetry will be used, which may help in the analysis.

For ethane:

1. In AMSinput make the structure or search for the structure in the search box in the panel bar

2. Symmetrize the system by clicking on

3. Select Task → Geometry Optimization

4. Select XC functional → GGA:BP86

5. Select Basis set → TZP

5. Select Numerical quality → Good

7. Run the calculation with File → Run (give an appropriate name to your calculations)

8. When the run has finished, click ‘Yes’ to import the optimized coordinates and save it

For CH₃ (methyl) an unrestricted calculation is needed:

1. In AMSinput make the structure or search for the structure in the search box in the panel bar

2. Symmetrize the system by clicking on

3. Select Task → Geometry Optimization

4. Check the Unrestricted box.

5. Enter 1.0 as Spin polarization

6. Select XC functional → GGA:BP86

7. Select Basis set → TZP

8. Select Numerical quality → Good

9. Run the calculation with File → Run (give an appropriate name to your calculations)

10. When the run has finished, click ‘Yes’ to import the optimized coordinates and save it

The bond energy of C₂H₆ can be calculated by subtracting the energies of the reactants (two CH₃) from the energy of the complex. The energies can be found at the bottom of the logfile or in the output.

The bond energy of C₂H₆ was calculated to be -93.53 kcal/mol with these settings. (-920.23 - 2*(-413.35)) = -93.53)

EDA¶

Single point calculations of the CH₃ groups in the geometry they have in the product are needed to perform an EDA. Note that one sometimes need to change the electron configuration of the fragments to make them so called ‘prepared for bonding’ in order to minimize the Pauli repulsion in the electron pair bond. This is not needed in this simple example.

1. Perform a new calculation with the optimized molecule, ethane

2. Select the Task Single Point

3. Check the Unrestricted box.

4. Select XC functional → GGA:BP86

5. Select Basis set → TZP

6. Select Numerical quality → Good

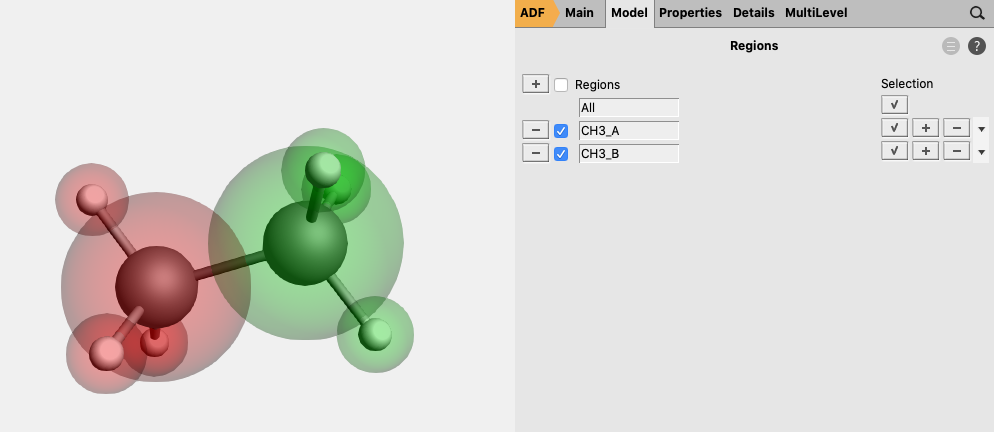

7. Go in the panel bar to Model → Regions

8. Select the atoms of one CH₃ group and click the button next to Regions

9. Select the atoms of the other CH₃ group and click also on the button

10. Go in the panel bar to MultiLevel → Fragments

11. Check the ‘Use fragments’ check box (A warning will popup regarding NOSYM symmetry)

12. Enter as spin polarization 1 for one of the fragments and -1 for the other fragment

The symmetry has been adjusted to NOSYM. However, we want to use symmetry. Besides setting the symmetry to AUTO, in this case we also need to symmetrize the coordinates again, since using fragments will lower the symmetry of ethane that ADF can use from D_3d to C_3v. Note that in this case the symmetrization will only reorient the geometry in order to fulfill the molecular orientation requirements in ADF such that ADF can use symmetry.

13. Go in the panel bar to Details → Symmetry

14. Select Symmetry → AUTO

15. Symmetrize the system by clicking on

16. Save it and run the calculation

Analysis¶

The different energies, where the interaction energy of the CH₃ groups of ethane consists of, are noted in the output (Properties → Bonding Energy Decomposition). It can be noticed that the interaction energy of -111.41 kcal/mol is build out of 180.02 kcal/mol Pauli repulsion, -125.43 kcal/mol electrostatic interaction, and -166.02 kcal/mol orbital interactions.

The orbital interaction is decomposed into contributions from different irreducible representations of the molecular point group. In this case the contributions from A1 (\(\sigma, \sigma^*\)-orbitals) are much more important than those from E1 (\(\pi, \pi^*\)-orbitals).

The bond energy was calculated previously to be -93.53 kcal/mol and accordingly the preparation energy can be calculated to be 17.88 kcal/mol (=-93.53-(-111.41)). The preparation energy for one CH₃ fragment is 8.95 kcal/mol, the difference between the bond energy of the CH₃ trigonal pyramidal fragment (-404.40 kcal/mol) and the fully relaxed planar CH₃ molecule (-413.35 kcal/mol). The preparation energy of the other CH₃ fragment is the same. Note that the energies of the fragments can be found at the bottom of the logfile or in the output of the fragments.

With AMSlevels the molecular orbital diagram can be visualized, in which one can see an electron-pair bond and (repulsive) interactions between occupied levels.

1. Dative bonding¶

These calculations are based on the paper of Jerabek et al. [3] and therefore the following level of theory is used. Perform the following steps for the Br(CO)₄W-CPh and Cl₃(dme)W-CCMe₃ complexes you just downloaded:

1. Open the geometry of the complex in AMSinput

2. Make sure that the Task is set at Single Point

3. Select the GGA:BP86-D3(BJ) XC functional and TZ2P Basis set

4. Make sure that the Relativity is set at Scalar

5. Select Frozen Core → None and Numerical quality → Good

6. Go in the panel bar to Model → Regions

7. Select the atoms of the ligand (C-tBu or C-Ph group) and click the button next to Regions

8. Select all other atoms of the complex (by Select → Invert Selection) and click the button again

9. Go in the panel bar to MultiLevel → Fragments

10. Tick the Use fragments box (the Check charge and spin box and no symmetry will be set)

11. Enter as charge for the ligand fragment 1.0 and for the other fragment -1.0

13. Go in the panel bar to Properties → ETS-NOCV

14. Select an Closed-Shell ETS-NOCV analysis

15. Run the calculation

Note that one may have SCF problems for the fragment [Cl₃(dme)W]^-1

In this case both charged fragments are calculated in the singlet state.

SCF problems¶

The fragment [Cl₃(dme)W]^-1 has problems with SCF convergence. It is difficult (or impossible) to converge the SCF with an aufbau solution. Therefore one can use an explicit non-aufbau electron configuration. Note that the following is an expert option. If you do not include the next expert steps you may get a different non-aufbau solution, and thus a different energy decomposition analysis for Cl₃(dme)W-CCMe₃ for this case of charged fragments.

Relevant only for the fragment [Cl₃(dme)W]^-1 of Cl₃(dme)W-CCMe₃

Open the fragment [Cl₃(dme)W]^-1 AMSinput

Go in the panel bar to Details → Run Script

Enter in Engine ADF part:

IrrepOccupations

A 148 0 0 2 2

End

Select File → Save

Close the fragment [Cl₃(dme)W]^-1 AMSinput

Open the Cl₃(dme)W-CCMe₃ AMSinput

Run the calculation

2. Electron-sharing bonding¶

To analyse the electron-sharing bonding of [TM]-L, step 1-8 must be performed again. After that, the following steps can be made:

9. In the Main panel bar tick the box for an Unrestricted calculation

10. Go in the panel bar to MultiLevel → Fragments

11. Tick the Use fragments box (the Check charge and spin box and no symmetry will be set)

12. Enter as spin polarization for the ligand fragment 3.0 and for the other fragment -3.0 (the charges should be set to 0 for both fragments).

13. Go in the panel bar to Properties → ETS-NOCV

14. Select an Open-Shell ETS-NOCV analysis

15. Run the calculation

In this case both neutral fragments are calculated in the quartet state (more precisely they have |S_z|=3/2).

3. Dative/Electron‐sharing bonding¶

To analyse the mixed dative/electron‐sharing bonding of [TM]-L, the steps for the electron-sharing must be performed again, apart from step 12, which should be

12. In the panel bar MultiLevel → Fragments enter as spin polarization for the ligand fragment 1.0 and for the other fragment -1.0 (the charges should be set to 0 for both fragments).

such that both neutral fragments are calculated in the doublet state (more precisely they have |S_z|=1/2). Note that the fragment CCMe₃ has near degenerate solutions in case it is calculated in the doublet state, and that one solution may have a corresponding electron configuration that may be better ‘prepared for bonding’ than another. This will not be investigated further.

EDA¶

The different energy terms of the interaction between the ligand and its transitions state complex are noted in the output (Properties → Bonding Energy Decomposition). The following energy terms will be found for Br(CO)₄W-CPh and Cl₃(dme)W-CCMe₃ (in kcal/mol):

The method which results in an orbital interaction closer to zero gives the commonly accepted chemical interpretation (dative or electron-sharing), see Ref. [3].

For the Fischer-type carbyne complex Br(CO)₄W-CPh the orbital interaction is closer to zero for the dative/electron sharing bonding with an orbital interaction of -224.3 kcal/mol (vs -239.6 or -275.3 kcal/mol).

For the Schrock-type carbyne complex Cl₃(dme)W-CCMe₃ the orbital interaction is closer to zero for the electron-sharing bonding with an orbital interaction of -261.3 kcal/mol (vs -420.1 or -468.6 kcal/mol).

EDA-NOCV Fischer‐type carbyne complex¶

The best description for the Fischer‐type carbyne complex Br(CO)₄W-CPh is found for neutral fragments in their electronic doublet state (|S_z|=1/2), which engage in a mixture of dative bonding (σ donation and π backdonation) and one electron‐sharing π bond, as can be seen in the next NOCV analysis.

Go to AMSjobs

Select the Br(CO)₄W-CPh job with neutral fragments in their electronic doublet state (the third job, dative/electron-sharing bonding)

Open AMSview (SCM → View)

Select Fields → Grid → Medium)

Select Add → Isosurface: With Phase)

In the field select menu on the bottom: select NOCV Def Densities…

Select NOCV_Def_Density with largest eigenvalue

Change isosurface value to 0.01

Repeat this for NOCV_Def_Density with the 5 highest eigenvalues

The direction of the charge flow from fragments to full complex in the next pictures is from red → blue. The orbital interaction energy contributions from each NOCV pair can be found in the output (Properties → ETS - NOCV).

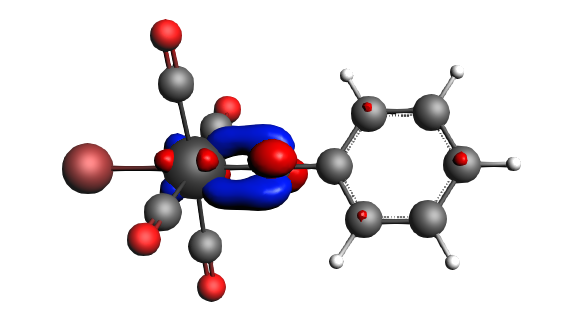

α-Δρ ΔE=-80 kcal/mol (|v|=1.00), electron‐sharing π bond. The transfer of a whole electron (|v|=1.00) indicates that there probably is an electron configuration of the fragments that may be better ‘prepared for bonding’, however, that will not be investigated here further.

left: β-Δρ ΔE=-30 kcal/mol (|v|=0.54), right: β-Δρ ΔE=-39 kcal/mol (|v|=0.53), π backdonation

left: β-Δρ ΔE=-30 kcal/mol (|v|=0.34), right: α-Δρ ΔE=-29 kcal/mol (|v|=0.34), σ donation

EDA-NOCV Schrock‐type carbyne complex¶

The best description for the Schrock‐type carbyne complex Cl₃(dme)W-CCMe₃ is found for neutral fragments in their electronic quartet state ((|S_z|=3/2), which engage in one electron-sharing σ bond and two electron‐sharing π bonds, as can be seen in the next NOCV analysis.

Go to AMSjobs

Select the Cl₃(dme)W-CCMe₃ job with neutral fragments in their electronic quartet state (the second job, electron-sharing bonding)

Open AMSview (SCM → View)

Select Fields → Grid → Medium

Select Add → Isosurface: With Phase

In the field select menu on the bottom: select NOCV Def Densities…

Select NOCV_Def_Density with largest eigenvalue

Change isosurface value to 0.01

Repeat this for NOCV_Def_Density with the 6 highest eigenvalues

The direction of the charge flow from fragments to full complex in the next pictures is from red → blue. The orbital interaction energy contributions from each NOCV pair can be found in the output (Properties → ETS - NOCV).

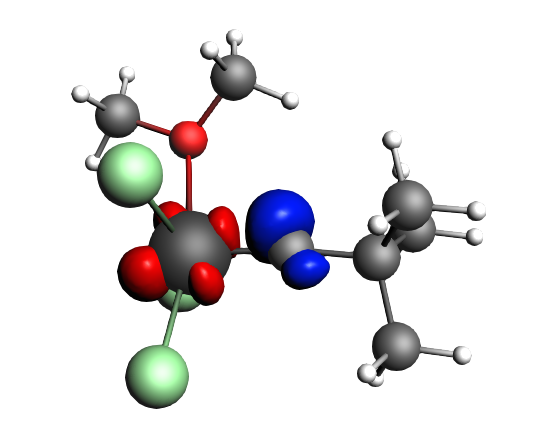

top-left: α-Δρ ΔE=-32 kcal/mol (|v|=0.65), top-right: β-Δρ ΔE=-37 kcal/mol (|v|=0.65), bottom-left: α-Δρ ΔE=-30 kcal/mol (|v|=0.62), bottom-right: β-Δρ ΔE=-51 kcal/mol (|v|=0.55), two electron‐sharing π bonds

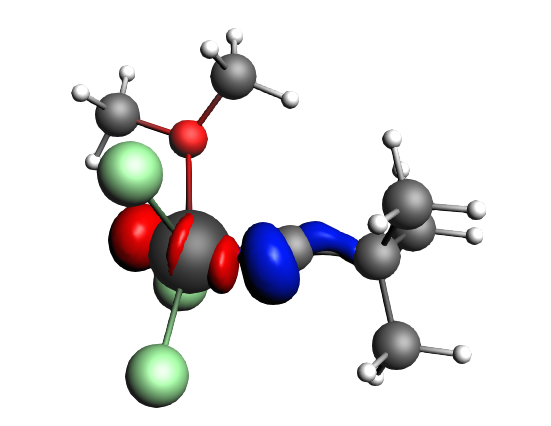

left: β-Δρ ΔE=-73 kcal/mol (|v|=0.54), right: α-Δρ ΔE=-33 kcal/mol (|v|=0.42), one electron-sharing σ bond
