Molecule substitution: Attach ligands to substrates

../../_images/MoleculeSubstitution_20_0.png ../../_images/MoleculeSubstitution_22_0.svg

Script showing how to created substituted benzene molecules using PLAMS, by combining a benzene molecule with a different molecule and defining one bond on each molecule (the “connector”) to break and where a new bond will be formed.

Note: This example requires AMS2023 or later.

To follow along, either

Worked Example

Initial imports

from scm.plams import *
import matplotlib.pyplot as plt
from rdkit import Chem
from rdkit.Chem import Draw
from rdkit.Chem.Draw import IPythonConsole
from rdkit.Chem import AllChem
from typing import List

IPythonConsole.ipython_useSVG = True
IPythonConsole.molSize = 250, 250

Helper class and function

The MoleculeConnector class and substitute() method below are convenient to use.

class MoleculeConnector:
    def __init__(self, molecule, connector, name="molecule"):
        self.name = name
        self.molecule = molecule
        self.molecule.properties.name = name
        self.connector = connector  # 2-tuple of integers, unlike the Molecule.substitute() method which uses two atoms

    def __str__(self):
        return f"""
Name: {self.name}
{self.molecule}
Connector: {self.connector}. This means that when substitution is performed atom {self.connector[0]} will be kept in the substituted molecule. Atom {self.connector[1]}, and anything connected to it, will NOT be kept.
        """


def substitute(substrate: MoleculeConnector, ligand: MoleculeConnector):
    """
    Returns: Molecule with the ligand added to the substrate, replacing the respective connector bonds.
    """
    molecule = substrate.molecule.copy()
    molecule.substitute(
        connector=(molecule[substrate.connector[0]], molecule[substrate.connector[1]]),
        ligand=ligand.molecule,
        ligand_connector=(ligand.molecule[ligand.connector[0]], ligand.molecule[ligand.connector[1]]),
    )
    return molecule


def set_atom_indices(rdmol: Chem.rdchem.Mol, start=0):
    for atom in rdmol.GetAtoms():
        atom.SetAtomMapNum(atom.GetIdx() + start)  # give 1-based index
    return rdmol


def to_lewis(molecule: Molecule, template=None, regenerate: bool = True):
    if isinstance(molecule, Chem.rdchem.Mol):
        rdmol = molecule
    else:
        rdmol = to_rdmol(molecule)
    if regenerate:
        rdmol = Chem.RemoveHs(rdmol)
        smiles = Chem.MolToSmiles(rdmol)
        rdmol = Chem.MolFromSmiles(smiles)
    if template is not None:
        AllChem.GenerateDepictionMatching2DStructure(rdmol, template)
    try:
        if molecule.properties.name:
            rdmol.SetProp("_Name", molecule.properties.name)
    except AttributeError:
        pass
    return rdmol


def smiles2template(smiles: str):
    template = Chem.MolFromSmiles(smiles)
    AllChem.Compute2DCoords(template)
    return template


def draw_lewis_grid(
    molecules: List[Molecule],
    molsPerRow: int = 4,
    template_smiles: str = None,
    regenerate: bool = False,
    draw_atom_indices: bool = False,
    draw_legend: bool = True,
):
    template = None
    if template_smiles:
        template = smiles2template(template_smiles)

    rdmols = [to_lewis(x, template=template, regenerate=regenerate) for x in molecules]
    if draw_atom_indices:
        for rdmol in rdmols:
            set_atom_indices(rdmol, start=1)
    legends = None
    if draw_legend:
        try:
            legends = [x.properties.name or f"mol{i}" for i, x in enumerate(molecules)]
        except AttributeError:
            pass

    return Draw.MolsToGridImage(rdmols, molsPerRow=molsPerRow, legends=legends)

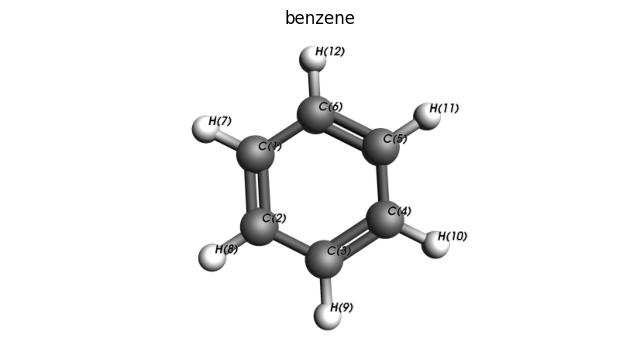

Generate substrate molecule

substrate_smiles = "c1ccccc1"
substrate = from_smiles(substrate_smiles, forcefield="uff")
substrate.properties.name = "benzene"

plot_molecule(substrate)
plt.title(substrate.properties.name);
../../_images/MoleculeSubstitution_5_0.png

Find out which bond to cleave

In the molecule you need to define which bond to cleave. To find out, run for example

substrate.write("substrate.xyz")

Then open substrate.xyz in the AMS GUI and find that atoms 6 (C) and 12 (H) are bonded. We will choose this bond to cleave.

Alternatively, we can plot the molecule inside a Jupyter notebook with RDkit to also find that atoms 6 (C) and 12 (H) are bonded.

draw_lewis_grid([substrate], draw_atom_indices=True, draw_legend=False)
../../_images/MoleculeSubstitution_10_0.svg
substrate_connector = MoleculeConnector(
    substrate, (6, 12), "phenyl"
)  # benzene becomes phenyl when bond between atoms 6,12 is cleaved

Define ligands

Similarly for the ligand, if you do not know which bond to cleave, write the molecule to a .xyz file and find out.

Or plot it with rdkit in the Jupyter notebook.

Note: The ligands below have an extra hydrogen or even more atoms compared to the name that they’re given.

ligands = [
    MoleculeConnector(
        from_smiles("CCOC(=O)C", forcefield="uff"), (3, 2), "acetate"
    ),  # ethyl acetate, bond from O to C cleaved
    MoleculeConnector(
        from_smiles("O=NO", forcefield="uff"), (3, 4), "nitrite"
    ),  # nitrous acid, bond from O to H cleaved
    MoleculeConnector(
        from_smiles("Cl", forcefield="uff"), (1, 2), "chloride"
    ),  # hydrogen chloride, bond from Cl to H cleaved
    MoleculeConnector(from_smiles("c1ccccc1", forcefield="uff"), (6, 12), "phenyl"),  # benzene, bond to C to H cleaved
]

ligand_molecules = [ligand.molecule for ligand in ligands]

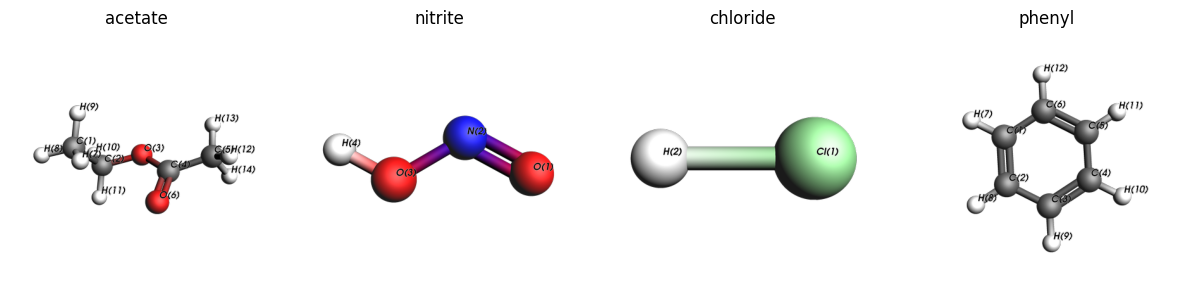

fig, axes = plt.subplots(1, len(ligands), figsize=(15, 3))

for ax, ligand in zip(axes, ligands):
    plot_molecule(ligand.molecule, ax=ax)
    ax.set_title(ligand.name)
../../_images/MoleculeSubstitution_14_0.png
draw_lewis_grid(ligand_molecules, draw_atom_indices=True, draw_legend=False, molsPerRow=4)
../../_images/MoleculeSubstitution_15_0.svg

Above we see that cleaving the bonds from O(3)-C(2), O(3)-H(4), Cl(1)-H(2), and C(6)-H(12) will give the acetate, nitrite, chloride, and phenyl substituents, respectively.

Generate substituted molecules

mols = []

for ligand in ligands:
    mol = substitute(substrate_connector, ligand)
    mol.properties.name = f"{substrate_connector.name}--{ligand.name}"
    mols.append(mol)
    print(f"Writing {mol.properties.name}.xyz")
    mol.write(f"{mol.properties.name}.xyz")
    print(f"{mol.properties.name} formula: {mol.get_formula(as_dict=True)}")
Writing phenyl--acetate.xyz
phenyl--acetate formula: {'C': 8, 'H': 8, 'O': 2}
Writing phenyl--nitrite.xyz
phenyl--nitrite formula: {'C': 6, 'H': 5, 'O': 2, 'N': 1}
Writing phenyl--chloride.xyz
phenyl--chloride formula: {'C': 6, 'H': 5, 'Cl': 1}
Writing phenyl--phenyl.xyz
phenyl--phenyl formula: {'C': 12, 'H': 10}

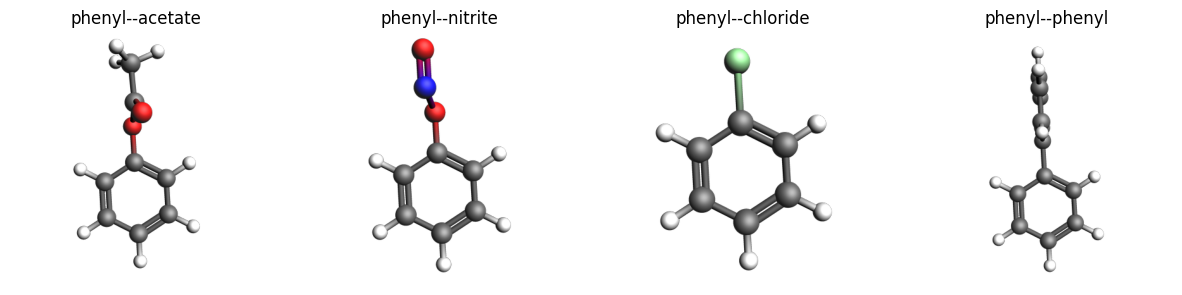

Plot 3D structures with PLAMS / ASE

fig, axes = plt.subplots(1, len(mols), figsize=(15, 3))

for ax, mol in zip(axes, mols):
    plot_molecule(mol, ax=ax)
    ax.set_title(mol.properties.name)
../../_images/MoleculeSubstitution_20_0.png

Plot 2D Lewis structures with RDKit

The molecules can be aligned by using a benzene template. The regenerate option regenerates the molecule with RDkit to clean up the atomic positions.

draw_lewis_grid(mols, template_smiles=substrate_smiles, regenerate=True)
../../_images/MoleculeSubstitution_22_0.svg

Complete Python code

#!/usr/bin/env amspython
# coding: utf-8

# ## Initial imports

from scm.plams import *
import matplotlib.pyplot as plt
from rdkit import Chem
from rdkit.Chem import Draw
from rdkit.Chem.Draw import IPythonConsole
from rdkit.Chem import AllChem
from typing import List

IPythonConsole.ipython_useSVG = True
IPythonConsole.molSize = 250, 250


# ## Helper class and function
#
# The ``MoleculeConnector`` class and ``substitute()`` method below are convenient to use.


class MoleculeConnector:
    def __init__(self, molecule, connector, name="molecule"):
        self.name = name
        self.molecule = molecule
        self.molecule.properties.name = name
        self.connector = connector  # 2-tuple of integers, unlike the Molecule.substitute() method which uses two atoms

    def __str__(self):
        return f"""
Name: {self.name}
{self.molecule}
Connector: {self.connector}. This means that when substitution is performed atom {self.connector[0]} will be kept in the substituted molecule. Atom {self.connector[1]}, and anything connected to it, will NOT be kept.
        """


def substitute(substrate: MoleculeConnector, ligand: MoleculeConnector):
    """
    Returns: Molecule with the ligand added to the substrate, replacing the respective connector bonds.
    """
    molecule = substrate.molecule.copy()
    molecule.substitute(
        connector=(molecule[substrate.connector[0]], molecule[substrate.connector[1]]),
        ligand=ligand.molecule,
        ligand_connector=(ligand.molecule[ligand.connector[0]], ligand.molecule[ligand.connector[1]]),
    )
    return molecule


def set_atom_indices(rdmol: Chem.rdchem.Mol, start=0):
    for atom in rdmol.GetAtoms():
        atom.SetAtomMapNum(atom.GetIdx() + start)  # give 1-based index
    return rdmol


def to_lewis(molecule: Molecule, template=None, regenerate: bool = True):
    if isinstance(molecule, Chem.rdchem.Mol):
        rdmol = molecule
    else:
        rdmol = to_rdmol(molecule)
    if regenerate:
        rdmol = Chem.RemoveHs(rdmol)
        smiles = Chem.MolToSmiles(rdmol)
        rdmol = Chem.MolFromSmiles(smiles)
    if template is not None:
        AllChem.GenerateDepictionMatching2DStructure(rdmol, template)
    try:
        if molecule.properties.name:
            rdmol.SetProp("_Name", molecule.properties.name)
    except AttributeError:
        pass
    return rdmol


def smiles2template(smiles: str):
    template = Chem.MolFromSmiles(smiles)
    AllChem.Compute2DCoords(template)
    return template


def draw_lewis_grid(
    molecules: List[Molecule],
    molsPerRow: int = 4,
    template_smiles: str = None,
    regenerate: bool = False,
    draw_atom_indices: bool = False,
    draw_legend: bool = True,
):
    template = None
    if template_smiles:
        template = smiles2template(template_smiles)

    rdmols = [to_lewis(x, template=template, regenerate=regenerate) for x in molecules]
    if draw_atom_indices:
        for rdmol in rdmols:
            set_atom_indices(rdmol, start=1)
    legends = None
    if draw_legend:
        try:
            legends = [x.properties.name or f"mol{i}" for i, x in enumerate(molecules)]
        except AttributeError:
            pass

    return Draw.MolsToGridImage(rdmols, molsPerRow=molsPerRow, legends=legends)


# ## Generate substrate molecule

substrate_smiles = "c1ccccc1"
substrate = from_smiles(substrate_smiles, forcefield="uff")
substrate.properties.name = "benzene"

plot_molecule(substrate)
plt.title(substrate.properties.name)


# ## Find out which bond to cleave

# In the molecule you need to define which bond to cleave. To find out, run for example

substrate.write("substrate.xyz")


# Then open ``substrate.xyz`` in the AMS GUI and find that atoms 6 (C) and 12 (H) are bonded. We will choose this bond to cleave.
#
# Alternatively, we can plot the molecule inside a Jupyter notebook with RDkit to also find that atoms 6 (C) and 12 (H) are bonded.

draw_lewis_grid([substrate], draw_atom_indices=True, draw_legend=False)


substrate_connector = MoleculeConnector(
    substrate, (6, 12), "phenyl"
)  # benzene becomes phenyl when bond between atoms 6,12 is cleaved


# ## Define ligands

# Similarly for the ligand, if you do not know which bond to cleave, write the molecule to a .xyz file and find out.
#
# Or plot it with rdkit in the Jupyter notebook.
#
# **Note**: The ligands below have an extra hydrogen  or even more atoms compared to the name that they're given.

ligands = [
    MoleculeConnector(
        from_smiles("CCOC(=O)C", forcefield="uff"), (3, 2), "acetate"
    ),  # ethyl acetate, bond from O to C cleaved
    MoleculeConnector(
        from_smiles("O=NO", forcefield="uff"), (3, 4), "nitrite"
    ),  # nitrous acid, bond from O to H cleaved
    MoleculeConnector(
        from_smiles("Cl", forcefield="uff"), (1, 2), "chloride"
    ),  # hydrogen chloride, bond from Cl to H cleaved
    MoleculeConnector(from_smiles("c1ccccc1", forcefield="uff"), (6, 12), "phenyl"),  # benzene, bond to C to H cleaved
]

ligand_molecules = [ligand.molecule for ligand in ligands]

fig, axes = plt.subplots(1, len(ligands), figsize=(15, 3))

for ax, ligand in zip(axes, ligands):
    plot_molecule(ligand.molecule, ax=ax)
    ax.set_title(ligand.name)


draw_lewis_grid(ligand_molecules, draw_atom_indices=True, draw_legend=False, molsPerRow=4)


# Above we see that cleaving the bonds from O(3)-C(2), O(3)-H(4), Cl(1)-H(2), and C(6)-H(12) will give the acetate, nitrite, chloride, and phenyl substituents, respectively.

# ## Generate substituted molecules

mols = []

for ligand in ligands:
    mol = substitute(substrate_connector, ligand)
    mol.properties.name = f"{substrate_connector.name}--{ligand.name}"
    mols.append(mol)
    print(f"Writing {mol.properties.name}.xyz")
    mol.write(f"{mol.properties.name}.xyz")
    print(f"{mol.properties.name} formula: {mol.get_formula(as_dict=True)}")


# ## Plot 3D structures with PLAMS / ASE

fig, axes = plt.subplots(1, len(mols), figsize=(15, 3))

for ax, mol in zip(axes, mols):
    plot_molecule(mol, ax=ax)
    ax.set_title(mol.properties.name)


# ## Plot 2D Lewis structures with RDKit
#
# The molecules can be aligned by using a benzene template. The ``regenerate`` option regenerates the molecule with RDkit to clean up the atomic positions.

draw_lewis_grid(mols, template_smiles=substrate_smiles, regenerate=True)
