Table molecule counts and bond count from reactive MD ams.rkf¶

#!/usr/bin/env amspython
import os
import sys
from collections import Counter

import matplotlib.pyplot as plt
import numpy as np
from scm.plams import *

"""

Example printing a table of the AMS Molecule analysis and/or AMS Bond analysis
from reactive MD simulations.

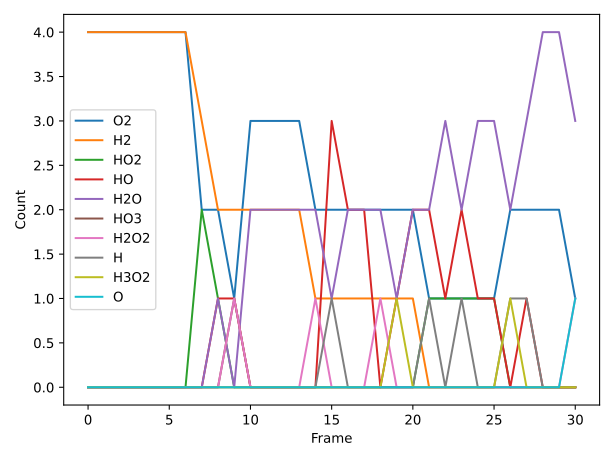

For molecules, for each species and frame, print the number of species in that
frame to molecule_analysis.txt and the corresponding plot in
molecule_analysis.pdf.

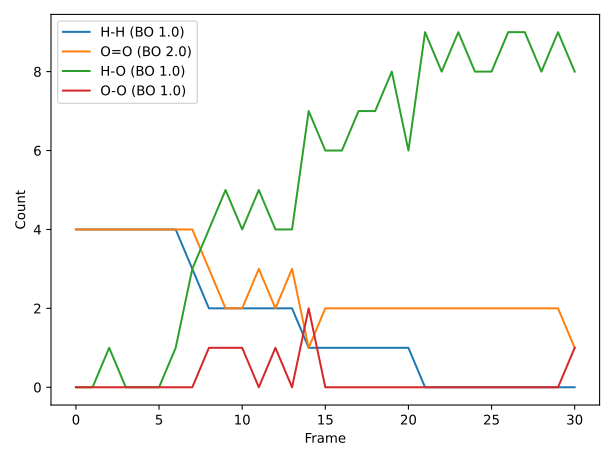

For bonds, for each frame, print the number of bonds per type in that frame to
bond_analysis.txt and the corresponding plot to bond_analysis.pdf.  At the top
of the main() function, set whether to round the bond orders to the nearest
integer or half-integer.

You can comment out the molecule/bonds/print/plot functions to fit your needs.

Usage: $AMSBIN/amspython MoleculesTable.py /path/to/ams.rkf

If no /path/to/ams.rkf is provided, the script will run a short toy MD with
ReaxFF to illustrate the analysis (requires a ReaxFF license).

"""


def main():
    round_type = "integer"  # round bond orders to nearest integer
    # round_type = 'half_integer' # round bond orders to nearest half integer

    if len(sys.argv) > 2:
        print("Usage: $AMSBIN/amspython MoleculesTable.py /path/to/ams.rkf")
        print("   or: $AMSBIN/amspython MoleculesTable.py")
        exit(1)

    elif len(sys.argv) == 2:
        ams_rkf_path = sys.argv[1]

    elif len(sys.argv) == 1:
        # Run a short combustion MD with ReaxFF
        ams_rkf_path = run_md()

    try:
        # Molecule analysis
        names, counts_list = analyze_molecules(ams_rkf_path)
        molecule_analysis_table = table_results(names, counts_list)
        with open("molecule_analysis.txt", "w") as f:
            f.write(molecule_analysis_table)
        plot_results(names, counts_list, "molecule_analysis.pdf")

        # Bond analysis
        names, counts_list = analyze_bonds(ams_rkf_path, round_type)
        bond_analysis_table = table_results(names, counts_list)
        with open("bond_analysis.txt", "w") as f:
            f.write(bond_analysis_table)
        plot_results(names, counts_list, "bond_analysis.pdf")

    except Exception as e:
        print(e)
        exit(1)


def table_results(names, counts_list):
    """
    This function returns the results in a space-separated table.

    names: list of str
        Molecule names

    counts_list: list of list of int
        List with dimensions nFrames x nMoleculeTypes
    """
    ret = ["frame " + " ".join(names)]

    for frame, counts in enumerate(counts_list, 1):
        line = f"{frame} " + " ".join(str(x) for x in counts)
        ret.append(line)

    return "\n".join(ret)


def plot_results(names, counts_list, filename=None):
    """
    Plot the results as Count vs. frame
    """
    data = np.array(counts_list).T
    for i, name in enumerate(names, 0):
        plt.plot(data[i], label=name)
    plt.legend()
    plt.xlabel("Frame")
    plt.ylabel("Count")
    plt.tight_layout()
    if filename:
        plt.savefig(filename)
    plt.show()


def round_off(number, rtype="integer"):
    """
    Round off bond order to integer or half integer.
    """
    if rtype == "half_integer":
        number = round(number * 2) / 2
    if rtype == "integer":
        number = round(number)
    return number


def bo2symbol(bo):
    """
    Convert bond order to bond symbol.
    """
    s = "---"
    if bo == 0.5:
        s = "--"
    if bo == 1.0:
        s = "-"
    if bo == 1.5:
        s = "=="
    if bo == 2.0:
        s = "="
    if bo == 2.5:
        s = "≡≡"
    if bo == 3.0:
        s = "≡"
    return s


def analyze_molecules(ams_rkf_path):
    """
    ams_rkf_path: str
        Path to an ams.rkf file from a reactive MD simulation

    Returns: 2-tuple (names, counts)
        ``names``: list of length nMoleculesTypes. ``counts``: list of
        length nFrames, each item a list of length nMoleculesTypes
        containing an integer with the number of molecules of that type at
        the particular frame.

    """

    if not os.path.exists(ams_rkf_path):
        raise FileNotFoundError(f"Couldn't find the file {ams_rkf_path}")

    job = AMSJob.load_external(ams_rkf_path)

    try:
        n_molecules = job.results.readrkf("Molecules", "Num molecules")
    except KeyError:
        raise KeyError(
            "Couldn't find Molecules section on ams.rkf. You need to enable MolecularDynamics%Trajectory%WriteMolecules (before running the MD simulation)."
        )

    # get the names of the molecules (molecular formula)
    molecule_type_range = range(1, n_molecules + 1)  # 1, 2, ..., n_molecules
    names = [job.results.readrkf("Molecules", f"Molecule name {i}") for i in molecule_type_range]

    # read the Mols.Type from each History element
    mols_type_list = job.results.get_history_property("Mols.Type")  # list of length nFrames
    counts_list = []

    # loop over the frames
    # store the counts-per-molecule-type in counts_list
    for mols_types in mols_type_list:
        counts = Counter(mols_types)
        counts_list.append([counts[x] for x in molecule_type_range])

    return names, counts_list


def analyze_bonds(ams_rkf_path, round_type):
    """
    ams_rkf_path: str
        Path to an ams.rkf file from a reactive MD simulation

    Returns: dict (number of bond type)
        Each element of the dict are a list of length nframes containing
        the occurence of every bond type at a given frame.
    """

    if not os.path.exists(ams_rkf_path):
        raise FileNotFoundError(f"Couldn't find the file {ams_rkf_path}")

    job = AMSJob.load_external(ams_rkf_path)

    trajectory = Trajectory(job.results.rkfpath())
    # Loop over frames
    allbonds = {}
    nframes = len(trajectory)
    for iframe, imol in enumerate(trajectory, 1):

        bonds, btype = [], []
        # mol.bonds double count bonds
        for bond in imol.bonds:

            # Bond indices and symbols
            b_atoms = [bond.atom1, bond.atom2]
            b_symbols = [bond.atom1.symbol, bond.atom2.symbol]
            sorted_symbols = sorted(b_symbols)

            # If bond has not yet been counted
            if b_atoms not in bonds:
                # Compute BO and add bond to list
                sorted_symbols.append(round_off(bond.order, round_type))
                btype.append(sorted_symbols)
                bonds.append(b_atoms)
                bonds.append([b_atoms[1], b_atoms[0]])

        # Loop over unique bonds
        btype_set = set(tuple(row) for row in btype)
        for ibtype in btype_set:
            # Count how many bond of given type
            n_ibond = btype.count(list(ibtype))
            b_tag = ibtype[0] + bo2symbol(ibtype[2]) + ibtype[1]
            b_label = "{:s} (BO {:2.1f})".format(b_tag, ibtype[-1])
            # If new bond at frame iframe then create zeros
            if b_label not in allbonds:
                allbonds[b_label] = [0.0] * (nframes)
            allbonds[b_label][iframe - 1] = n_ibond

        # Counter
        if iframe % 10 == 1:
            print("Currently at frame {:d}/{:d}".format(iframe, nframes))

    # Convert dictionary to counts_list
    names, counts_list = [name for name in allbonds], []
    for iframe, imol in enumerate(trajectory, 1):
        counts_list_iframe = []
        for name in names:
            counts_list_iframe.append(allbonds[name][iframe - 1])
        counts_list.append(counts_list_iframe)

    return names, counts_list


def run_md():
    """
    Define the simulation box as mixture of H2/O2 and run a short NVE at high T
    """

    o2 = from_smiles("O=O")
    h2 = from_smiles("[HH]")
    mixture = packmol(molecules=[o2, h2], n_molecules=[4, 4], density=1.0)

    s = Settings()
    s.input.reaxff.forcefield = "CHO.ff"
    s.input.ams.task = "MolecularDynamics"
    s.input.ams.MolecularDynamics.Nsteps = 3000
    s.input.ams.MolecularDynamics.Timestep = 0.5
    s.input.ams.MolecularDynamics.InitialVelocities.Temperature = 3500

    job = AMSJob(settings=s, molecule=mixture, name="md")
    job.run(watch=True)

    return job.results.rkfpath()


if __name__ == "__main__":
    main()
