QTAIM (Bader), localized orbitals and conceptual DFT¶

QTAIM analysis of an Adenine–Thymine base pair¶

Start AMSinput

Next we need the structure of the Adenine–Thymine (AT) base pair:

1. Click on the Structure tool and select DNA → AT

2. Click on the molecule drawing area to add the AT base pair

You should now see the AT base pair in the molecule drawing area.

QTAIM cannot be used in combination with relativistic effects, so we need to disable them:

In the main panel, select Relativity → None

Now we want to activate the QTAIM analysis to find the critical points and bond paths. To find where this option is located, search for it:

Activate the search box (cmd/ctrl-F)

Type ‘criti’ in the search box

Click on the first hit: ‘QTAIM’

(Alternatively, click on Properties → QTAIM )

AMSinput will switch to the panel that displays the option you are looking for (to calculate the AIM critical points and paths). The matching input options will be marked with blue italic text. Note that the input option search will restrict the search to panels that belong to the current method (ADF, BAND, DFTB, …)

Tick the Perform QTAIM analysis check-box

Set the Analysis level to Full (to get atomic properties, basins and other descriptors in addition to the critical points and paths)

Now we are ready to run the calculation.

To run the calculation: File → Run

A dialog will pop up in which you must specify a filename to use for your job, for example ‘AT’:

Enter ‘AT’ as a Filename, press the Save button

After hitting the save button the calculation will start. You will get a new AMSjobs window that allows you to manage your jobs and keep track of their state (for example, queued or running). For a running job, there will be two lines showing the progress. To get more information you can show the logfile in a new window:

Click on the two lines showing the progress

Depending on your computer, the calculation should be ready after a few minutes at most.

Once the calculation is finished, use AMSview to visualize the results. To visualize the critical points and bond paths:

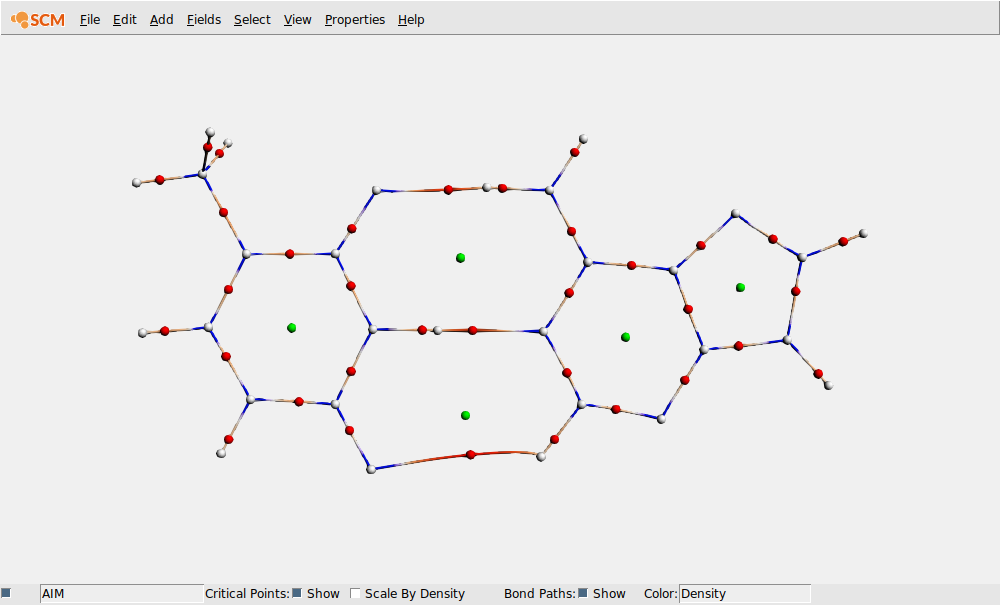

In AMSview, click on Properties → QTAIM (Topology)

The critical points and bond paths are shown (the molecule balls and sticks representation is hidden). The different types of critical points (atom CP, bond CP, ring CP and cage CP) are indicated by different colors. The bond paths are colored by density, by default. You can get extra information about a CP or a point along the bond path by clicking on it.

We will now add a cut-plane showing the electronic density:

Click on Fields → Grid → Medium

Click on Add → Cut Plane: Contours

In the bar at the bottom of AMSview, click on Select Field → Density → Density SCF

Change the number of contour lines from 15 to 30

This concludes the AT QTAIM tutorial. To close all its windows:

SCM → Quit

Benzene QTAIM charge analysis and NBOs¶

Start AMSinput

Make a benzene molecule (for example by searching for it with cmd/ctrl-F)

In the main panel set Frozen Core → None and Relativity → None

Panel bar Properties → QTAIM

Check the ‘Perform QTAIM analysis’ option

Set the Analysis level to Extended

Panel bar Properties → Localized Orbitals, NBO

Check the ‘Perform NBO analysis’ option

Request Boys-Foster localized orbitals

Run this setup (File → Run)

When the calculation is done (it should run very fast), we use AMSview to examine the QTAIM charges and compare them with Mulliken charges:

Open the results with AMSview

Show the QTAIM atomic charges (Properties → Atom Info → QTAIM Charge → Show)

Color the atoms by QTAIM charges (Properties → Color Atoms By → QTAIM Charge)

Show the Mulliken charges (Properties → Atom Info → Mulliken Charge → Show)

Next we inspect the NBOs and Boys-Foster localized orbitals. To remove the charge display we close and open AMSview, but you could also have used the View menu to remove them by hand:

Close AMSview

Open the results again with AMSview

Add an isosurface with phase

Use the field menu in the new control line,

and observe the labels present with the NBOs and NLMOs

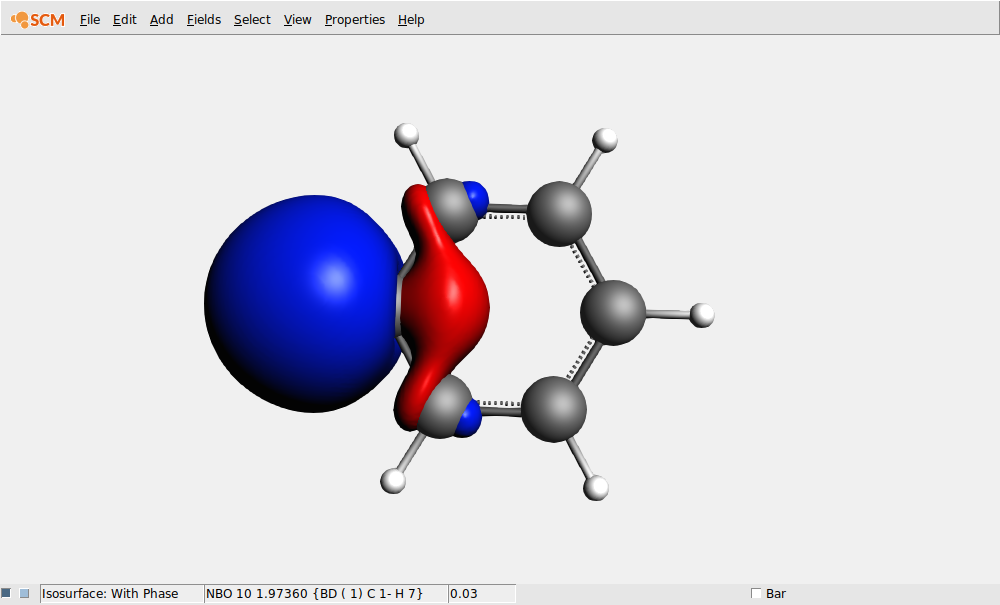

Open a NBO similar to BD Cn - Hn

Improve the grid by using Fields → Grid → Fine

Obviously, you can also visualize the NLMOs or the Boys-Foster localized orbitals (which are just called Localized Orbitals in the fields menu.

Rationalizing a typical SN2 reaction using condensed Conceptual DFT descriptors¶

The chemical reactivity of reactants or key intermediates can be analyzed using condensed (over QTAIM basins) Conceptual DFT descriptors such as Fukui functions or Dual Descriptor. We strongly suggest the use of the Dual Descriptor, which gives at one glance a more complete description of reactivity behaviors. All the following calculations are based on frontier molecular orbitals (FMOs) using Koopmans approximation, which presents advantages (fast calculations) and drawbacks (in particular if FMOs are degenerated or quasi-degenerated).

An alternative way, based on finite difference linear (FDL) approximation, is available in ADF: Fukui Functions and Dual Descriptor. The FDL approximation offers a more rigorous approach, but it requires three calculations (systems with N electrons (reference), N+δ electrons and N-δ electrons (0<δ<=1)) and shows other drawbacks. For instance, adding one electron to the reference system may lead to unconverged SCF procedure, or the corresponding spin states might be unobvious. Besides, some ambiguity remains about which atomic basins (relaxed or unrelaxed) should be used when adding or removing electrons.

Start AMSinput

Draw the N,N-dimethylbutylamine molecule (nucleophile)

Pre-optimize the structure by clicking on

Select the Geometry Optimization task

Panel bar Properties → Conceptual DFT

Check the ‘Conceptual DFT’ option

Set the ‘Analysis level’ option to Extended

Run this setup: File → Run, use ‘nucleophile’ as file name for your job

Wait until it is ready, click then No when asked to update the coordinates in AMSinput

At the end of the optimization process, all the QTAIM properties will be calculated.

Start AMSview: SCM → View

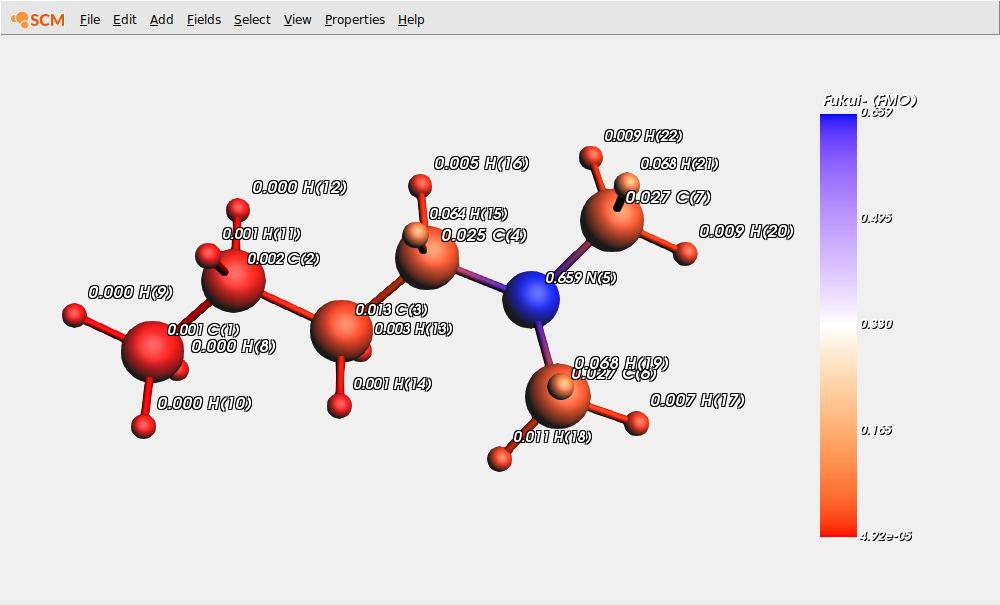

Show the condensed (over QTAIM atomic basins) ‘Fukui Fminus function’ indices that characterize the nucleophilicity of atomic sites:

Properties → Atom Info → Fukui- (FMO) → Show

Properties → Color Atoms By → Fukui- (FMO)

Properties → Atom Info → Name → Show

On this picture, we clearly see that the nitrogen site is the most nucleophilic one. To obtain a more complete picture at one glance, we can visualize the condensed values of the dual descriptor (DD) that corresponds, using the Koopmans’ theorem, to the difference between FMOs electron densities.

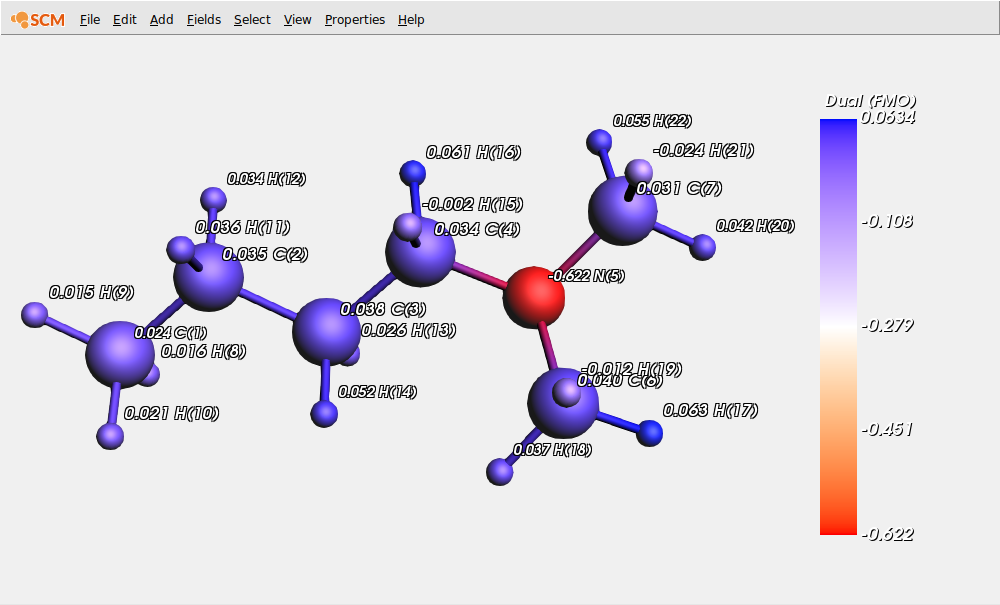

To this end, first hide the previous values and display the condensed DD values:

Properties → Atom Info → Fukui- (FMO) → Hide

Properties → Atom Info → Dual (FMO) → Show

Properties → Color Atoms By → Dual (FMO)

Positive values correspond to atomic sites where electrophilicity is predominant, while negative values correspond to atomic sites where nucleophilicity is predominant (again, the nitrogen atom is highly nucleophilic).

In a new input window, now make the benzyl chloride (electrophile):

SCM → New input

Make benzyl chloride by copying the following coordinates and pasting them in the AMSinput molecule drawing area:

C      -0.70294970       0.03823073       0.00000000
C      -0.02771734      -1.20050280       0.00000000
C       1.37040750      -1.24326069       0.00000000
C       2.10941268      -0.05859271      -0.00000000
C       1.45241936       1.17312771      -0.00000000
C       0.05527963       1.22223527      -0.00000000
C      -2.21056076       0.15917615      -0.00000000
Cl     -2.96962094       0.22007043       1.61845248
H      -0.56397603      -2.13845972       0.00000000
H       1.88164983      -2.19732981       0.00000000
H       3.19110656      -0.09523365      -0.00000000
H       2.02573037       2.09116490      -0.00000000
H      -0.43823632       2.18658642      -0.00000000
H      -2.49816320       1.08415158      -0.54318756
H      -2.64194499      -0.70811986      -0.54318753

Pre-optimize the structure by clicking on

Select the Geometry Optimization task

Panel bar Properties → Conceptual DFT

Check the ‘Conceptual DFT’ option

Set the ‘Analysis level’ option to Extended

Run this setup: File → Run, use ‘‘electrophile’’ as file name for your job

Wait until it is ready, click then No when asked to update the coordinates in AMSinput

At the end of the optimization process, all the QTAIM properties will be calculated.

Start AMSview: SCM → View

Show the condensed (over QTAIM atomic basins) ‘Fukui+ (FMO) function’ values that characterize the electrophilicity of atomic sites:

Properties → Atom Info → Fukui+ (FMO) → Show

Properties → Color Atoms By → Fukui+ (FMO)

Properties → Atom Info → Name → Show

On this picture, two carbon sites (C(4) and C(7)) have similar Fukui+ indices. Moreover, chlorine has a strong electrophilic character due to the existence of a sigma hole in the outer part of its valence shell along the C-Cl bond. Therefore, it is difficult to unambiguously determine the reactivity of this molecule by the sole QTAIM condensed Fukui+ values. In that case, the dual descriptor is quite useful, providing a balanced picture, since it allows evaluating the predominant reactivity behavior at each atomic site.

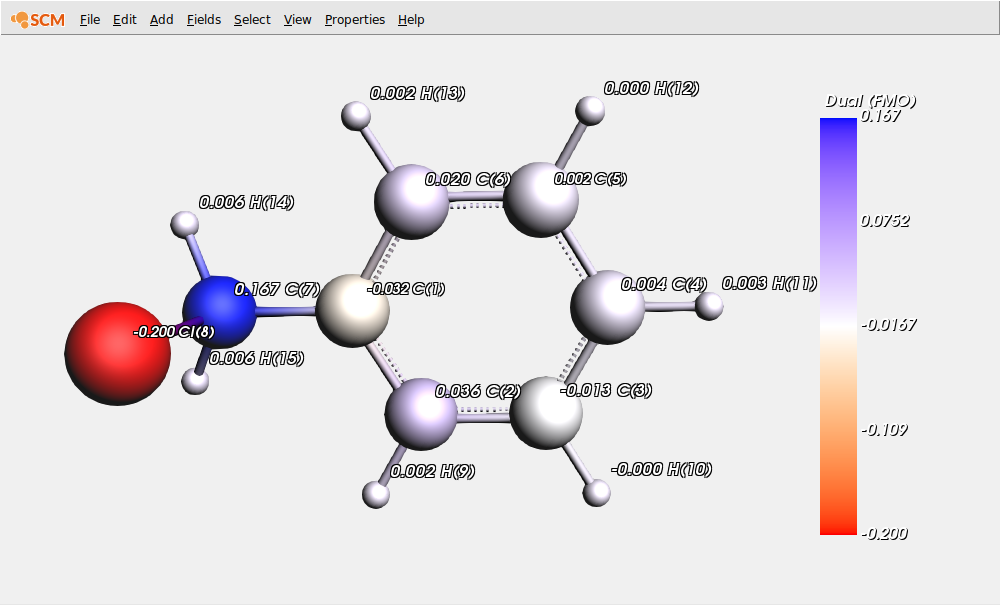

To this end, first hide the previous values and display the condensed DD values:

Properties → Atom Info → Fukui+ (FMO) → Hide

Properties → Atom Info → Dual (FMO) → Show

Properties → Color Atoms By → Dual (FMO)

As already mentioned, positive values correspond to atomic sites where electrophilicity is predominant, while negative values correspond to atomic sites where nucleophilicity is predominant.

In this picture we clearly see, as expected from chemical intuition, that C(7) is highly electrophilic (compared to the other carbon atoms). This site will thus undergo a nucleophilic attack during the SN2 reaction with the N,N-dimethylbutylamine molecule, leading to the formation of a quaternary ammonium salt.

Besides, we can also observe that the chlorine atom is predominantly a nucleophilic site (due to its lone pairs) despite the presence of an electrophilic sigma hole.

SCM→ Quit All
