2.6. ReaxFF: Adsorption on ZnS(110)¶

This tutorial illustrates ReaxFF parametrization for ZnS and H₂S on ZnS(110).

The tutorial teaches how to

Combine several different force fields from the AMS ReaxFF library into a good initial guess
Select training jobs to enter the training set

Note

The input files have already been prepared. If you simply want to run the parametrization without preparing the input, copy the contents of $AMSHOME/scripting/scm/params/examples/ZnS_ReaxFF to a new empty directory.

To open the example in the graphical user interface (GUI): SCM → ParAMS, File → Open the job_collection.yaml file in the new directory.

You can then run the parametrization.

2.6.1. Mix force fields from the AMS ReaxFF library¶

The ReaxFF force fields included with AMS cover a large part of the periodic table, however, far from all interactions are included.

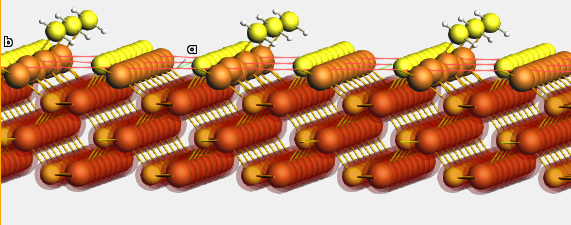

In this tutorial, the goal is to model H₂S adsorption on a ZnS surface. No ZnS ReaxFF force field is included with AMS, but the following force fields might help:

Force field	Chemistry	Reference
LiS.ff	Sulfur	Islam et al.
Mue2016.ff	Organic S-containing compounds	Müller and Hartke
ZnOH.ff	Zn and ZnO surfaces	Raymand et al.

A ReaxFF force field contains parameters in the following categories: general (GEN), atomic (ATM), bond (BND), angle (ANG), off-diagonal (OFD), torsional (TOR), hydrogen bond (HBD).

Here, we’ll use the following initial parameters from the above force fields:

LiS.ff: ATM:S, BND:S.S, ANG:S.S.S
Mue2016.ff: ATM:H, BND:S.H, ANG:H.S.H
ZnOH.ff: GEN, ATM:Zn, BND:H.H, BND:Zn.H, BND:Zn.Zn, BND:Zn.O*, ANG:Zn.Zn.O*, ANG:Zn.O*.Zn, ANG:Zn.O*.O*, ANG:O*.Zn.O*, HBD:O*.H.O*

For ZnOH.ff, the asterisks in e.g. BND:Zn.O* indicate that we will instead copy those parameters to initialize the BND:Zn.S block. That is, the Zn-O interaction in ZnOH.ff will be used as first guess for the Zn-S interaction in the new force field.

Here, we will demonstrate how to construct an initial ReaxFF force field from scratch. Open ParAMS in ReaxFF mode:

: SCM → ParAMS

File → New

Parameters → ReaxFF

In the Parameters tab, you will see the ReaxFF parameters in the GEN block. Those parameters always exist for any ReaxFF force field.

../../_images/RxFF_ZnS_empty_gen_block.png

We want to copy the GEN parameters from ZnOH.ff:

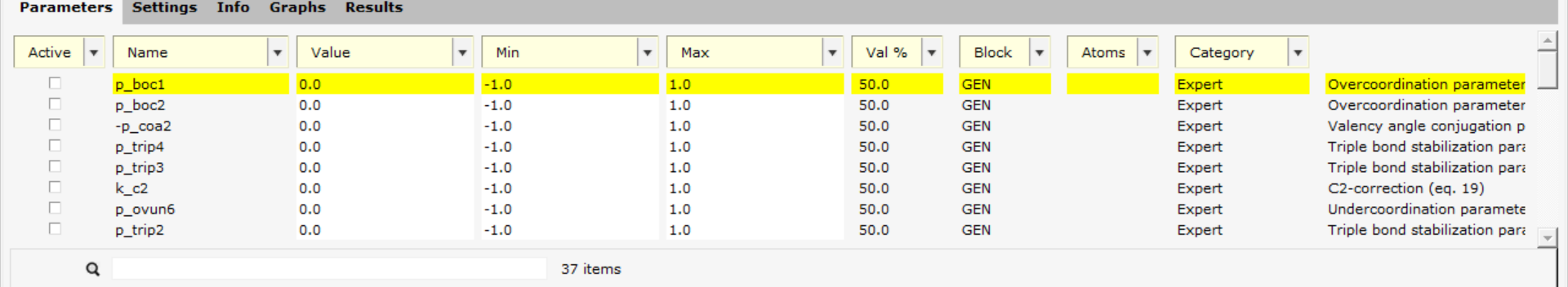

: Select one of the GEN parameters in the bottom table

../../_images/RxFF_ZnS_empty_gen_block_select.png

: Parameters → Initialize ReaxFF block

../../_images/RxFF_ZnS_empty_gen_block_initialize.png

: GEN: from GEN: click OK.

Note: this searches the ReaxFF force field library in AMS and can take a while

In the resulting list, select ZnOH.ff and click OK

This updates the parameter values in the table

../../_images/RxFF_ZnS_gen_block_initialized.png

Now, add the ATM:S, BND:S.S, and ANG:S.S.S parameters from LiS.ff:

: Parameters → Add ReaxFF block

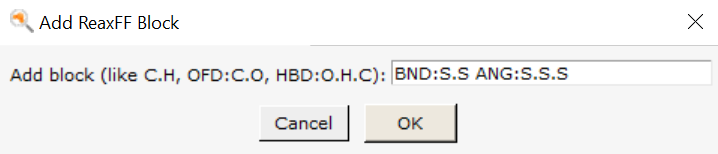

Type BND:S.S ANG:S.S.S and click OK. This adds the BND:S.S and ANG:S.S.S blocks to the table, and also the ATM:S block because it didn’t exist.

The new parameters are automatically selected. Do not deselect them

../../_images/RxFF_ZnS_SSS_blocks_initialize.png

: Parameters → Initialize ReaxFF block

ANG:S.S.S from ANG:S.S.S, ATM:S from ATM:S, BND:S.S from BND:S.S. Click OK

Note: this searches many ReaxFF force fields and can take a while

In the list, select LiS.ff and click OK

This updates the parameters values in the table

../../_images/RxFF_ZnS_SSS_blocks_initialized.png

Regularly save your work:

: File → Save

Save with the name reaxff-zns.params

Next, add the ATM:H, BND:S.H and ANG:H.S.H from Mue2016.ff:

: Parameters → Add ReaxFF block

Type BND:S.H ANG:H.S.H and click OK. This adds the BND:H.S and ANG:H.S.H blocks to the table, and also the ATM:H block because it didn’t exist. The bond block is called BND:H.S (sorted alphabetically).

The new parameters are automatically selected. Do not deselect them

../../_images/RxFF_ZnS_HSH_block_add.png

: Parameters → Initialize ReaxFF block

ANG:H.S.H from ANG:H.S.H, ATM:H from ATM:H, BND:H.S from BND:H.S. Click OK

Note: this searches many ReaxFF force fields and can take a while

In the list, select Mue2016.ff and click OK

File → Save

Note

For the BND block the order of atoms do not matter (BND:H.S is the same as BND:S.H). For the ANG block the order does matter - the central atom is given in the middle, but for example ANG:H.S.Zn is equivalent to ANG:Zn.S.H

Now add the remaining blocks ATM:Zn, BND:H.H, BND:Zn.H, BND:Zn.Zn, BND:Zn.S, ANG:Zn.Zn.S, ANG:Zn.S.Zn, ANG:Zn.S.S, ANG:S.Zn.S

: Parameters → Add ReaxFF block

Type BND:H.H BND:Zn.H BND:Zn.Zn BND:Zn.S ANG:Zn.Zn.S ANG:Zn.S.Zn ANG:Zn.S.S ANG:S.Zn.S HBD:S.H.S and click OK.

The new parameters are automatically selected. Do not deselect them

: Parameters → Initialize ReaxFF block

Replace all S with O in the “from” fields. Click OK.

../../_images/RxFF_ZnS_ZnO_block_initialize.png

: Select ZnOH.ff in the list. Click OK.

File → Save

This copies the values from the BND:Zn.O block in ZnOH.ff to the BND:Zn.S block in your new force field, copies the values from the ANG:Zn.Zn.O block in ZnOH.ff to the ANG:Zn.Zn.S block in your new force field, etc.

This is accomplished in the get_initial_parameters() method of generate_input_files.py:

def get_initial_parameters(bounds_scale=1.3):
    LiS = ReaxFFParameters('LiS.ff', bounds_scale=bounds_scale) # http://dx.doi.org/10.1039/C4CP04532G
    Mue2016 = ReaxFFParameters('Mue2016.ff', bounds_scale=bounds_scale) # http://dx.doi.org/10.1021/acs.jctc.6b00461
    ZnOH = ReaxFFParameters('ZnOH.ff', bounds_scale=bounds_scale) # http://dx.doi.org/10.1016/j.susc.2009.12.012

    # interf is the new parameter interface
    interf = ReaxFFParameters(None)

    # copy S parameters from LiS
    interf.copy_block(LiS, 'ATM:S')
    interf.copy_block(LiS, 'BND:S.S')
    interf.copy_block(LiS, 'ANG:S.S.S')

    # copy H, S.H, and H.S.H parameters from Mue2016
    interf.copy_block(Mue2016, 'ATM:H')
    interf.copy_block(Mue2016, 'BND:S.H')
    interf.copy_block(Mue2016, 'ANG:H.S.H')

    # copy the GEN block and many other blocks from ZnOH, replacing O with S
    interf.copy_block(ZnOH, 'GEN')
    interf.copy_block(ZnOH, 'ATM:Zn')
    interf.copy_block(ZnOH, 'BND:H.H', 'BND:H.H')
    interf.copy_block(ZnOH, 'BND:Zn.H', 'BND:Zn.H')
    interf.copy_block(ZnOH, 'BND:Zn.Zn', 'BND:Zn.Zn')
    interf.copy_block(ZnOH, 'BND:Zn.O', 'BND:Zn.S')
    interf.copy_block(ZnOH, 'ANG:Zn.Zn.O', 'ANG:Zn.Zn.S')
    interf.copy_block(ZnOH, 'ANG:Zn.O.Zn', 'ANG:Zn.S.Zn')
    interf.copy_block(ZnOH, 'ANG:Zn.O.O', 'ANG:Zn.S.S')
    interf.copy_block(ZnOH, 'ANG:O.Zn.O', 'ANG:S.Zn.S')
    interf.copy_block(ZnOH, 'HBD:O.H.O', 'HBD:S.H.S')

    # give a title
    interf.header['head'] = 'ZnS parametrization'

    return interf

2.6.2. Choose the parameters to optimize¶

We will not optimize (deactivate)

Any GEN (general) parameters
Any ATM (atomic) parameters
Any parameters with category DoNotOptimize (these should never be optimized)
Any BND (bond) parameters for H-Zn or H-H (there is no training data for those interactions)
Any BND (bond) parameters for π-bonds (there is no training data)
Any ANG (angle) parameters for S-S-S (there is no training data)
Any parameters with value 0 (usually means “off”)

We will optimize (activate):

Block	Atoms	Parameters
BND	S-S, H-S, Zn-Zn, S-Zn	`D_e^sigma` `p_be1` `p_ovun1` `p_be2` `p_bo1` `p_bo2`
ANG	H-S-H, S-Zn-Zn, Zn-S-Zn, S-S-Zn, S-Zn-S	`Theta_0,0` `p_val1` `p_val2` `p_val7` `p_val4`
HBD	S-H-S	`r_hb^0` `p_hb1` `-p_hb2` `-p_hb3`

There are various ways to select the above list of parameters for optimization.

For example, the BND parameters can be selected as follows:

: Switch to the Parameters tab

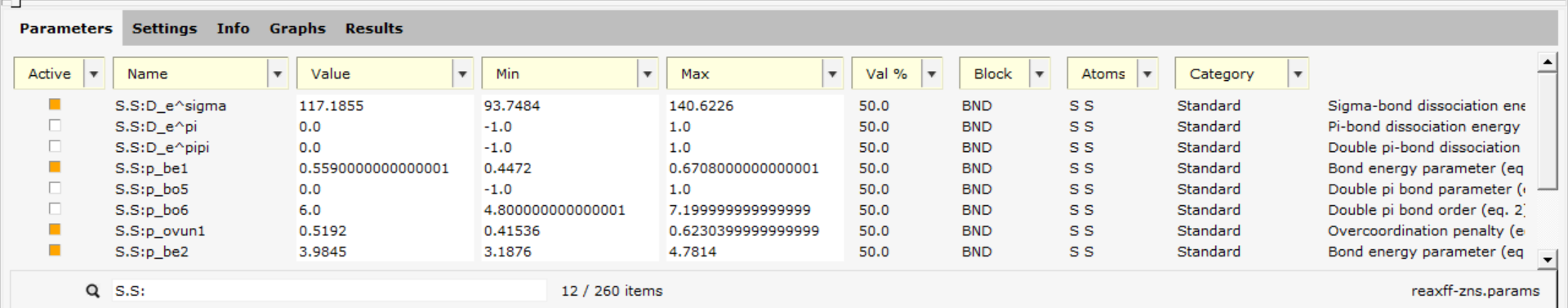

In the search box at the bottom, type S.S:

In the Block dropdown, select BND

In the Category dropdown, select Standard

Tick the Active checkbox for D_e^sigma p_be1 p_ovun1 p_be2 p_bo1 p_bo2

../../_images/RxFF_ZnS_activate_SS_BND.png

: Repeat the above when searching for H.S:, Zn.Zn:, and S.Zn:

Save your work before continuing

The ANG parameters can be selected as follows:

: In the Block dropdown, select ANG

In the Category dropdown, select All

In the search box at the bottom, type theta

Tick the Active checkbox for H.S.H, S.S.Zn, S.Zn.S, S.Zn.Zn, Zn.S.Zn (but not for S.S.S)

: Repeat the above steps searching for p_val1, p_val2,``p_val7``, p_val4

Save your work before continuing

The HBD parameters can be selected as follows:

: In the Block dropdown, select HBD

In the Category dropdown, select All

Tick the Active checkbox for all S.H.S HBD parameters.

Save your work before continuing

Verify that you’ve activated the desired parameters:

: In the Block dropdown, select All

In the Category dropdown, select All

In the Active dropdown, unselect Show Non-Active

../../_images/RxFF_ZnS_activate_show_active.png

You should now see only the active parameters.

By default, the Min and the Max values are set to ±20% of the value. Let’s increase the range for all the now active parameters by another 8.3%:

: Select the first active parameter (S.S:D_e^sigma)

Scroll down to the bottom

Hold SHIFT and click on the last active parameter (S.H.S:-p_hb3)

../../_images/RxFF_ZnS_select_active.png

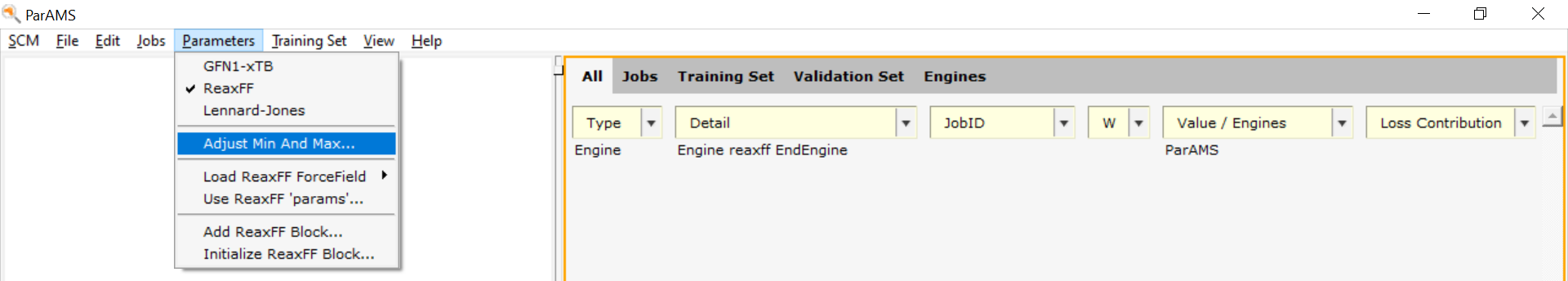

: In the Parameters menu, select Adjust Min and Max

../../_images/RxFF_ZnS_adjust_min_max.png

: In the left drop-down, select Range

In the middle drop-down, select Scale

Set the value to 1.083

Click OK

This increases the range (decreases Min and increases Max) for all selected parameters by 8.3%. In the Adjust Min and Max dialog, you can Scale/Shift/Set the Range/Min/Max, for many selected parameters at the same time.

Save your work before continuing:

: File → Save

The function activate_parameters() in generate_input_files.py applies some logic to decide whether to activate a parameter during the parametrization:

def activate_parameters(interf: ReaxFFParameters):
    # only optimize bond and angle parameters
    # do not optimize H-Zn and H-H bond parameters
    # do not optimize pi-bonding parameters
    # parameters with a value of 0 are usually best kept at 0
    for p in interf:
        if p.metadata['category'] == 'DoNotOptimize':
            p.is_active = False
        elif p.metadata['block'] == 'BND':
            p.is_active = 'n/a' not in p.name.lower() and \
                          not p.name.endswith('pi') and \
                          p.value != 0 and \
                          p.metadata['atoms'] != ['H', 'Zn'] and \
                          p.metadata['atoms'] != ['Zn', 'H'] and \
                          p.metadata['atoms'] != ['H', 'H'] and \
                          not 'pi bond' in p.metadata['description'].lower()
        elif p.metadata['block'] == 'ANG':
            p.is_active = 'n/a' not in p.name.lower() and \
                          p.value != 0 and \
                          p.metadata['atoms'] != ['S', 'S', 'S']
        elif p.metadata['block'] == 'HBD':
            p.is_active = True
        else:
            p.is_active = False

For the BND parameters, we choose not to optimize any parameters that should always be constant(with category DoNotOptimize), the π-bond parameters, any parameters with value 0, or the Zn-H and H-H parameters. Similar conditions are placed for the ANG parameters.

2.6.3. ZnS training and validation set¶

The training data contains

Polymorphs

Energy-volume scans of the zinc blende and rock salt polymorphs of ZnS (wurtzite energy-volume scan in the validation set). See the GFN1-xTB tutorial for how to set up an energy-volume scan reference calculation in AMS and import it into ParAMS.
Enthalpy of formation of the zinc blende, wurtzite, and rocksalt polymorphs of ZnS

Gaseous H₂S

Optimized S-H bond length in H₂S, and H-S-H angle. See the GFN1-xTB tutorial or Import training data (GUI) tutorial for how to import the bond length from a geometry optimization job.
Bond scan for the S-H bond and angle scan for the H-S-H angle in gaseous H₂S. See the ReaxFF: Gaseous H₂O tutorial for how to set up a bond scan reference calculation in AMS.

Clean ZnS(110) surface

Optimized bond lengths and angles at a clean ZnS(110) surface. See also: Building Crystals and Slabs and Crystals and Surfaces
Formation energy (surface energy) of the ZnS(110) surface. See also: Surface energy
Forces on distorted ZnS(110) surfaces (*)

H₂S adsorbed on ZnS(110)

Optimized Zn-S and H…S bond lengths for H₂S/ZnS(110)
Adsorption energy of H₂S/ZnS(110). See also: Adsorption

Other

Atomic charges for a variety of systems

(*): The distorted ZnS(110) surfaces were obtained by geometry-optimizing the clean ZnS(110) surface using a previous iteration of the force field.

Note

This tutorial does not cover how to set up all the reference calculations. In the GUI, if you switch to the Jobs panel and double-click in the Detail column, you can use the button Edit in AMSinput to see how the reference calculation was set up (approximately, some details like the maximum number of iterations for the geometry optimization may differ).

If you have run a reference calculation, in the ParAMS GUI you can choose Jobs → Add Job, and browse to the ams.rkf file from the job. That will let you import many properties (energy, forces, stress tensor, charges, …).

The needed .yaml files can be found in $AMSHOME/scripting/scm/params/examples/ZnS_ReaxFF, where $AMSHOME is the AMS installation directory.

Note

Using File → Merge you can add jobs, training set entries, and engines into the current project. If you select File → Open, you will start a new project (thus losing the parameters that you set up in the previous section!).

: File → Merge → Add to Jobs. Select the job_collection.yaml file.

File → Merge → Add to training set. Select the training_set.yaml file.

File → Merge → Add to training set. Select the validation_set.yaml file.

File → Merge → Add to Engines. Select the job_collection_engines.yaml file.

../../_images/RxFF_ZnS_added_trainset.png

First download and unzip reference_calculation_results.zip. It contains trimmed-down results files from BAND DFT calculations.

Then take a look at the import_results() function in generate_input_files.py.

It uses a Results Importer to import results from different types of DFT reference calculations, for example PES Scans and geometry optimizations.

def import_results():
    ri = ResultsImporter(settings={'units': {'energy': 'eV', 'forces': 'eV/angstrom'}, 'remove_bonds': True})

    # energy-volume scans
    ri.add_singlejob('dft/ZnS_pesscans/zincblende/ams.rkf', task='PESScan', properties={'pes': {'weight': 5.0}})
    ri.add_singlejob('dft/ZnS_pesscans/rocksalt/ams.rkf', task='PESScan', properties={'pes': {'weight': 4.0}})
    ri.add_singlejob('dft/ZnS_pesscans/wurtzite/ams.rkf', task='PESScan', properties='pes', data_set='validation_set')

    # single-points
    ri.add_singlejob('dft/ZnS_pesscans/wurtzite_sp/ams.rkf', properties='charges')
    ri.add_singlejob('dft/ZnS_pesscans/rocksalt_sp/ams.rkf', properties='charges')
    ri.add_singlejob('dft/ZnS_pesscans/zincblende_sp/ams.rkf', properties='charges')

    # optimized bond lengths, charges, gasphase H2S
    ri.add_singlejob('dft/band_h2s.results/ams.rkf', task='GeometryOptimization', properties=['distance(0,1)', 'angle(1,0,2)', 'charges'])

    # bond and angle scans, gasphase H2S
    ri.add_singlejob('dft/bondscan_h2s_pbesol.results/ams.rkf', task='PESScan', properties={'pes': {'weight': 3.0}})
    ri.add_singlejob('dft/anglescan_h2s_pbesol.results/ams.rkf', task='PESScan', properties='pes')

    # H2S adsorbed on ZnS(110), bond lengths and charges
    ri.add_singlejob('dft/band_h2s_110.results/ams.rkf', task='GeometryOptimization', properties=['distance(34,19)', 'distance(14, 37)', 'charges'])

    # enthalpy of formations
    ri.add_reaction_energy(reactants=['dft/sulfur.results', 'dft/Zn.results'], products=['dft/ZnS_pesscans/wurtzite_sp'], normalization='p0', normalization_value=0.5)
    ri.add_reaction_energy(reactants=['dft/sulfur.results', 'dft/Zn.results'], products=['dft/ZnS_pesscans/rocksalt_sp'], normalization='p0', normalization_value=1.0)
    ri.add_reaction_energy(reactants=['dft/sulfur.results', 'dft/Zn.results'], products=['dft/ZnS_pesscans/zincblende_sp'], normalization='p0', normalization_value=1.0)

    # relative polymorph energies
    ri.add_reaction_energy(reactants=['dft/ZnS_pesscans/wurtzite_sp'], products=['dft/ZnS_pesscans/zincblende_sp'], normalization='p0', normalization_value=1.0)
    ri.add_reaction_energy(reactants=['dft/ZnS_pesscans/rocksalt_sp'], products=['dft/ZnS_pesscans/zincblende_sp'], normalization='p0', normalization_value=1.0)

    # adsorption energy
    ri.add_reaction_energy(reactants=['dft/band_110.results', 'dft/band_h2s.results'], products=['dft/band_h2s_110.results/ams.rkf'], normalization='p0', normalization_value=1.0, task='GeometryOptimization')

    # "surface energy", in a way
    ri.add_reaction_energy(reactants=['wurtzite_sp'], products=['dft/band_110_noconstraints.results'], normalization='r0', normalization_value=0.5, task='GeometryOptimization')
    ri.add_singlejob('dft/band_110_noconstraints.results', task='GeometryOptimization', properties=['distance(39,42)', 'distance(19, 42)', 'distance(42,47)', 'distance(27,47)', 'distance(4,47)', 'distance(4,12)', 'distance(3,12)', 'distance(12,15)', 'distance(5,28)', 'angle(42,39,19)', 'angle(39,19,31)', 'angle(39,19,24)', 'angle(39,42,47)', 'angle(23,27,47)', 'angle(27,47,4)', 'dihedral(9,28,27,23)', 'charges'])

    # some singlepoints
    ri.add_singlejob('dft/band_distorted_ads_110.results/', properties='forces')
    ri.add_singlejob('dft/band_distorted_clean_110.results', properties='forces')

    ri.add_reaction_energy(reactants=['dft/band_distorted_ads_110.results'], products=['band_h2s_110'], sigma=2.0)
    ri.add_reaction_energy(reactants=['dft/band_distorted_clean_110.results'], products=['band_110'], sigma=2.0)


    # save training_set.yaml, validation_set.yaml, job_collection.yaml
    ri.store(backup=False, binary=False)

2.6.4. Run the ZnS ReaxFF parametrization¶

: File → Save As with a new name

File → Run (or, select the job in AMSjobs, set a remote queue, and submit to a compute cluster)

Run

"$AMSBIN/params" optimize

2.6.5. ZnS parametrization results¶

Note

These results only give an example of a possible result. If you rerun the parametrization, your results will likely differ and could either be better or worse.

../../_images/ZnS_tutorial_running_loss.png

2.6.5.1. ZnS energies¶

	Reference (eV)	Prediction (eV)
ZnS enthalpy of formation (zincblende)	-2.737	-2.737
ZnS enthalpy of formation (rock salt)	-2.329	-2.360
H₂S adsorption energy on ZnS(110) (a)	-0.742	-0.559
ZnS(110) slab energy relative to bulk (b)	+0.124	+0.257

(a): This adsorption energy was not calculated using the in-cell approach

(b): This energy can be converted into a surface energy

2.6.5.2. ZnS volume scans¶

../../_images/ZnS_tutorial_volumescan_zincblende.png

../../_images/ZnS_tutorial_volumescan_rocksalt.png

2.6.5.3. H₂S bond and angle scans¶

../../_images/ZnS_tutorial_anglescan.png

2.6.5.4. ZnS optimized distances¶

../../_images/ZnS_tutorial_distances.png

2.6.5.5. ZnS forces on distorted structures¶

Fig. 2.4 Reference and predicted forces on the two depicted structures. The structures were obtained by geometry-optimizing a slab using a previous iteration of the force field.

Electronic Structure

ADF

Periodic DFT

DFTB & MOPAC

Interatomic Potentials

ReaxFF

Machine Learning Potentials

Force Fields

kMC and Microkinetics

Bumblebee: OLED stacks

Fluid Thermodynamics

COSMO-RS

Workflows and Utilities

OLED workflows

ChemTraYzer2

Conformers

Reactions Discovery

AMS Driver

Properties

PES Exploration

Molecular Dynamics

Monte Carlo

Interfaces

ParAMS

PLAMS

GUI

VASP

Downloads

Windows

Mac

Linux

Documentation

Overview

Tutorials

Installation Manual

Brochures

Other Resources

Changelog

Workshops

Knowledgebank

FAQ

Pricing and licensing

2.6. ReaxFF: Adsorption on ZnS(110)¶

2.6.1. Mix force fields from the AMS ReaxFF library¶

2.6.2. Choose the parameters to optimize¶

2.6.3. ZnS training and validation set¶

2.6.4. Run the ZnS ReaxFF parametrization¶

2.6.5. ZnS parametrization results¶

2.6.5.1. ZnS energies¶

2.6.5.2. ZnS volume scans¶

2.6.5.3. H₂S bond and angle scans¶

2.6.5.4. ZnS optimized distances¶

2.6.5.5. ZnS forces on distorted structures¶
