Screening for cocrystals¶

import os
import matplotlib.pyplot as plt
from scm.plams import *

##################  Note: Be sure to add the path to your own AMSCRS directory here  ##################
database_path = os.getcwd()

if not os.path.exists(database_path):
    raise OSError(f'The provided path does not exist. Exiting.')

init()
#suppress plams output
config.log.stdout = 0

# temperature
sys_temp   = 298.15 # K

# the solute we are trying to find a co-crystal for (Itraconazole)
solute =  ["itz_1.coskf"]

# a list of different conformers for the screening
# each line contains 3 conformers of the same molecule
solv_list=[
           ["tartaric_acid_1.coskf","tartaric_acid_2.coskf","tartaric_acid_3.coskf"],
           ["fumaric_acid_1.coskf","fumaric_acid_2.coskf","fumaric_acid_3.coskf"],
           ["succinic_acid_1.coskf","succinic_acid_2.coskf","succinic_acid_3.coskf"],
           ["malic_acid_1.coskf","malic_acid_2.coskf","malic_acid_3.coskf"],
           ["glutaric_acid_1.coskf","glutaric_acid_2.coskf","glutaric_acid_3.coskf"],
           ["malonic_acid_1.coskf","malonic_acid_2.coskf","malonic_acid_3.coskf"],
           ["adipic_acid_1.coskf","adipic_acid_2.coskf","adipic_acid_3.coskf"],
           ["maleic_acid_1.coskf","maleic_acid_2.coskf","maleic_acid_3.coskf"]
        ]


print("Solvent".ljust(30),"Excess enthalpy (kcal/mol)")
excess_h = []
for solv in solv_list:

    name = "_".join(solv[0].split("_")[:-1])

    # initialize settings object
    settings = Settings()
    settings.input.property._h = 'VAPORPRESSURE'

    # set the number of compounds
    num_compounds = 2
    compounds = [Settings() for i in range(num_compounds)]
    compounds[0].name = "solvent"

    form_s = [Settings() for i in range(len(solv))]
    for j in range(len(solv)):
        form_s[j]._h = os.path.join( database_path, solv[j] )

    compounds[0].form = form_s

    compounds[1].name = "Itraconazole"

    form_sol = [Settings() for i in range(len(solute))]
    for j in range(len(solute)):
        form_sol[j]._h = os.path.join( database_path, solute[j] )

    compounds[1].form = form_sol
    # this is the stoichiometric ratio of the co-crystal
    compounds[0].frac1 = 0.33333
    compounds[1].frac1 = 0.66667

    # to change to the COSMOSAC2013 method
    settings.input.method = 'COSMOSAC2013'

    #temperature
    settings.input.temperature = str(sys_temp)
    # specify the compounds as the compounds to be used in the calculation
    settings.input.compound = compounds
    # create a job that can be run by COSMO-RS
    my_job = CRSJob(settings=settings)

    out = my_job.run()
    res = out.get_results()

    excess_h.append((res["excess H"],name))
    print (name.ljust(30),round(res["excess H"],5))

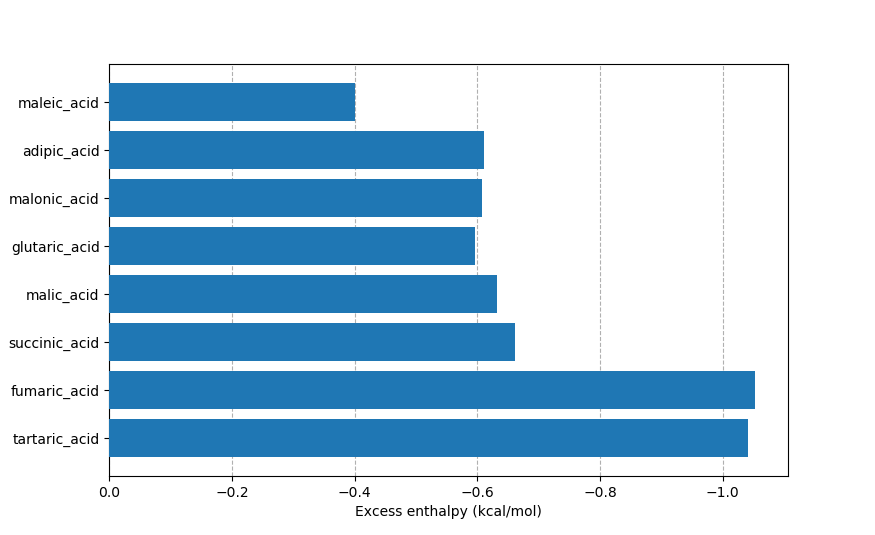

plt.xlabel("Excess enthalpy (kcal/mol)")
plt.barh([i for i in range(len(excess_h))],[x[0] for x in excess_h],zorder=3)
plt.yticks([i for i in range(len(excess_h))],[x[1] for x in excess_h])
plt.grid(axis='x',ls="--",zorder=0)
plt.gca().invert_xaxis()

plt.show()

finish()
