H-NMR spectrum with spin-spin coupling¶

Logfile: ADFtail¶

You can follow the progress of the calculation with ADFtail. The chemical shifts will be calculated first, followed by the couplings constants for the perturbing and responding atoms.

When the calculation is finished the end of your logfile will look something like this:

View the ¹ H-NMR spectrum¶

Use ADFspectra to visualize the calculated spectrum

Select SCM → Spectra

In ADFSpectra, set the “Width” to 0.01

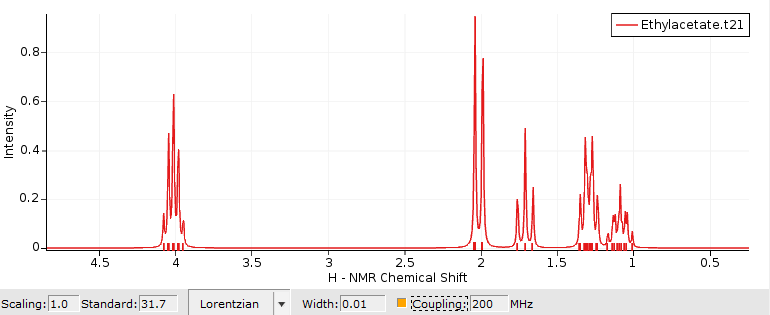

By default only the chemical shifts are visualized using plain singlets. To switch on the visualization of couplings:

Click on the coupling checkbox

This switches on the spin-spin coupling (default machine frequency at 200 Mhz). An additional section in the table will appear which displays additional information for any selected atom or peak in the spectrum. For example:

Click on the quartet in the spectrum

Average chemical shifts and couplings for equivalent atoms¶

As you may have noticed, there are a lot of splittings in the simulated spectrum. This is because all the chemical shifts and coupling constants are calculated at fixed geometry, which means that there is no rotation which would create magnetically equivalent groups.

You can resolve this issue by either flagging chemically equivalent atoms manually or have ADFspectra guess them for you. To manually supply the information:

Select groups of chemically equivalent atoms and

Hold down the SHIFT key on your keyboard

Use the left key of the mouse to select several atoms

Press CTRL+G or go to Regions → New Region From Selected Atoms

The atoms should now be surrounded by a colored sphere. Continue with all remaining atoms. Your spectrum should look as follows now:

To have ADFspectra guess chemically equivalent regions for you, go to

Click on NMR menu

Click on Chemical Equivalent Regions

Comparison of calculated and experimental spectrum¶

A good source for experimental spectra is the SDBS database: http://sdbs.db.aist.go.jp/sdbs/cgi-bin/direct_frame_top.cgi

We will get the ¹ H-NMR spectrum from that database and compare it with the calculated results. You can use data from any source you like, as long as data is avaiable as peaks (positions and intensties) or as a full spectrum (all X values with corresponding Y values).

As this part of the tutorial depends on external data, you may need to adjust details as needed.

Use a browser (do NOT quit ADFspectra) to go to the SDBS database at http://sdbs.db.aist.go.jp/sdbs/cgi-bin/direct_frame_top.cgi

Search for ethyl acetate (CAS = 141-78-6)

Select HNMR

You should see the 1H NMR spectrum, three groups of peaks, with assignment. Next we will copy the peak data to the clipboard:

Click on the ‘Peak data’ button

Select the peak data (three columns, all lines with peaks)

Copy

Now we switch back to ADFspectra where we can paste the contents from the clipboard directly:

Activate the ADFspectra window showing the calculated ethanol spectrum

Edit → Paste

ADFspectra will ask which columns to use for X and Y, and offer to rescale the data:

Enter 2 to use the second column as X values (that column contains the chemical shift in ppm) and click OK

Enter 3 to use the third columns as Y vales and click OK

You now should see both the experimental and the calculated spectrum in one graph. The experimental spectrum (at least the one used to create this tutorial) was measured at 89.56 MHz. So adjust the frequency (default at 200 MHz) of the calculated spectrum:

Change the frequency (next to the Coupling check box) from 200 MHz to 89.56 MHz

This should give you something like this:

Sometimes it makes sense to change one of the spectra to a stick spectrum, showing only sticks for the calculated positions and heights, not applying the broadening. As an example lets do that here for the calculated peak positions:

Double click below the X-axes to show the Graph options dialog

Click on the Curves tab

Select the NMR curve (not the Clipboard one) in the menu on the left

For this curve, on the right side: Show the Sticks, and do NOT show the Curve itself

Click OK

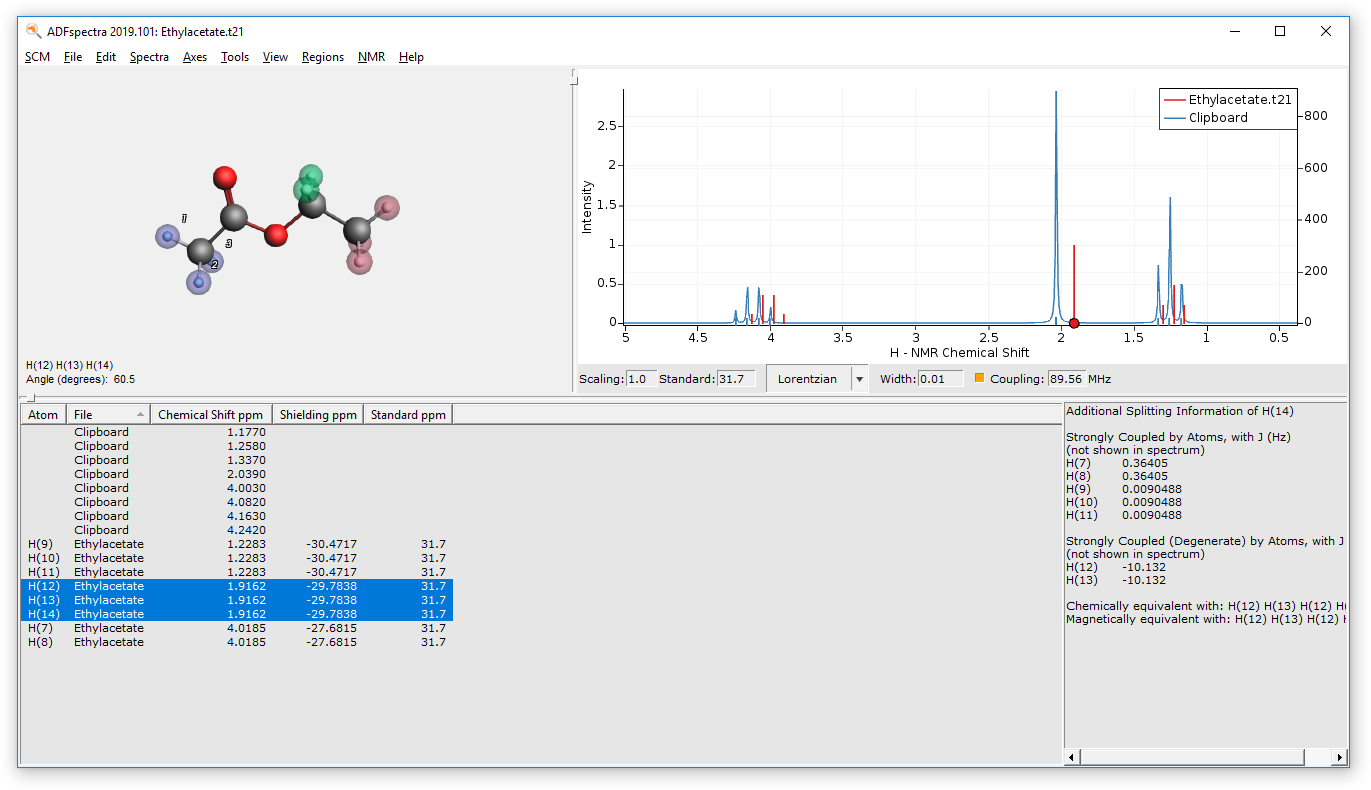

Now you should get the experimental spectrum as a broadened curve, with sticks for the calculated positions:
