The COSMO-RS compound database¶

4.1: Install and use the COSMO-RS compound database¶

Step 2: Add or search compounds¶

There are several ways to select a compound from the database and add it too the List of Added Compounds. The easiest way is to use the search button. A separate search window will popup if one clicks the search button. In the List of Added Compounds this search button looks like:

In other windows it can look like: (to select 1 compound) or (to add multiple compounds).

Select Compounds → List of Added Compounds

Click on the search button

Click on ‘CAS’ to sort by CAS registry number

Click again to reverse the order

Click on ‘Nr’ to sort by number

Click on ‘dNr’ to sort by database number

Click on ‘Name’ to sort by name

Click on ‘Formula’ to sort by formula

Enter ‘pentanol’ in the ‘Search’ field

Click on ‘Cyclopentanol’

Click ‘OK’

Now Cyclopentanol is added to the List of Added Compounds. If the search button is used again Cyclopentanol will have number 1.

In the COSMO-RS database there is a file called ‘all.compoundlist’, which is a plain text file, in which on each line a filename of a ADF COSMO result file is given. One could make a different .compoundlist file which contains a only a selection of the compounds. This can be handy if one wants to add compounds to the List of Added Compounds.

The compounds could also have been added by adding multiple .coskf files, by selecting ‘COSMO kf file (*.coskf)’ for the popup menu ‘Files of type’ (or ‘Filter’), and selecting all .coskf files. On Windows it may, however, fail to add more than a few hundred .coskf files at a time in this way. If that fails, one should use the .compoundlist file.

Step 4: Visualize the COSMO surface: ADFview¶

You can use ADFview to have a look at the COSMO surface, and the COSMO surface charge density. Here we use the selected cyclopentanol of the previous step.

Select Compounds → List of Added Compounds

Click on the left side ‘Cyclopentanol’

Press on the right side ‘Show 3D’

Select the ADFView window ‘Cyclopentanol’

Select ADFview → Add → COSMO: Surface Charge Density → on COSMO surface (reconstructed)

Select ADFview → Add → COSMO: Surface Charge Density → on COSMO surface points

Select ADFview → View → Background → White

Increase the size of the ADFView window, such that control lines at the bottom of the ADFview window are visible

In the control line click on the ‘Cosmo surface’ pull-down menu and use the Show Details command

Select in the lowest line Colormap → Rainbow

In the control line click on the ‘Cosmo surface’ pull-down menu and use the Hide Details command

Do the same for the ‘Cosmo surface points’

Next we will close this ADFview window:

Select the ADFView window ‘Cyclopentanol’

Select ADFview → File → Close

Select the COSMO-RS GUI window

4.2: Octanol-Water partition coefficients (log P_OW )¶

In this example the Octanol-Water partition coefficients for 7 different compounds are calculated and compared to experiment.

In case of partly miscible liquids, like the Octanol-rich phase of Octanol and Water, both components have nonzero mole fractions. Next an input value is used for the volume quotient of the two solvents. The values for the nonzero mole fractions in the Octanol-rich phase and the molar volume quotient of the two solvents were taken from Ref. [421]. If one does not include such value, the program will use the COSMO volumes to calculate the volume quotient. The COSMO volumes can be found by selecting a compound in the List of Added Compounds.

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Octanol-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add ‘Acetamide’, ‘Methanol’, ‘Formic acid’, ‘Diethyl ether’,

p-Dichlorobenzene, ‘Hexamethylbenzene’, and ‘2,2’,4,4’,5-Pentachlorobiphenyl’

Press ‘Run’

Enter the name ‘tutorial4’ in the ‘Filename’ field

The result of the calculation (may take a few seconds) is given in the form of a table. Note that not all compounds were selected as solutes, otherwise the calculation would take much more time.

In the database the name ‘Ethoxyethane’ is used for ‘Diethyl ether’, and the name ‘1,4-Dichlorobenzene’ is used for ‘p-Dichlorobenzene’. In the search window that pops up if the search button is clicked, some alternative names are given for some of the compounds.

Next the calculated Octanol-Water partition coefficients are compared to experiment in the following table.

4.3: Henry’s law constants¶

In this example Henry’s law constants for 17 different compounds are calculated and compared to experiment.

The Henry’s law constants depend on the density of the solvent, Water in this case. If one does not supply a density of the solvent in the input the program calculates the density of the solvent by dividing the mass of a molecule with its COSMO volume. The density of Water at 20 °C (293.15 K) is approximately 0.998 kg/L. Note that the calculated activity coefficients do not depend on the density of Water.

Remark: To only add the compounds needed in this example, one can also open a new COSMO-RS GUI window (SCM → COSMO-RS), Select Compounds → Select Compound(s) from COSMO-RS database, and select tutorial4.3.compoundlist. This is recommended. Then the added compounds are at the top of the list if one uses the ‘+’ button, or search button. The tutorial4.3.compoundlist is a file with a list of compounds that is limited to the compounds needed in this example.

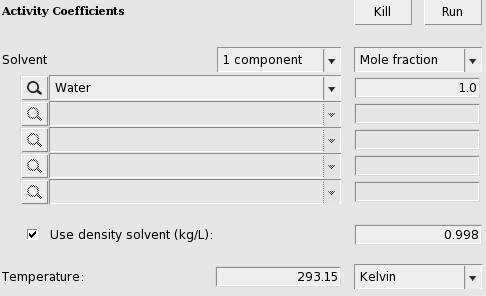

Select Properties → Activity coefficients

Select ‘Water’ for the first component in Solvent

Enter ‘293.15’ for the ‘Temperature’ in ‘Kelvin’

Click the check box ‘Use input density solvent (kg/L)’

Enter ‘0.998’ in the ‘Use input density solvent (kg/L)’ field

Check the ‘+’ button to add ‘Acetaldehyde’, ‘Acetone’, ‘Acetonitrile’, ‘Benzene’, ‘Chloromethane’, ‘Cyclopentane’, ‘Dimethyl sulfide’, ‘Ethanol’, ‘Formaldehyde’, ‘Methanol’, ‘Methyl acetate’, ‘Methyl bromide’, ‘Methyl fluoride’, ‘Methyl iodide’, ‘Pyridine’, ‘Thiophene’, and ‘Toluene’

Press ‘Run’

The result of the calculation (may take a few seconds, depending on the number of compounds selected) is given in the form of a table.

The Henry’s law constants also depend on the vapor pressure of the pure compounds in the gas phase. In the compounds window one can also set these vapor pressures of the pure compounds at a given temperature, or set the Antoine parameters. If these values are not specified (if they are zero) then the pure compound vapor pressure will be approximated using the COSMO-RS method. Best is to include the experimental vapor pressure for a pure compound at the used temperature, thus in this case at 293.15 K.

To include all experimental numbers is rather tedious, thus one could skip the following part, and only look at the results below.

Select Compounds → List of Added Compounds

Click on the left side ‘Acetaldehyde’

Enter ‘0.968’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Acetone’

Enter ‘0.246’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Acetonitrile’

Enter ‘0.095’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Benzene’

Enter ‘0.100’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Chloromethane’

Enter ‘4.94’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Cyclopentane’

Enter ‘0.346’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Dimethyl sulfide’

Enter ‘0.530’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Ethanol’

Enter ‘0.059’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Formaldehyde’

Enter ‘4.47’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Methanol’

Enter ‘0.129’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Methyl acetate’

Enter ‘0.230’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Methyl bromide’

Enter ‘1.83’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Methyl fluoride’

Enter ‘33.7’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Methyl iodide’

Enter ‘0.443’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Pyridine’

Enter ‘0.021’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Thiophene’

Enter ‘0.082’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Toluene’

Enter ‘0.029’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

Click on the left side ‘Water’

Enter ‘0.02536’ in the ‘Pure compound vapor pressure:’ field

Enter ‘293.15’ in the ‘at temperature:’ field

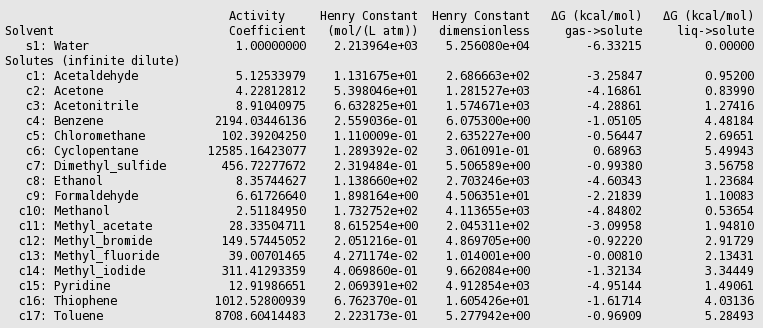

Select Properties → Activity coefficients

Press ‘Run’

For some of the compounds the Henry’s law constants differ quite substantially.

Experimental determined Henry’s law constants might, for example, be found at http://www.henrys-law.org, where a ‘compilation of Henry’s Law constants for inorganic and organic species of potential importance in environmental chemistry’ were listed by R.Sander, and where also an explanation can be found of the many different definitions and units for Henry’s law constants.

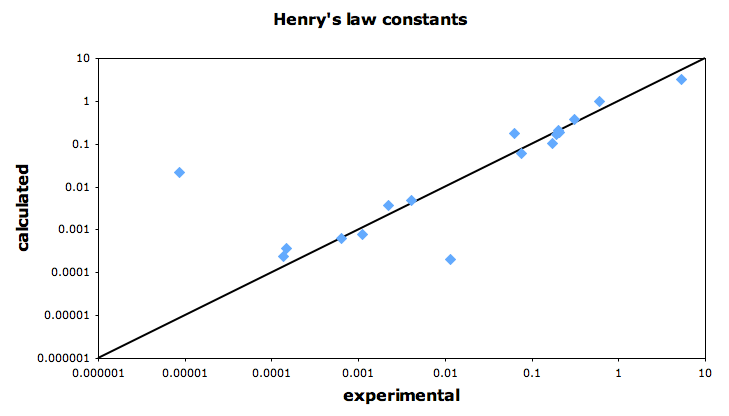

The calculated Henry’s law constants will be compared to experimental values in the next graph and table. The experimental numbers were taken from Ref. [431], where the experimentally determined dimensionless Henry’s law constant H^cc is the inverse of the dimensionless Henry’s law constant k_H ^cc , that is used in the COSMO-RS module.

H^cc = k_{H, inv} ^cc = 1/(k_H ^cc )

In most cases the calculated Henry’s law constants are quite close to the experimental ones, except for Formaldehyde and Pyridine.

The Henry’s law constant of Formaldehyde is more than a factor of 10³ wrong. The origin of this error is that in Water solution the hydration of Formaldehyde leads to Methanediol, and Methanediol is even the dominant form if one dissolves Formaldehyde in Water. This is not taken into account in the calculation. In Ref. [432] a distinction is made between the apparent and intrinsic Henry’s law constants, which differ from each other by approximately a factor of 10³ for Formaldehyde, and a factor of approximately 2.4 for Acetaldehyde. In Ref. [432] the intrinsic Henry’s law constant for Formaldehyde was determined to be 2.5 mol/(L atm) at 25 °C, which is close to the value of 1.9 mol/(L atm) which was calculated with COSMO-RS, although at a different temperature of 20 °C.

The calculated Henry’s law constant of Pyridine is approximately a factor of 10² different than the experimental valuein Ref. [431]. However, the experimental values for Pyridine taken from Ref.[433] are 1.1 10² mol/(L atm) and 9.0 10¹ mol/(L atm), which are not very different from the calculated value with COSMO-RS of 2.1 10² mol/(L atm). Also the experimental values for Pyridine reported in Ref. [434] are in much better agreement with the value calculated with COSMO-RS.

4.4: Solubility of Vanillin in organic solvents¶

In this example the solubility of Vanillin in 9 different solvents is calculated and compared to experiment.

Vanillin (4-Hydroxy-3-methoxybenzaldehyde) is a solid at room temperature. For the solubility of a solid, one should include the melting point and the enthalpy of fusion of the solid in the right window of the List of Added Compounds for a selected compound. If known the Δ heat capacity of fusion should also be included, although it is often less important.

Remark: To only add the compounds needed in this example, one can also open a new COSMO-RS GUI window (SCM → COSMO-RS), Select Compounds → Select Compound(s) from COSMO-RS database, and select tutorial4.4.compoundlist. Then the added compounds are at the top of the list if one uses the ‘+’ button, or search button. The tutorial4.4.compoundlist is a file with a list of compounds that is limited to the compounds needed in this example.

Select Compounds → List of Added Compounds

Click on the ‘Search or add compound to the list of compounds’. A search window will pop up

Enter ‘Vanillin’ in the ‘Search’ field

Click on ‘Vanillin’

Click ‘OK’ (the search window will disappear)

Click on the left side ‘Vanillin’

Enter ‘355’ in the ‘Melting point:’ field

Enter ‘5.35’ in the ‘Δ_fusion H:’ field

Select Properties → Solubility in Pure Solvents

Check the ‘+’ button to add pure compound solvents

‘Water’, ‘1,2-Dichloroethane’

‘1-Propanol’, ‘Oxolane’ (THF), ‘Acetonitrile’,

‘2-Butanone’, ‘Ethanol’, ‘Methanol’, and ‘Toluene’

Enter ‘298.15’ without quotes for the temperature in the ‘from:’ field in ‘Kelvin’

Enter ‘298.15’ in the ‘to:’ field in ‘Kelvin’

Select ‘Vanillin’ for the ‘Solute’

Change the popup menu next to Solute from ‘Liquid’ to ‘Solid’

Press ‘Run’

Note that for the calculation of the solubility in units of mol/L and g/L the program uses information of the mass and COSMO volume of the solvent and solute. Especially the COSMO volume may not always be accurate.

These results can be put in a table. Compared to experiment there can easily be a factor of 2 deviation.

4.5: Binary mixture of Methanol and Hexane¶

In this example a vapor-liquid diagram of Methanol and Hexane is calculated and compared to experiment.

First a binary mixture of Methanol and Hexane is calculated at a constant temperature of 333.15 Kelvin. Next this binary mixture is calculated at a constant pressure of of 1.01325 bar. Experimental pure compound properties are used.

Select Compounds → List of Added Compounds

Add ‘Methanol’ and ‘Hexane’ to this list

Click on the left side ‘Methanol’

Enter ‘0.845’ in the ‘Pure compound vapor pressure:’ field

Enter ‘333.15’ in the ‘at temperature:’ field

Click on the left side ‘Hexane’

Enter ‘0.77’ in the ‘Pure compound vapor pressure:’ field

Enter ‘333.15’ in the ‘at temperature:’ field

Select Properties → Binary Mixture VLE/LLE

Select ‘Methanol’ for the first compound

Select ‘Hexane’ for the second compound

Enter ‘100’ in the ‘Number of mixtures’ field

Select Isotherm, isobar, flash point → isotherm

Enter ‘333.15’ for the ‘Temperature’ in ‘Kelvin’

Press ‘Run’

Select Graph → X Axes → x1, y1

Select Graph → Y Axes → total vapor pressure

In case of a miscibility gap there are two molar fractions x1 and x1’, for which both compounds have the same activities. In the calculation one can plot the activity a1 versus a2. If there is a closed loop, there is a miscibility gap:

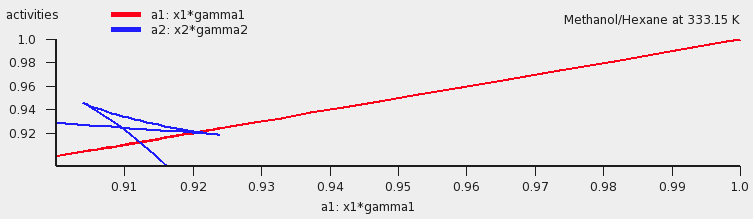

Select Graph → X Axes → a1: x1*gamma

Select Graph → Y Axes → activities

Thus there is a calculated miscibility gap. The properties of the two immiscible liquid phases are given in the table: the calculated miscibility gap is between approximately x1 = 0.275 and x1’ = 0.811, with a calculated total vapor pressure of approximately 1.48 bar. Within the miscibility gap, the liquid mixture consists of 2 immiscible liquid phases, one is Methanol-rich, the other Hexane-rich. Note, however, that within the miscibility gap the COSMO-RS calculation further incorrectly uses a forced 1 liquid-phase instead of 2 immiscible liquid phases. Also note that a pressure-maximum azeotrope is in the miscibility gap.

If the check box Graph → X Axes → force 1 liquid phase within possible miscibility gap is selected, then results will be shown also within the miscibility gap, with the unphysical conditions that the two liquids are forced to mix. If the check box Graph → X Axes → force 1 liquid phase within possible miscibility gap is deselected, then results will be shown in the graph and table only for those compositions of the mixture, which are outside of the miscibility gap.

Deselect the check box

Graph → X Axes → force 1 liquid phase within possible miscibility gap

Select Graph → X Axes → x1: molar fraction 1

Select Graph → Y Axes → excess energies

Select Compounds → List of Added Compounds

Click on the left side ‘Methanol’

Enter ‘1.01325’ in the ‘Pure compound vapor pressure:’ field

Enter ‘337.8’ in the ‘at temperature:’ field

Click on the left side ‘Hexane’

Enter ‘1.01325’ in the ‘Pure compound vapor pressure:’ field

Enter ‘342’ in the ‘at temperature:’ field

Select Properties → Binary Mixture VLE/LLE

Select ‘Methanol’ for the first compound

Select ‘Hexane’ for the second compound

Enter ‘100’ in the ‘Number of mixtures’ field

Select Isotherm, isobar, flash point → isobar

Enter ‘1.01325’ for the ‘Pressure’ in ‘bar’

Press ‘Run’

Select Graph → X Axes → x1, y1

Select Graph → Y Axes → temperature

Select the check box

Graph → X Axes → force 1 liquid phase within possible miscibility gap

There is a calculated miscibility gap between approximately x1 = 0.221 and x1’ = 0.835, with a calculated temperature of approximately 323.3 Kelvin (50.1 °C). Within the miscibility gap, the liquid mixture consists of 2 immiscible liquid phases, one is Methanol-rich, the other Hexane-rich. Note that if the check box ‘force 1 liquid phase within possible miscibility gap’ is selected, within the miscibility gap the COSMO-RS calculation further incorrectly uses a forced 1 liquid-phase instead of 2 immiscible liquid phases. Also note that a temperature-minimum azeotrope is in the miscibility gap.

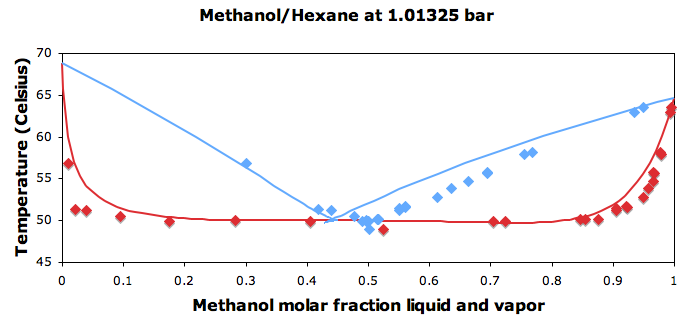

Experimental results for the Methanol-Hexane mixture were takenfrom Ref. [451]. These are compared with the calculated ones in the next graph. More experimental VLE data might also be found at Ref. [452].

4.6: Large infinite dilution activity coefficients in Water¶

In this example infinite dilution activity coefficients of 31 organic compounds in Water are calculated and compared to experiment.

Remark: To only add the compounds needed in this example, one can also open a new COSMO-RS GUI window (SCM → COSMO-RS), Select Compounds → Select Compound(s) from COSMO-RS database, and select tutorial4.6.compoundlist. This is recommended. Then the added compounds are at the top of the list if one uses the ‘+’ button, or search button. The tutorial4.6.compoundlist is a file with a list of compounds that is limited to the compounds needed in this example.

Select Properties → Activity coefficients

Select ‘Water’ for the first component in Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add infinite dilute solutes: ‘1,1,1-Trichloroethane’, ‘1,2-Dichloroethane’, ‘1-Bromobutane’, ‘1-Bromopropane’, ‘1-Chlorobutane’, ‘1-Chlorohexane’, ‘1-Chloropentane’, ‘1-Chloropropane’, ‘1-Propoxypropane’, ‘2-Bromobutane’, ‘2-Bromopropane’, ‘2-Chloropropane’, ‘Benzene’, ‘Bromoethane’, ‘Chloroform’, ‘Cumene’, ‘Dichloromethane’, ‘Diisopropyl_ether’, ‘Di-n-butyl_ether’, ‘Ethylbenzene’, ‘Ethyl_iodide’, ‘Mesitylene’, ‘m-Xylene’, ‘n-Butylbenzene’, ‘n-Propylbenzene’, ‘n-Propyl_iodide’, ‘o-Xylene’, ‘p-Xylene’, ‘Tetrachloroethene’, ‘Toluene’, and ‘Trichloroethene’

Press ‘Run’

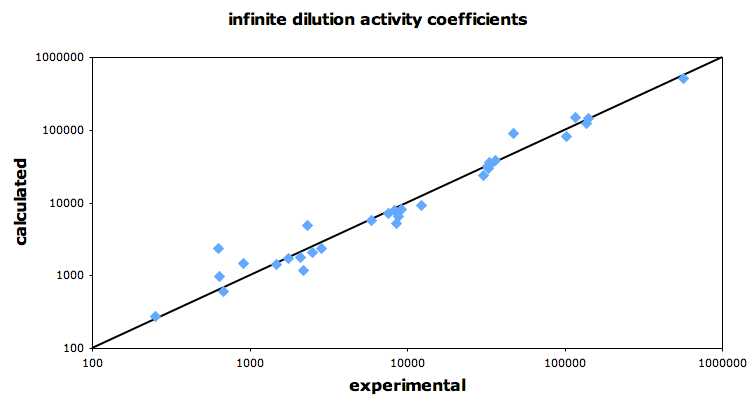

These results can be put in a graph and a table. Experimental results taken from Ref. [461].

here’s the table

4.7: Parametrization of ADF COSMO-RS: solvation energies, vapor pressures, partition coefficients¶

In Ref. [471] the ADF COSMO-RS parameters were fitted to 642 experimental values of properties for the set of 217 compounds from the supplementary material of Klamt et al. [472]. These properties are the ΔG of hydration, the vapor pressure, and the partition coefficients for Octanol/Water, Hexane/Water, Benzene/Water, and Ethoxyethane/Water. In this example all these properties will be calculated for the set of 217 compounds, and the results will be compared to the experimental data collected by Klamt. et al. in Ref. [472].

• Table with the calculated and 642 experimental values

Note that these calculations in this section may take a while, because of the many compounds calculated at once.

Open a new COSMO-RS GUI window (SCM → COSMO-RS). Select Compounds → Select Compound(s) from COSMO-RS database, and select tutorial4.7.compoundlist.

ΔG of hydration

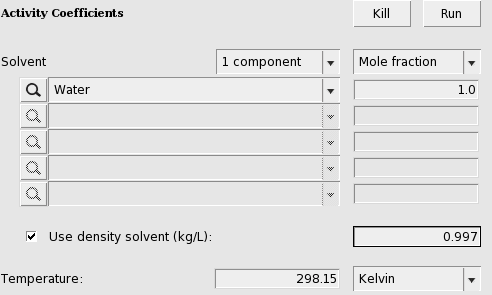

Select Properties → Activity coefficients

Select ‘Water’ for the first component in Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Click the check box ‘Use input density solvent (kg/L)’

Enter ‘0.997’ in the ‘Use input density solvent (kg/L)’ field

Check the ‘+’ button to add infinite dilute solutes, the first 217 from the list

Press ‘Run’

The results for the free energy of hydration (Δ G (kcal/mol) gas → solute) can be compared with experimental values, see this table and next graph.

Vapor pressure

Select Properties → Vapor Pressure Pure Compounds

Enter ‘298.15’ for ‘Temperature Kelvin’

Check the ‘+’ button to add the first 217 from the list

Press ‘Run’

One should take the log₁₀ of the calculated vapor pressure in bar. The results for the calculated vapor pressures can be compared with experimental values, see this table and next graph. Suggestion is to do this only for a few compounds.

Octanol-Water partition coefficients

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Octanol-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add the first 217 from the list to the list of infinite dilute solutes

Press ‘Run’

The results for the Octanol-Water partition coefficients can be compared with experimental values, see this table and next graph.

Hexane-Water, Benzene-Water, and Ethoxyethane-Water partition coefficients

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Hexane-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add the first 217 from the list to the list of infinite dilute solutes

Press ‘Run’

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Benzene-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add the first 217 from the list to the list of infinite dilute solutes

Press ‘Run’

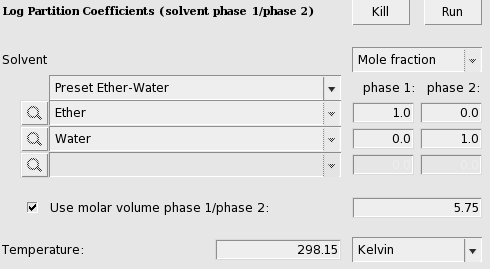

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Ether-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add the first 217 from the list to the list of infinite dilute solutes

Press ‘Run’

The results for the Hexane-Water, Benzene-Water, and Ethoxyethane-Water (Ether-Water) partition coefficients can be compared with experimental values, see this table and next graph.

4.8: COSMO-SAC 2013-ADF¶

In Ref. [481] in the method that is called COSMO-SAC 2013-ADF, parameters were optimized for use with ADF COSMO result files. In this example sigma profiles, partition coefficients, and a binary mixture will be calculated using COSMO-SAC 2013-ADF as is implemented in ADF, which can be compared to COSMO-SAC 2013-ADF results in Ref.[481]. In the compounds window one can include for each compound the experimental pure compound liquid density (kg/L), from which the program can calculated the pure compound liquid molar volumes. If this density is not given the pure compound liquid molar volume will be calculated from its COSMO volume. For COSMO-SAC 2013-ADF this is important since there is a dispersion contribution in the mixture interaction, which depends on these pure compound liquid molar volumes.

Open a new COSMO-RS GUI window (SCM → COSMO-RS).

Select Method → COSMO-SAC

This will make all next calculations use the COSMO-SAC 2013-ADF method instead of COSMO-RS

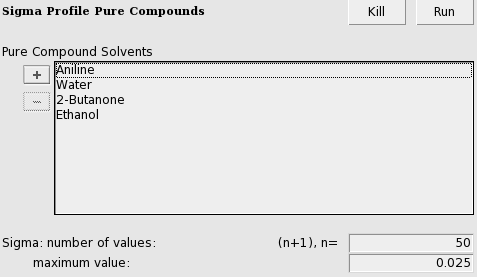

Select Analysis → Sigma Profile Pure Compounds

Check the ‘+’ button to add Aniline, Water, 2-Butanone, and Acetone

Press ‘Run’

Select Graph → Y axes → hydrogen bonding (HB) part sigma profile

The results for the sigma profiles can be compared with Fig. 3c and 3f of Ref. [481].

Select Compounds → List of Added Compounds

Add ‘Methanol’, ‘Ethanol’, ‘Acetone’, and ‘Pyridine’ to this list (if they are not there yet)

Click on the left side ‘Methanol’

Enter ‘0.7918’ in the ‘Density:’ field

Click on the left side ‘Ethanol’

Enter ‘0.789’ in the ‘Density:’ field

Click on the left side ‘Acetone’

Enter ‘0.791’ in the ‘Density:’ field

Click on the left side ‘Pyridine’

Pyridine ‘0.9819’ in the ‘Density:’ field

Select Properties → Partition Coefficients (LogP)

Select ‘Preset Octanol-Water’ in the popup menu next to Solvent

Enter ‘298.15’ for the ‘Temperature’ in ‘Kelvin’

Check the ‘+’ button to add ‘Methanol’, ‘Ethanol’, ‘Acetone’, and ‘Pyridine’

Press ‘Run’

Select ‘Preset Hexane-Water’ in the popup menu next to Solvent

Press ‘Run’

Select ‘Preset Benzene-Water’ in the popup menu next to Solvent

Press ‘Run’

Select ‘Preset Ether-Water’ in the popup menu next to Solvent

Press ‘Run’

The results for the log₁₀ partition coefficients for Octanol/Water (log P_OW ), Hexane/Water (log P_HW ), Benzene/Water (log P_BW ), and Ethoxyethane/Water (log P_EW ), can be put in a Table. These results can be compared with the results in the Supporting information of Ref. [481]. There are some small differences, but note that a different program was used, and thus there will be small differences in the implementation.

The experimental results are taken from Ref. [471].

Select Compounds → List of Added Compounds

Add ‘Acetone’ and ‘Water’ to this list (if they are not there yet)

Click on the left side ‘Acetone’

Enter ‘0.791’ in the ‘Density:’ field

Enter ‘3.7’ in the ‘Pure compound vapor pressure’ field

Enter ‘373.15’ in the ‘at temperature’ field

Click on the left side ‘Water’

Enter ‘0.997’ in the ‘Density:’ field

Enter ‘1.01325’ in the ‘Pure compound vapor pressure’ field

Enter ‘373.15’ in the ‘at temperature’ field

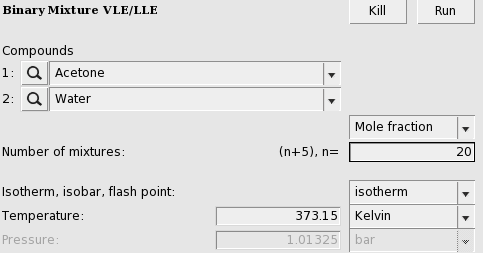

Select Properties → Binary Mixture VLE/LLE

Select ‘Acetone’ for the first compound

Select ‘Water’ for the second compound

Enter ‘20’ in the ‘Number of mixtures’ field

Select Isotherm, isobar, flash point → isotherm

Enter ‘373.15’ for the ‘Temperature’ in ‘Kelvin’

Press ‘Run’

Select Graph → X Axes → x1, y1

Select Graph → Y Axes → total vapor pressure

These VLE results be compared with Fig. 4f of Ref. [481].

4.9: Optimize solvents for LLE of Acetic acid and Water¶

A classic liquid-liquid extraction problem is separating Acetic acid and Water. In this tutorial, we assume that we want to replace a standard solvent for this extraction (n-Hexane) with something more environmentally-friendly. We restrict our problem to the solvents with the fewest issues: Water, 1-Butanol, 2-Butanol, tert-Butyl acetate, Isopropyl acetate, Propyl acetate, and Dimethyl carbonate.

Select Solvent Optimizations → Liquid-Liquid Extraction

Add ‘Water’, ‘1-Butanol’, ‘2-Butanol’, ‘tert-Butyl acetate’, ‘Isopropyl acetate’,

‘Propyl acetate’, and ‘Dimethyl carbonate’ to the list of Solvents

Select ‘Acetic acid’ as first Solute

Select ‘Water’ as second Solute

Use ‘K’ as unit for the temperature

Enter ‘298.15’ in the ‘Constraint Temperature from:’ field

Enter ‘298.15’ in the ‘to:’ field

Press ‘Run’

Notice that Water is repeated because it is both a solute and a solvent in the solvent space.

In this problem, we obtain a mostly aqueous phase and a dimethyl carbonate/tert-butyl acetate phase as the solution. This solvent system provides a distribution coefficient (D) of 232.8. This is a good value for a separation, but it is still worse than the distribution coefficient of the Water/Hexane solvent system (D = 1372.14) by roughly a factor of 6.

Next we add our solvent search space to include the solvents that may not be so environmentally-friendly, but which are also present in our database: Ethanol, 1-Propanol, 2-Propanol, Methanol, Ethyl acetate, Methyl acetate, Methyl isobutyl ketone, Acetone, p-Xylene, Toluene, Isooctane, Cyclohexane, Heptane, and DMSO.

Add ‘Ethanol’, ‘‘1-Propanol, ‘2-Propanol’, ‘Methanol’, ‘Ethyl acetate’,

‘Methyl acetate’, ‘Methyl isobutyl ketone’, ‘Acetone’, ‘p-Xylene’, ‘Toluene’,

‘2,2,4-Trimethylpentane’, ‘Cyclohexane’, ‘Heptane’, and ‘Dimethyl sulfoxide’ to the list of Solvents

Press ‘Run’

As shown, this solvent system has a D value of 1892, better than that of the Hexane/Water system. Removing Cyclohexane from the possible solvents, we still obtain a solution with a D value of 1891. Successively removing the best solvents from the solvent list, we obtain solutions with D values of: 1864, 1645, 1597, and finally 232.8 again. The number of good solutions for this problem lends credence to the idea of using such a solvent selection algorithm in general extraction design.
