Analysis of the VCD spectrum of Oxirane with VCDtools

Step 1. Start ADFinput

For this tutorial we again prefer to work in the Tutorial directory:

Start ADFjobs
Click on the Tutorial folder icon

Next start ADFinput using the SCM menu

Select the SCM → New Input command

Step 2: Create your oxirane molecule

These are the coordinates of the oxirane molecule:

C      -1.44589917      -0.26968372      -0.00000000
C       0.02774960      -0.35459913      -0.00000000
O      -0.64012001       0.88449058      -0.00000000
H      -1.94641916      -0.41741698       0.97962259
H      -1.94641916      -0.41741698      -0.97962259
H       0.50817848      -0.55867470      -0.97957478
H       0.50817848      -0.55867469       0.97957478

Copy-paste these into ADFinput:

Select the coordinates on this page (in your browser)
Paste them in ADFinput

Now you should have the oxirane molecule.

/scm-uploads/doc.2017/Tutorials/_images/oxirane.png

To ensure chirality two hydrogen atoms should be changed to deuterium atoms:

Select two hydrogen atoms diagonally across from each other (holding shift)
Select the Atoms → Details (Color, Radius, Mass) command

The input area changes to display the atom details menu.

Set the masses of both selected Hydrogens to 2 by entering the number after the “M:”
/scm-uploads/doc.2017/Tutorials/_images/oxirane-deuterated.png
Pre-optimize

Step 3: Optimize the geometry

The next step is to optimize the geometry using ADF:

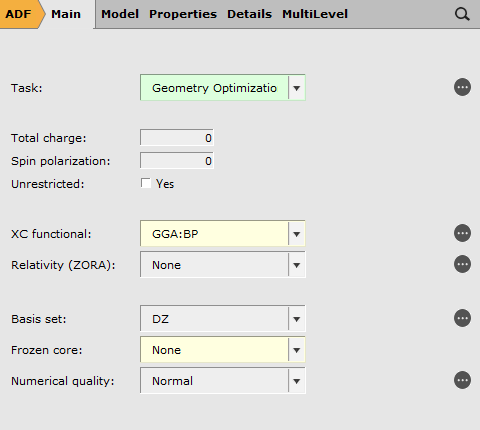

Click on the ‘Main’ tab in the input field.
Select the Geometry Optimization task
Select ‘GGA:BP’ as XC functional
Select ‘none’ for frozen core
/scm-uploads/doc.2017/Tutorials/_images/oxirane-input.png

Now run ADF:

Select the File → Run command
Click ‘Yes’ in the pop-up to save the current input
In the file select box, choose a name for your file (“Oxirane”) and click ‘Save’

Now ADF will start automatically, and you can follow the calculation using the logfile that is automatically shown.

Wait until the optimization is ready (should take about one minute)
Click ‘Yes’ when asked if you want to update the coordinates

Step 4: Calculate the VCD intensities

The next step is to calculate the VCD spectrum with ADF:

Select the Frequencies task
Use the panel bar Properties → VCD to go to the VCD panel
Click the box ‘Calculate VCD intensities:’
/scm-uploads/doc.2017/Tutorials/_images/oxirane-vcdinput.png

Leave the rest of the settings identical to the geometry optimization run the calculation.

Select the File → Run command
Click ‘Yes’ in the pop-up to save the current input
Click ‘Yes’ (this will replace your geometry optimization job)

Wait until the optimization is ready (should take about two minutes)

Step 5: Analyze the VCD Spectra

Next start analyzing the VCD spectrum with ADFspectra. To open the spectra:

SCM → Spectra

Basically, two types of analysis methods are offered by the analysis program VCDtools. First, it can visualize the properties relevant for the VCD intensity, i.e., the Electric and Magnetic Dipole Transition Moments (EDTM and MDTM) and the normal mode motion. Second, a ‘General Coupled Oscillator’ (GCO) analysis can be performed.

Normal modes can be selected either by clicking in the spectrum or by clicking in the ‘Vibrations Window’. After a normal mode is selected the vibration will be shown in the molecule and some details will be given in the right side of the ‘Vibrations Window’.

/scm-uploads/doc.2017/Tutorials/_images/oxirane-spectrum.png
Select normal mode 15, a large negative peak at 3100 wavenumbers
In the ‘Vibration Window‘’ click the header EDTM to sort the atoms accordingly.
Click on the atom with the highest electric dipole transition moment.

Now one of the hydrogens should be selected. In general atoms with a high contribution to the EDTM are important for the VCD intensity. To show this a GCO analysis will be performed in the following.

Select the VCDtools → Default Visualization for GCO Analysis
/scm-uploads/doc.2017/Tutorials/_images/oxirane-scaleedtm.png

The atom sizes are now scaled by their EDTM and the nuclear displacement vectors are shown as arrows. To scale the size of these arrows, use the “up” and “down” keys. Using these visualization settings, we immediately see that two of the C-H groups are important for the VCD signal in this normal mode. You can change which vectors are visualized, the phase of these vectors and the scaling of the atoms by clicking the buttons under need the molecule. The buttons that are active will have a glow effect.

The next step in a GCO analysis is to select VCD active fragments:

Select one of the important C-H groups by pressing the ‘shift button’ while clicking on the atoms.
Select the Regions → Set Selection As → New Region command
Select the other important C-H group
Select the Regions → Set Selection As → New Region command again
/scm-uploads/doc.2017/Tutorials/_images/oxirane-regions.png

The two important regions will be highlighted by transparent red and green spheres. Additional tools for setting up the regions can be found under the “Regions” menu.

Select the Regions → Save Current Regions command
Enter a Name (for example ‘NM15’)
Press the ‘Return’ -key or press save

The current regions will have been saved in the ‘.results’ folder in the file ‘Regions.txt’ and can be loaded by the command: Regions → Load Regions → ‘Name’.

To determine whether the coupling between two important C-H groups is important to the rotational strength it can be decomposed using the GCO formalism.

Click the GCO analysis button with the text ‘GCO’
/scm-uploads/doc.2017/Tutorials/_images/oxirane-vcdtoolsout.png

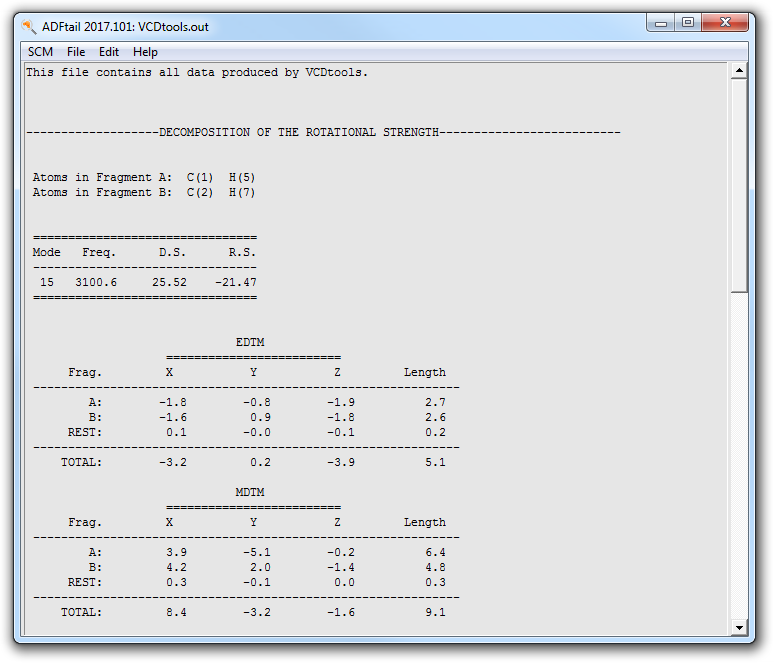

An ‘ADFtail’ window will now have opened showing the ‘VCDtools.out’ file. In this file all output from VCDtools is stored. Each output entry begins by defining the settings such as the selected regions and normal modes. For normal mode 15 we see that indeed the mayor part of the VCD signal is caused by the GCO interaction between the two selected regions. The rest of the molecule barely contributes and also the VCD signal from the individual fragments is insignificant. We have thus succesfully determined the source of the VCDintensity for normal mode 15.

If needed arrows can be shown inside the molecule to indicate the EDTM and the MDTM. This can be done per atom or per regions. For example:

Select the VCDtools → EDTM Vectors (regional) command

Two arrows will have appeared at the geometric centers of the regions displaying the relative size and direction of the EDTMs.

Under the “VCDtools” menu there are many other commands. For example, VCDtools can guess the best fragments for GCO fragments and can compute the normal mode localization on the selected regions within the molecule. Feel free to test them out.
