Vibrational frequencies and IR spectrum of ethane

Step 1: Start ADFinput

For this tutorial we again prefer to work in the Tutorial directory:

Start ADFjobs
Click on the Tutorial folder icon
Start ADFinput using the SCM menu

Step 2: Create your ethane molecule

Next we create an ethane molecule:

Select the C-tool
Click once to make a carbon atom
Click again to make a second carbon atom
Select Atoms → Add Hydrogens
And do it again: Atoms → Add Hydrogens
Pre-optimize
Click the Symmetrize button (the button with the star, on the bottom toolbar)

You need to add hydrogen twice: the first time one carbon atom was selected. Thus, the ‘Add Hydrogen’ command added the hydrogen to that selected atom only. By repeating the ‘Add Hydrogen’ command the hydrogens are added in all possible places.

The symmetrization should have enforced perfect D3d symmetry, using the Symmol program. The Symmol program has been developed by Pilati and Forni, see the balloon help on that button for details..

Step 3: Optimize the geometry

Now optimize the geometry using ADF, as in the second tutorial:

Select the Geometry Optimization task
Select File → Run
Save your input with a nice name (‘ethane’)
Wait for the calculation to finish (check the logfile)

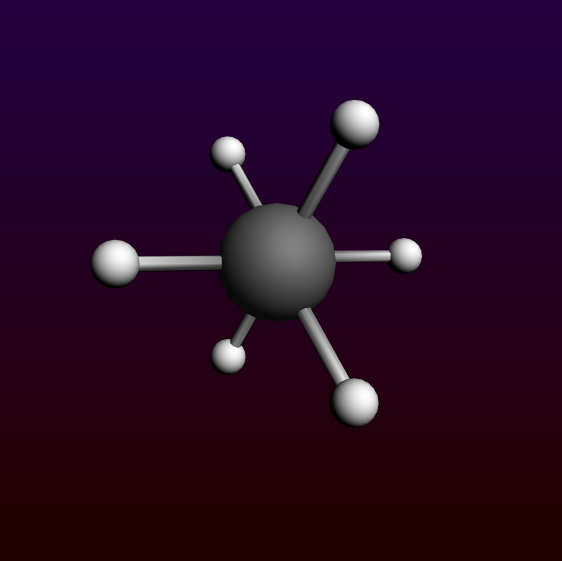

In the dialog that appears, click Yes to import the optimized geometry
/scm-uploads/doc.2017/Tutorials/_images/t3-3-ethane.png

Step 4: Calculate the vibrational frequencies of ethane

Now we will set up and run the frequencies calculation. It is important to start with the optimized structure, so make sure you did import the optimized coordinates (the last step of the previous instructions).

Select the Frequencies task
/scm-uploads/doc.2017/Tutorials/_images/t3-4-main.png

For the tutorial we will use the default XC potential. For better results you should select a better XC potential.

Select File → Run
Click ‘OK’ to save over the previous version
Click ‘Yes’ when ADFjobs warns that results are already present
Wait for the calculation to finish

Step 5: Results of your calculation

Logfile: ADFtail

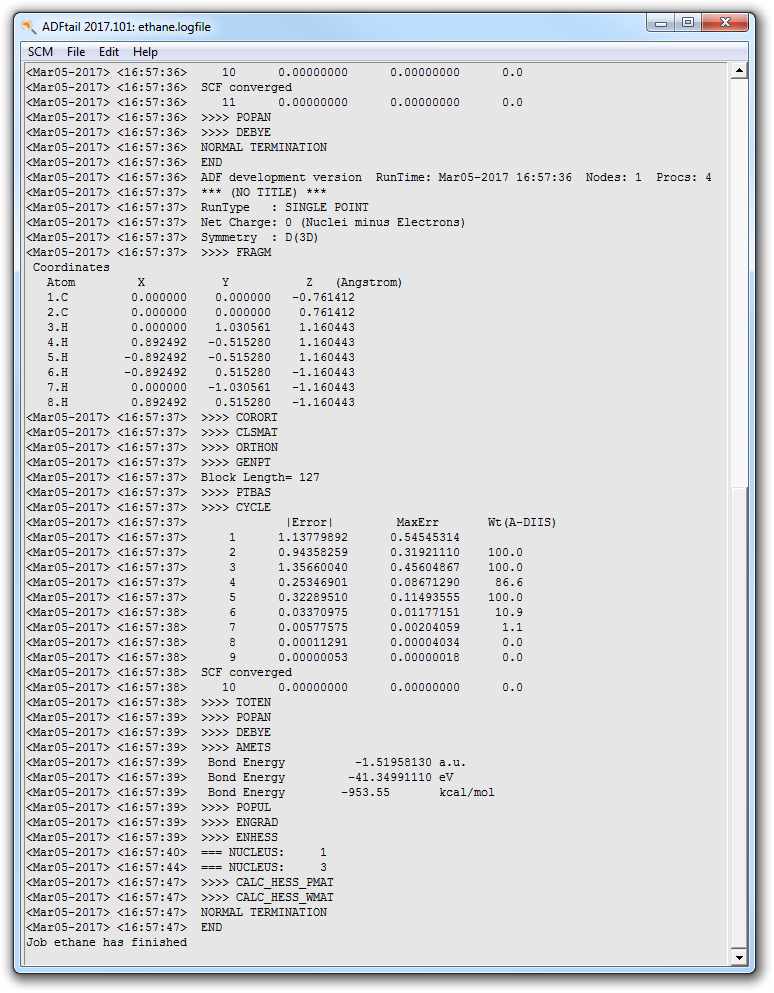

When the calculation is finished the end of your logfile will look something like this:

/scm-uploads/doc.2017/Tutorials/_images/t3-5-logfile.png

At the end ADF calculates the force constants for the vibrations.

IR-spectrum (vibrational spectrum): ADFspectra with normal modes and ADFmovie

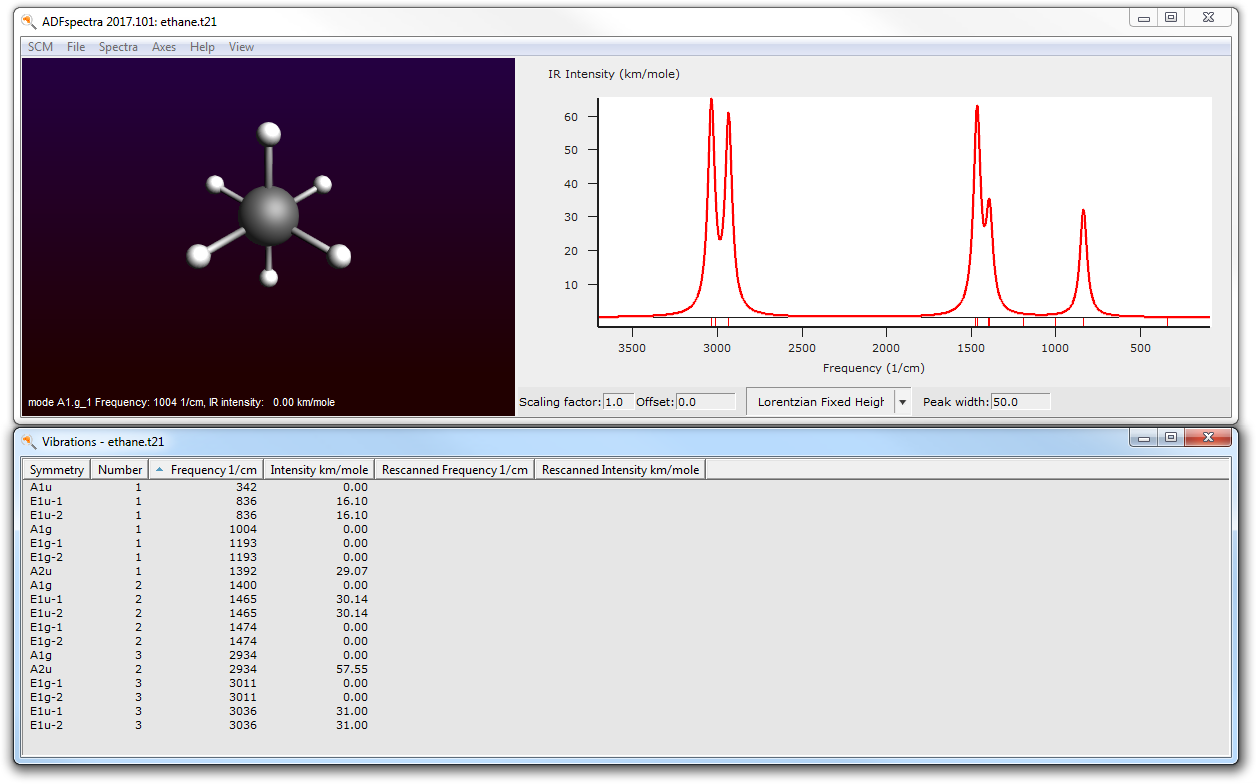

Select SCM → Spectra
/scm-uploads/doc.2017/Tutorials/_images/t3-5-spectra.png

On the left side of the window the molecule (Ethane) is shown.

On the right side the IR spectrum is shown.

Tip

You can:
- save a picture (of the IR spectrum) as a postscript file: File → Save Postscript....
- export the xy coordinates of the spectrum to a plain text file: File → Export XY Values....
- export the peak positions and intensities to a plain text file: File → Export XY Peaks....

Below the spectrum window a table is shown with details about the peaks.

You can click on a peak in the spectrum, or select a line in the table:

Click on the highest peak in the spectrum

The atoms of the molecule should be animated according to the selected normal mode.

/scm-uploads/doc.2017/Tutorials/_images/t3-5-normalmode.png

The corresponding normal mode should be shown on the left.

To view another normal mode, most conveniently use the left and right arrow keys to move through them. This only works after clicking in the graph or molecule window. Another option is to select the mode in the table and use the up/down arrow keys.

You can make the displacements larger or smaller via menu commands, or via the up and down arrow keys on the keyboard (after clicking in the graph or molecule window).

To show the normal mode as vectors:

Click in the molecule window to make sure it has input focus
Use arrow up key repeatedly to make the displacements larger
Use arrow down key repeatedly to make the displacements smaller
Use the left and right arrow keys to loop through the normal modes

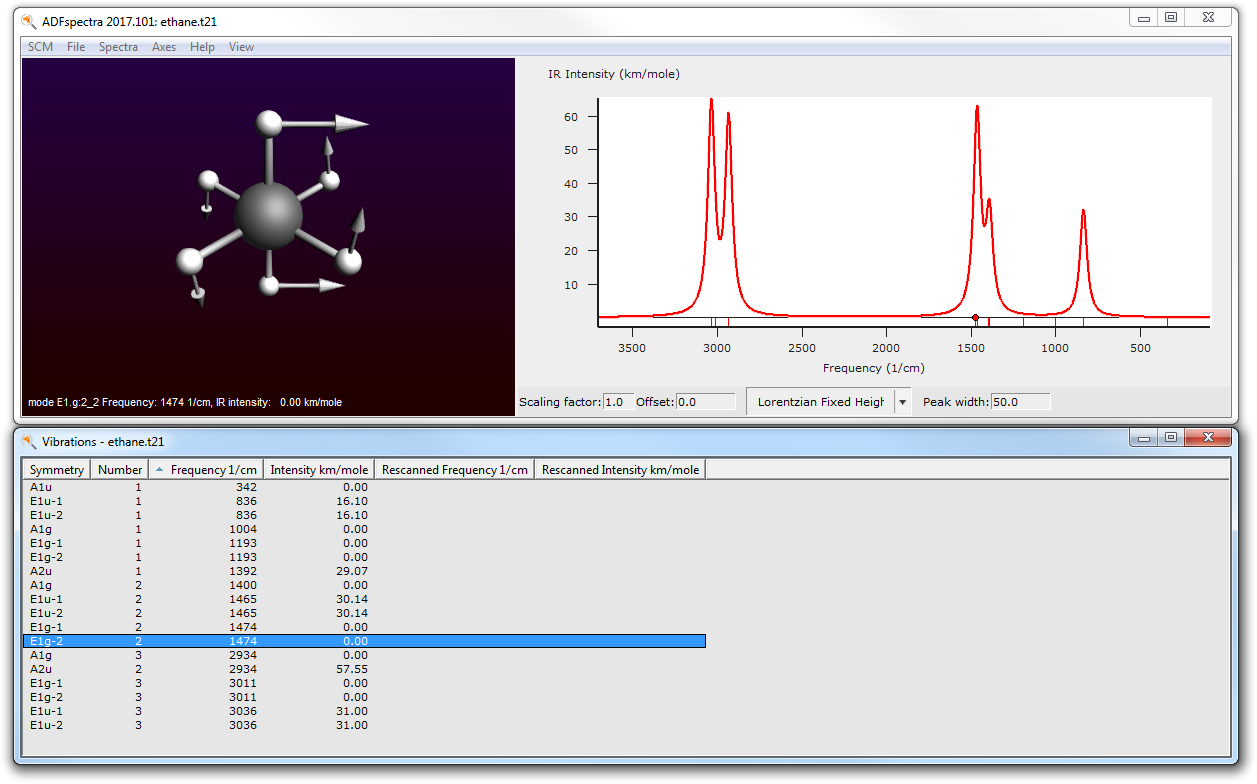

Use the View → Displacement Vectors to visualize the normal mode with vectors
/scm-uploads/doc.2017/Tutorials/_images/t3-5-normalmodevecs.png

You can make the vectors larger or smaller using the same ctrl/cmd-L/K, or arrow up and down.

Another option is to show the normal mode in ADFmovie:

Use the View → Open Mode In ADFmovie

If a mode is visible in ADFmovie you have some extra advanced options. For example, to make an mpg movie showing the mode.

We are done with this tutorial, so close all open ADF-GUI windows:

SCM → Quit All
